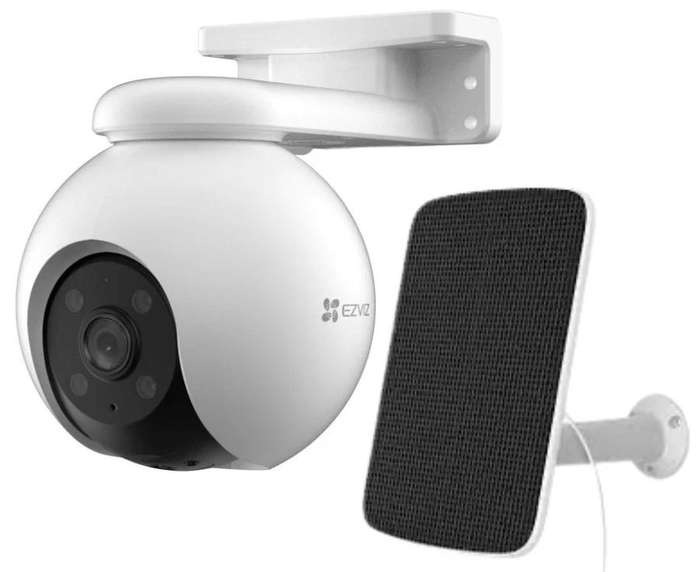

4G CAMERA KIT INCL PANEL - EB8KIT
Ezviz EB8 4G 2K
Pan & Tilt 4G Battery Camera
Specifications
Model: CS-EB8 (3MP,4GA)
Camera
Image Sensor: 1/2.8 3-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed_ Self-Adaptive Shutter
Lens: Viewing Angle_ 100° (Diagonal), 83° (Horizontal), 44° (Vertical)
PT Angle: Pan_ 340, Tilt_ 65°
Day & Night_ IR-Cut Filter with Auto Switch
DNR: 3D DNR
Night Vision Distance: IR 15 m Color Night Vision 15 m
Video & Audio
Max Resolution: 2304 x 1296
Frame Rate: Max. 15fps; Self-Adaptive during Network Transmission
Video Compression: H.265 / H.264
Video Bit Rate_ Quad-HD; Full- HD; Hi-Def. Adaptive Bit Rate
Audio Bit Rate: Self-Adaptive
Max. Bitrate_ 1.5 Mbps
Network
Frequency Bands
EU: LTE FDD: B1/B3/B7/B8/B20/B28
LTE TDD: B38/B40
LA:LTE FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28 / B66
LTE TDD_ B38 / B40
Function
Smart Alarm_ Smart Human Motion Detection
GPS: Supports
Two-Way Talk: Supports
General Function_ Anti-Flicker, Heartbeat, Password Protection, Watermark
Storage
Local Storage: Supports MicroSD Card (Up to 512G)
Cloud Storage_ EZVIZ Cloud Storage
General
Operating Conditions_ -20 °C to 50 °C (-4 °F to 122 °F), Humidity 95% or less (non-condensing)
IP Grade_ IP65
Power Supply_ DC 5V/2A (Adapter needs to be purchased separately)
Battery Capacity_ 10400 mAh
Power Consumption: Max. 10W
Product Dimensions: 183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch)
Packaging Dimensions: 216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch)
Weight Net Weight_ 835 g (26.8 Oz) With package_ 1072 g (34.4 Oz)
In The Box
EB8 4G Camera
Drilling Template
Type C Cable
SIM Card Adapter
Screw Kit
Quick Installation Guide
Regulatory Information
Quick Start Guide
Certifications: CE / WEEE / RoHS / UKCA/ REACH
