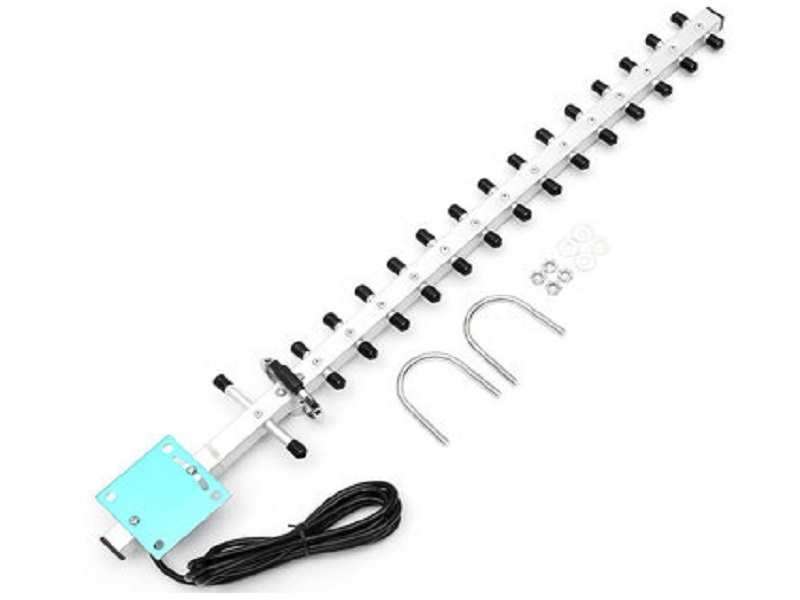

Use this Antenna if you have poor 4G / LTE / 3G Signal reception inside your home from your router normal small Antenna. It is supplied with a 7m Cable but we can provide extension cables.
Features:
* Wide band operation range 600-2700Mhz, work with all carriers & all frequency bands.
* Omni directional coverage
* Light weight and low profile design, good performance
* SMA male connector: this connector is compatible with many model routers
* Improved signal: can get high gain signal in weak signal environment
* Simple installation
Specifications:
Model | TZD-BM0627Z03-117 | |||
Freq.Range-MHz | 600-800 | 800-960 | 1710-2700 | |
Gain-Dbi | 13DB | 3DB | ||
VSWR | ?2.0 | ?2.0 | ||
Impedance-? | 50 | |||
Polarization | Vertical | |||
Max.power-w | 50W | |||
Connector | SMA or customized | |||
Dimensions-mm | 172*164*52mm | |||
Weight-KG | 314g | |||
Mounting | bracket | |||
Cable | RG174 3M 5M optional | |||
Cable length | 3M/5M optional | |||
Color | sliver | |||
Working temperature | -40~60? | |||
