Features:
- Low consumption solar poweredbattery powered IP camera with rechargeable battery. Recharge using USB cable or Solar Energy.
- 4G SIM card. Check the camera video on your smart phone anytime, anywhere.
- IP66 Waterproof is compliant for outdoor use.
- Support dual audio, PIR, motion detection and alarm push.
- Support WIFI, app use and hot spot.
- 30m IR distance.
- 105-degree view angle.
- Support 128GB TF card recording, support for cloud storage.

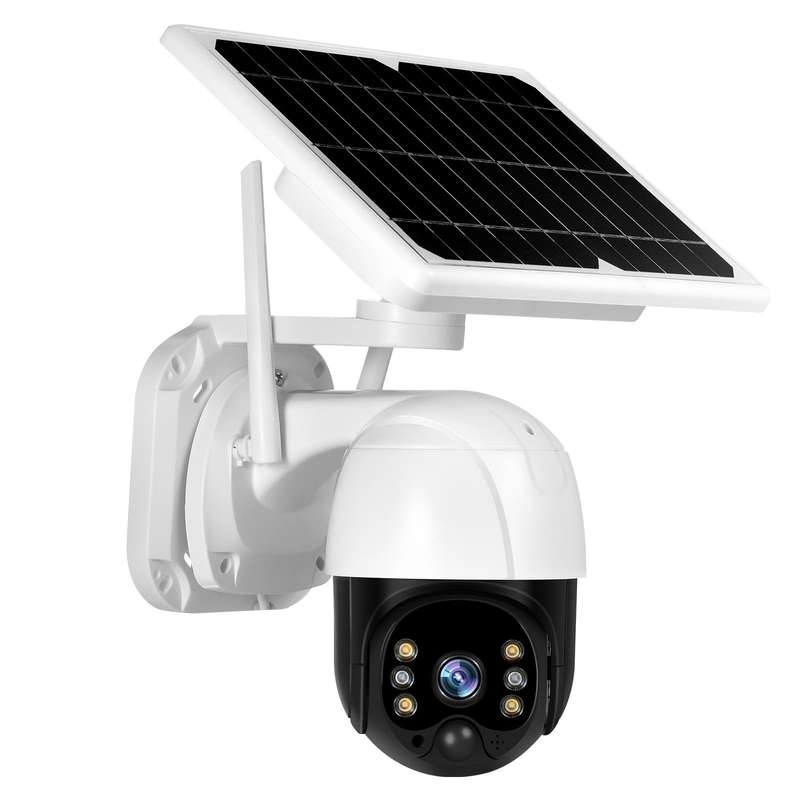

product name: Solar 4G camera
Induction principle: HMD (Human Motion Detection)
main chip: Junzheng T21Z
sensor: Crystal F23 2 million 12.7" CMOS sensor
4G module:Mainland China Edition: ZTE Micro V3 Overseas Edition: Qualcomm SIM7600 Series
4G frequency band: Support China, America, Europe, Southeast Asia, Middle East and Africa full band 4G (4G module specifications are different)
Network protocol: TCPIP, HTTP, TCP, UDP, SMTP, DHCP, DNS, P2P
SIM card: Nano SIM
Effective Pixels: 2 million
Resolution: 19201080
focal length: 4mm (Another 2.8mm6mm8mm12mm optional)
Video encoding:H.264
Shooting distance: 20-30 meters
Filming angle: Around 120
Response time: 0.6 seconds
Solar panel power: 7W (5.5V1000mA)
Rated charging current: 1000mA
Night effect: Full-color night vision: Starlight level (color picture) effective irradiation distance 15-25 meters
Infrared night vision: 850nm infrared, effective irradiation distance is about 7-15 meters
White light power: 1.5W LED 0.75W2pcs
Infrared power: 1W LED 0.5W2pcs
storage: Support TF Card 4GB-128GB and cloud storage
storage: The 32G card can store about 64 days (about 9000 videos can be stored, each shooting starts for 30 seconds, and 100 times per
day). After the storage is full, it will be overwritten from the earliest shooting day
Sensing distance: 0-15 meters
Induction angle: 120
Operating temperature: -30? to 60?
Working humidity: 0%-90%RH
power supply: Photoelectric dual-use, solar + built-in lithium battery power supply
Standby power consumption: About 0.05W
Working power consumption: ?2W during the day, ?2.75W at night
waterproof level: IP66
Accessories: Host1, bracket1, screw bag1, manual1, USB charging cable
Optional accessories: External solar panel, charging extension cable
Package dimensions
28.324.5*12.5CM
Package weight
1.55KG
