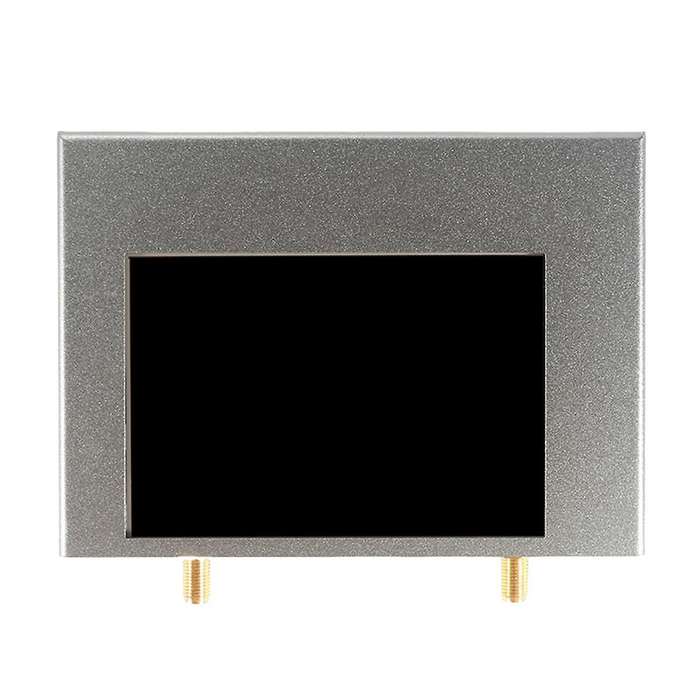

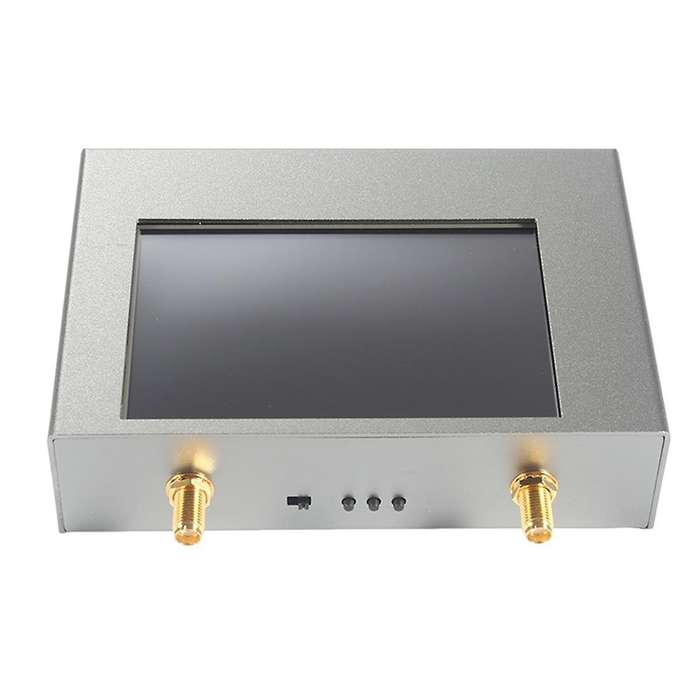

4G Vector Network Analyzer High Dynamic Range 50khz-4ghz V2 Plus4 Multifunction Analyzer

Features: 1.4ghz Second Generation Vector Network Analyzer. V2 Plus4 Is The New Hardware Version.2.4 Inches Display; 4Ghz Frequency Range3. Scanning Speed Increased By 4 Times (400 Points\/Second); Up to 90DB Dynamic Range (1Ghz)4. Up to 80DB Dynamic Range (3Ghz)5.1024 Points Scan (-Qt Software)Description.1.Measurement Frequency Range: 50Khz - 4Ghz2. System Dynamic Range: 70db (To 3ghz, After Calibration, without Averaging)3. System Dynamic Range: 80db (To 3ghz, After Calibration, 5x Averaging)4. System Dynamic Range: 90db (To 1ghz, After Calibration, 20x Averaging)5.S11 Noise Floor (After Calibration): -50db (To 1.5ghz); -40db (To 3ghz)6. Scan Rate: 400 Points\/Second (F 140 Mhz), 200 Points\/Second (F Less than 140 Mhz)7. Number Of Scanning Points: Adjustable, Maximum 1024 Points (Maximum 201 Points On The Device Screen)8.Power Supply: Usb9. Rf Port: Sma (Not Rp-Sma!)10.Usb Interface: Usb Type-B11.Display Screen: 4-Inch Tft (480 X 320)12.Battery: with 3200mah Lithium Battery13.Port 2 Return Loss: 15db (To 3ghz), 20db (To 1.5ghz)14.Display Tracking: 4, Mark: 4, Setting Save: 715. Computer Software Compatible: Linux, Windows (7 Or Above), OsMaterial: ABSColor as shownPackage Contents:1 x VNA Host2 x 30cm SS405 RF Cable1 x Solt Calibration Piece1 x USB Cable1 x Touch Screen PenNote:Different Batches May Have Differences In Product Appearance, Color, and Printed Characters, Which Will Not Affect The UseOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
