1. Built in high performance RTOS operating system and audio decoder chip, support DTS / AC-3.
2. Super fast start time about 3 seconds.
3. HDMI iutput, 1 x CEN, 1 x SW, 1 x FL, 1 x FR, 1 x SL, 1 x SR, 3.5mm headphone port.
4. HDMI input resolution: Up to 3840x2160 30Hz; 4096x2160 30Hz.
5. HDMI to achieve audio signal decoding synchronization. There are PASS / 2.0CH / 5.1CH three audio mode options.
6. Support 6CH volume synchronous adjustment.
7. Auto decode AC-3/DTS (LPCM/PCM/RAW) input signal without any action.
8. Compatible with network player, HDTV, Blu-ray DVD, DVD, PS4, Xbox 360, DM500S, DM800HD etc.
9. Small size and metal case, anti-interference.
10. Adopt 6CH RCA / 3.5mm headphone port output, convenient and efficient in use.
Specification:
General
Material
Metal
Input Port
1 x HDMI
Interface
1 x HDMI IN
,
1 x SPDIF
,
1 x 3.5mm audio jack
HDMI Resolution
2160p@30Hz, 1080P@50/60Hz, 1080i, 720P, 1576i, 480P, 480i
HDMI Version
V1.4b
Power Supply
DC 5.0V / 2.0A
Video Color Format
24bit
,
30bit
,
36bit
Video Bandwidth
340MHz
Frequency Bandwidth
10.2Gbps
Audio Format
DTS
,
MP3
,
AC3
,
WAV
,
WMA
,
AAC
,
ALAC
,
FLAC
,
APE
,
OGG
,
M4A
Input Cable Distance
=<7m, AWG26 standard cable HDMI
Output Cable Distance
=<8m, AWG26 standard cable HDMI
Input/ Output TMDS Signal
0.5-1.5Volts p-p (TTL)
Input/ Output DDC Signal
5Volts p-p (TTL)
SNR
120dB
Frequency Response
20Hz~20KHz
Operating Temperature
0 ~ 70 Degree Celsius
Storage Humidity
5 ~ 90 Percent RH (No condensing)
Size
13.5*9.5*2cm
Weight
241g

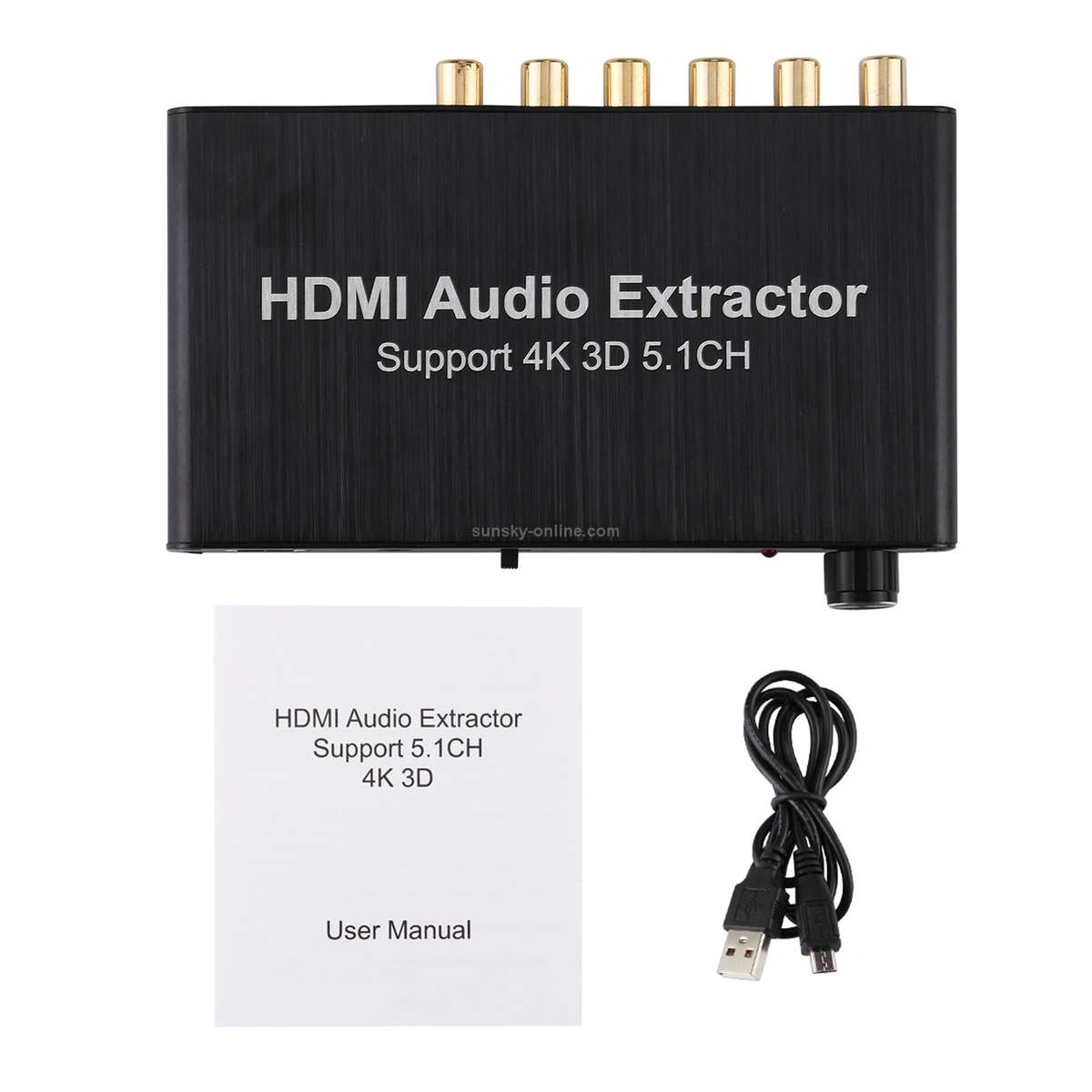

Package Include
Package Contents
1 x Converter
1 x USB Cable
1 x User Manual
