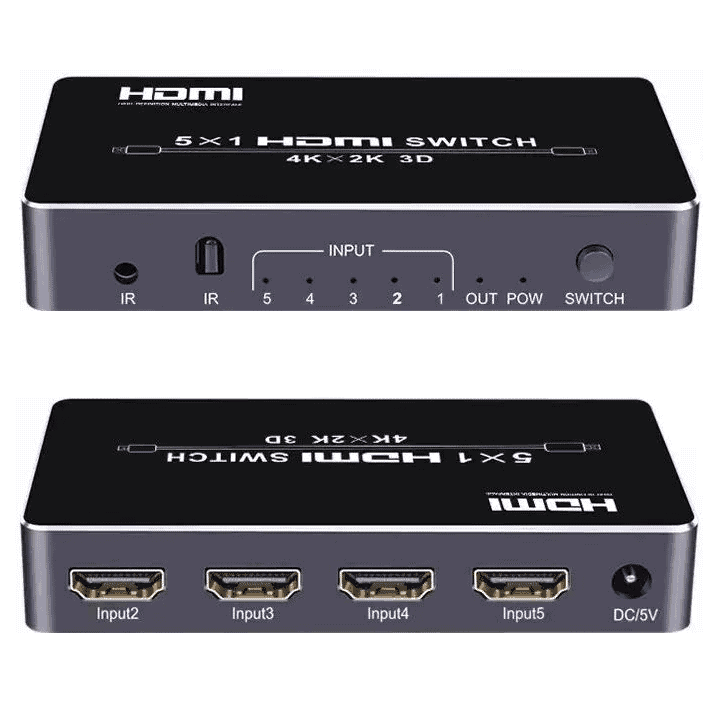

4K HDMI Switcher, HDCP2.2, 5Port, HDMI2.0, 5IN 1OUT

HDMI Switcher 4K 5Port, HDMI2.0, HDCP2.2, 5IN 1OUT, Latest Spec, Henrac Tech

Compact HDMI Switch for the Purist with the very latest specification 5-In to 1-Out, Supports long HDMI cables on both the inputs and output and all resolutions up to 4K Ultra HD (3840 x 2160).

Finally a compact 'HDMI Switcher' that supports all the very latest specifications for the individual who is serious about Audio Visual quality. Do not compromise your viewing experience with this 5 Port just released HDMI switch (5x HDMI selectable to 1 HDMI output).

Purpose

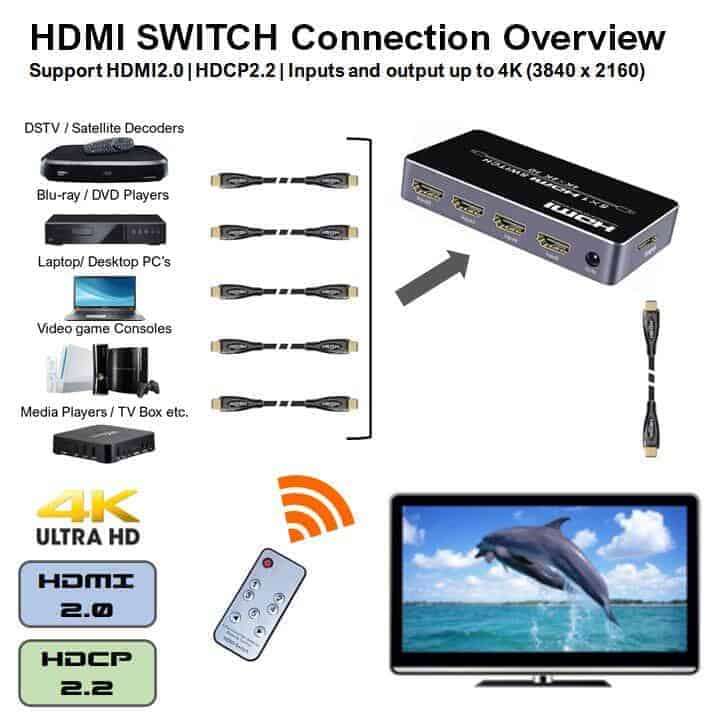

• If you have more HDMI source devices than your TV, monitor or projector has input ports then this device will effectively add 4 more ports all capable of switching 4K.
• You can connect any number of HDMI input devices from 1 to 5. If you have 3 then you will be left with 2 spare inputs for future use.

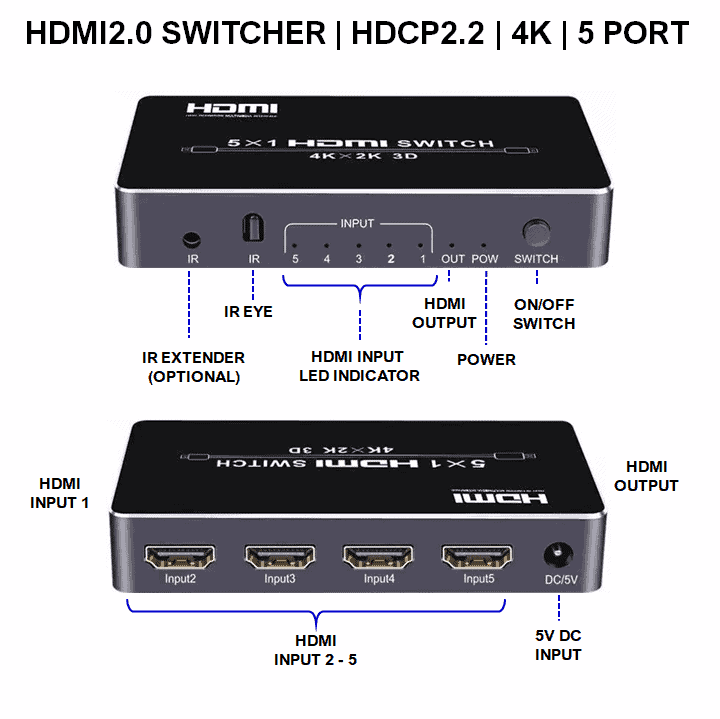

Remote Control

• The unit has both manual and IR remote input selection options
• If due to your installation the switch itself is completely hidden from view an 'optional remote IR extension RX eye' can be purchased separately (port available on the unit). In this case only the extension eye needs to have LOS (line of sight) with the remote control itself.
• Note: The IR remote is powered by a lithium button battery (CR2025) which is NOT included.

Specifications

• HDMI v2.0: Yes
• HDCP v2.2: Yes
• HDMI Resolution: 480p, 576p, 720p, 1080i, 1080p, 2160p @ 24,30,50 & 60fps
• Video bandwidth: 600Mhz HDMI v2.0
• Baud Rate: 18Gbps HDMI v2.0
• Input video signal: 5-1.5 volts pp
• Input DDC signal : 5 volt pp (TTL)
• Power Consumption: 75W (350mA @ 5V DC)
• Enclosure:             Aluminium alloy

What's in the Box?:
1x HDMI 4K Switch 5 port
1x Remote Control (CR2025 battery NOT included)

1x User Manual
