4K HDMI to SDI with Power adapter Mini 3G HD SD-SDI Video Micro Converter Adapter with Audio 4K HDMI to SDI with Power adapter Mini 3G HD SD-SDI Video Micro Converter Adapter with Audio 4K HDMI to SDI with Power adapter Mini 3G HD SD-SDI Video Micro Converter Adapter with Audio 4K HDMI to SDI with Power adapter Mini 3G HD SD-SDI Video Micro Converter Adapter with Audio
4K HDMI to SDI with Power adapter Mini 3G HD SD-SDI Video Micro Converter Adapter with Audio 4K HDMI to SDI with Power adapter Mini 3G HD SD-SDI Video Micro Converter Adapter with Audio 4K HDMI to SDI with Power adapter Mini 3G HD SD-SDI Video Micro Converter Adapter with Audio 4K HDMI to SDI with Power adapter Mini 3G HD SD-SDI Video Micro Converter Adapter with Audio

4K HDMI to SDI with Power adapter Mini 3G HD SD-SDI Video Micro Converter Adapter with Audio

20 available / new
R624.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643780449
I. Introduction

The Micro HDMI to SDI Converter allows HDMI signals to be shown on two SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on two SDI display.



II. Features

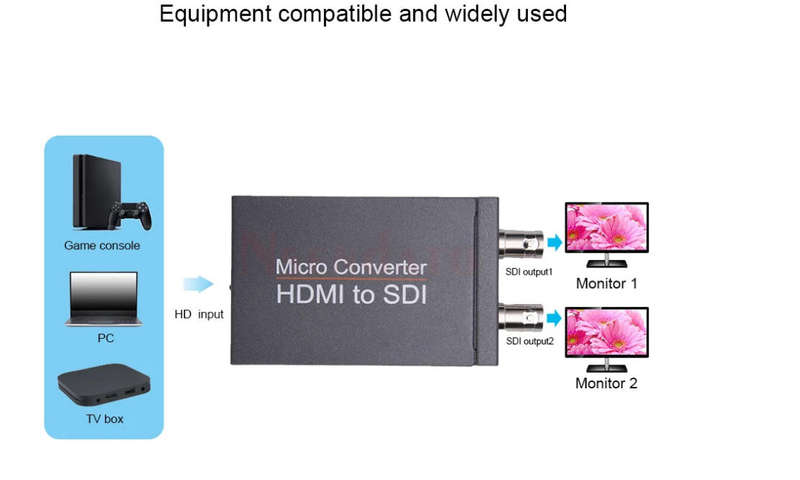

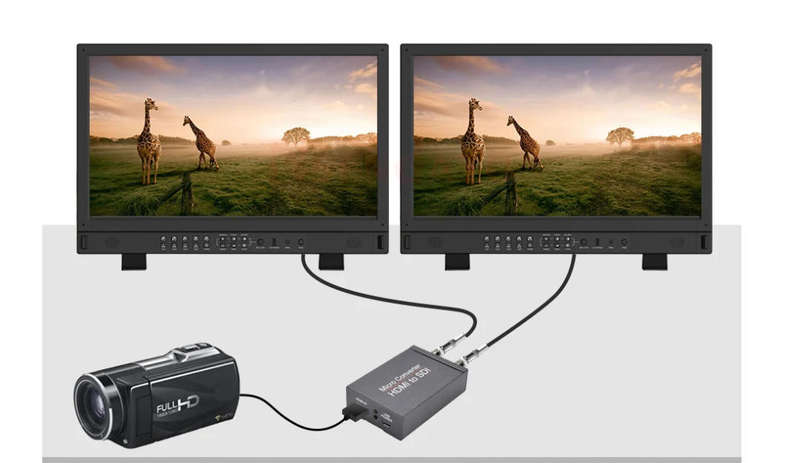

Shows HDMI source on two SDI display.
SDI interface operates at bitrates of 2.970 Gbit/s, 1.485 Gbit/s.
Supports HDMI input timings: 480i, 576i, 720p, 1080i, 1080p.

Converts HDMI signal to SDI:
720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s)
1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s)
Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)


III. Package
HDMI to SDI Converter
USB Power Supply Cable
Operation Manual



IV. Specifications

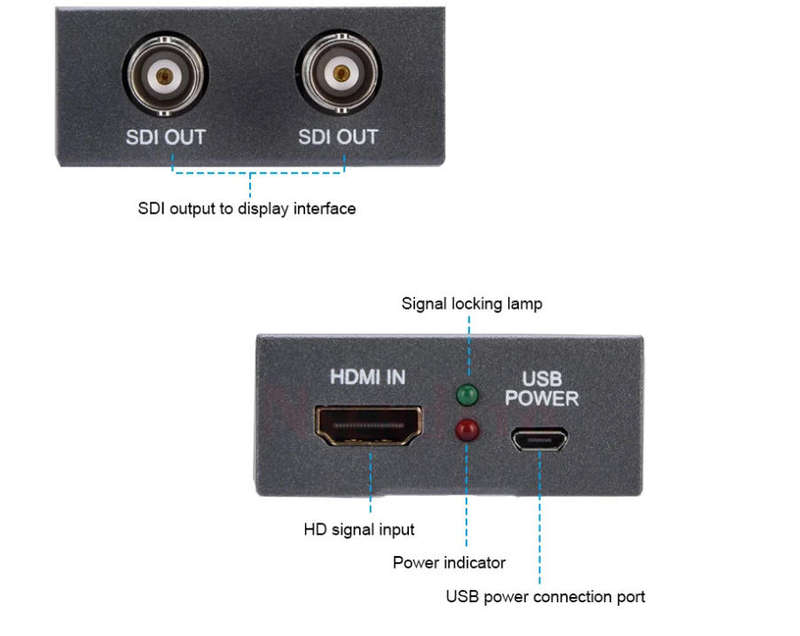

Input Port 1 x HDMI
Output Port 2 x BNC (HD-SDI/3G-SDI)
Power Supply DC 5V
ESD Protection Human body model ±8kV (air-gap discharge) ,
±4kV (contact discharge)
Dimension 97mm x55mm x 23 mm
Weight 130g
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
elative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 5W
