4K Ultra HD HDMI ARC Audio Extractor with Digital Audio Converter (DAC)

4K Ultra HD HDMI ARC Audio Extractor with Digital Audio Converter (DAC)

This HDMI audio return converter can return audio from a HDTV that supports ARC Audio Return function to the converter's optical, coaxial, 3.5mm headphone jack or via HDMI/ARC interface, and supports optical or coaxial digital audio signal conversion.

It is mostly used from HDTV's HDMI port  to a Soundbar, Home Theatre system, Digital Receiver or any audio device with Optical, Digital Coaxial or Analogue RCA inputs.

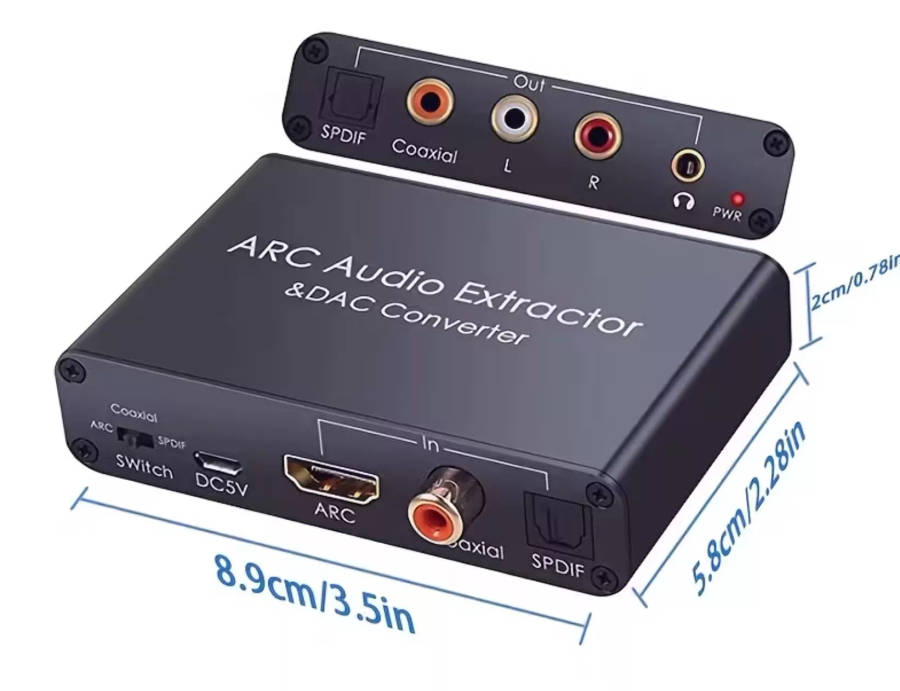

The HDMI ARC Audio Extractor has One HDMI Input Port, Toslink SPDIF (Optical) digital audio input and output (2.0CH/5.1CH Mode), Coaxial Digital 75 Ohm Input and output, 3.5mm stereo audio output(2CH Mode) as well as RCA stereo Output.

Please note this product is supplied with a USB Power cable (Either Micro USB or USB C Depending on what the device requires) and does NOT INCLUDE A 220v to USB Wall Socket Power adapter. The unit must be powered from a nearby USB Port on a HDTV/Projector/Digital Receiver or alternatively a 220v Wall Adapter to 5v USB Charger/Power supply similar to Slimline 5 Volt 2 Amp USB Wall Charger/Power Supply

Special features:

• Supports HDMI ARC, optical fiber, coaxial input switching function.
• Supports optical toslink, coaxial, RCA stereo and 3.5mm stereo headphone output.
• Optical Toslink and coaxial output interface supports 5.1 Dolby Audio.

Product parameters:

• Case Material: Aluminum Alloy
• Color: Black
• Power interface: USB Type C
• Maximum working current: 100mA
• Working environment temperature: -10 to +55 °C.
• Storage temperature: -20 to +60 °C.
• Working humidity: 10~90%RH (non-condensing)
• Storage humidity: 5~95%RH (non-condensing)
• Case size: 90 x 73 x 21 mm.
• Weight: 92g

Package includes:

• 1 x Converter
• 1 x USB Power Cable
• 1 x User Manual
