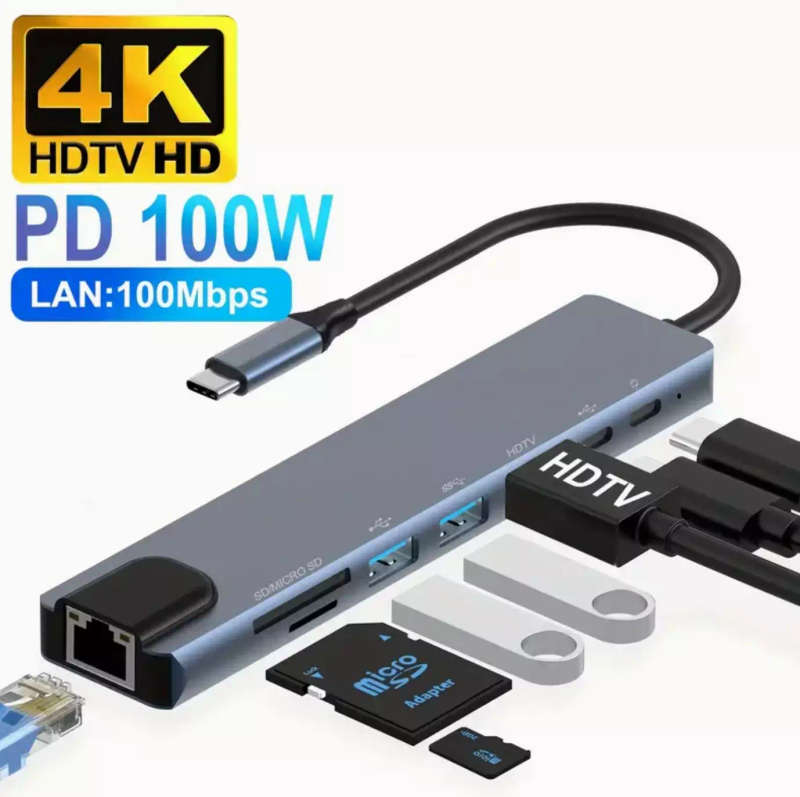

4K UltraHD 8 in 1 USB Type C Port Replicator | USB Docking Station | HDMI Video Output | Network ...

4K UltraHD 8 in 1 USB Type C Port Replicator | USB Docking Station | HDMI Video Output | Network Port

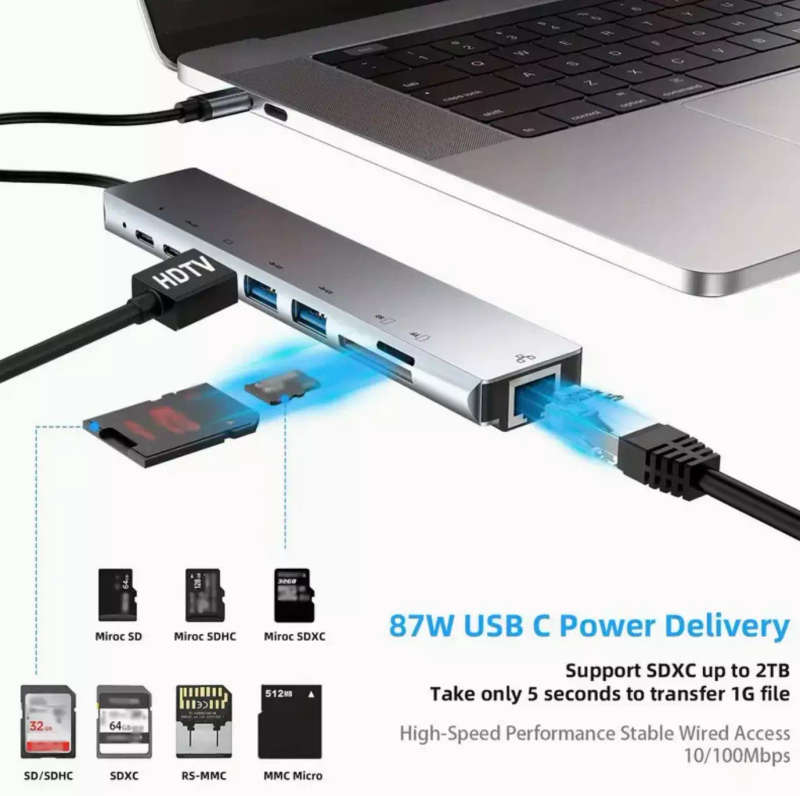

This 8-in-1 Multi-function dock station can extend the connection of a notebook to USB peripherals, Ethernet network and connect to a HDMI display. The perfect solution for USB-C port expansion.

To get an understanding of USB Connectors Wiring & Data Transfer Capabilities please see the blog at USB 1.1 vs USB 2.0 vs USB 3.0,3.1, 3.2 Gen1/Gen2 vs USB 4.0 | USB C vs Thunderbolt 3 vs Thunderbolt 4

Features

• 8-in-1 Multi-function Docking Station / Port Replicator
• Support resolution up to 4K UltraHD at 30Hz output on HDMI, Lower resolutions 30Hz.
• Plug & Play easy to use
• Compatible for Mac OS system, Windows, Android & Linux
• Compatible with most USB-C devices (MacBook / Pro 2015, 2016, 2017 / ChromeBook Pixel / Microsoft Surface Pro4 / Asus Zen Aio / HP Pavilion x2 / Lumia 950/950XL / Samsung S8, Galaxy Note8, Galaxy Note9, Huawei Mate 10, P20 / Dell XPS12 XPS13 XPS15 / Acer Aspire R13 /V15, S5-391-6419 Nitro / V17 Nitro, Predator 15/17, Asus ROG G752VL / GT752VT / GT752VY / GT700VO, ZenBook Pro UX501VM / CLEVO P750DM / P770DM / P870DM, Lenovo ThinkPad P50 /P70, MSI GS40 / GS60 / GT72 / GT80 / Vortex / WS60 / WS72, VAIO S11)Specifications

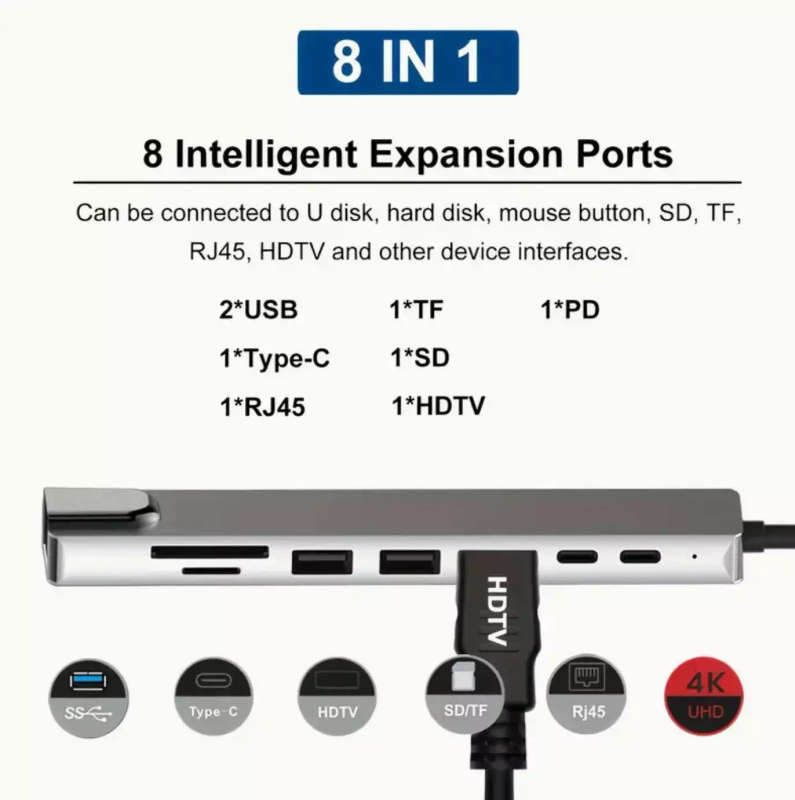

Specifications

• 1 x HDMI 4K Ultra HD port @ 30Hz

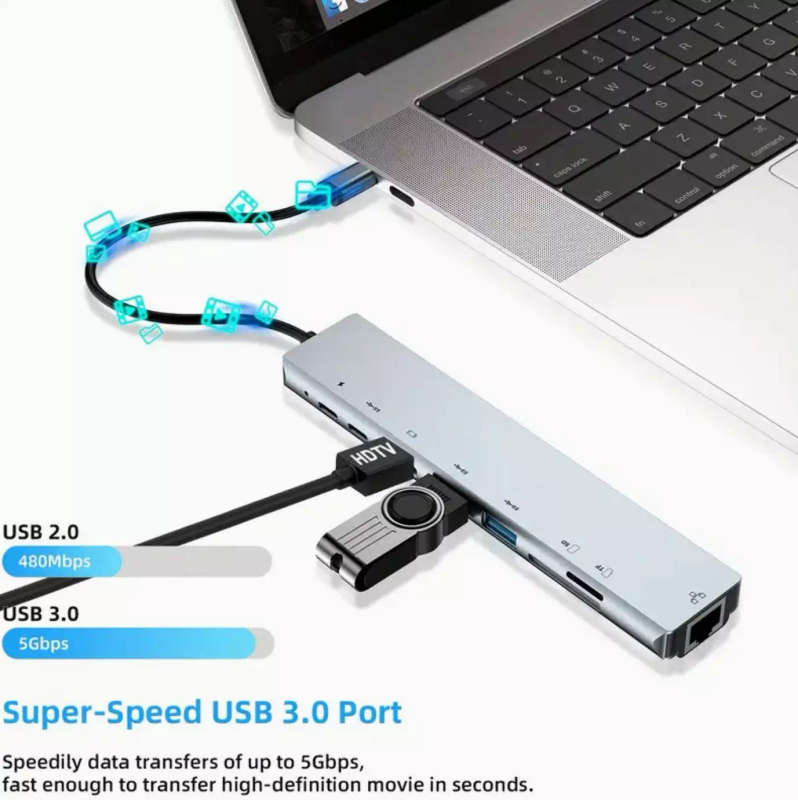

• 2 x USB 3.0 ports
• 1 x USB Type-C for Data

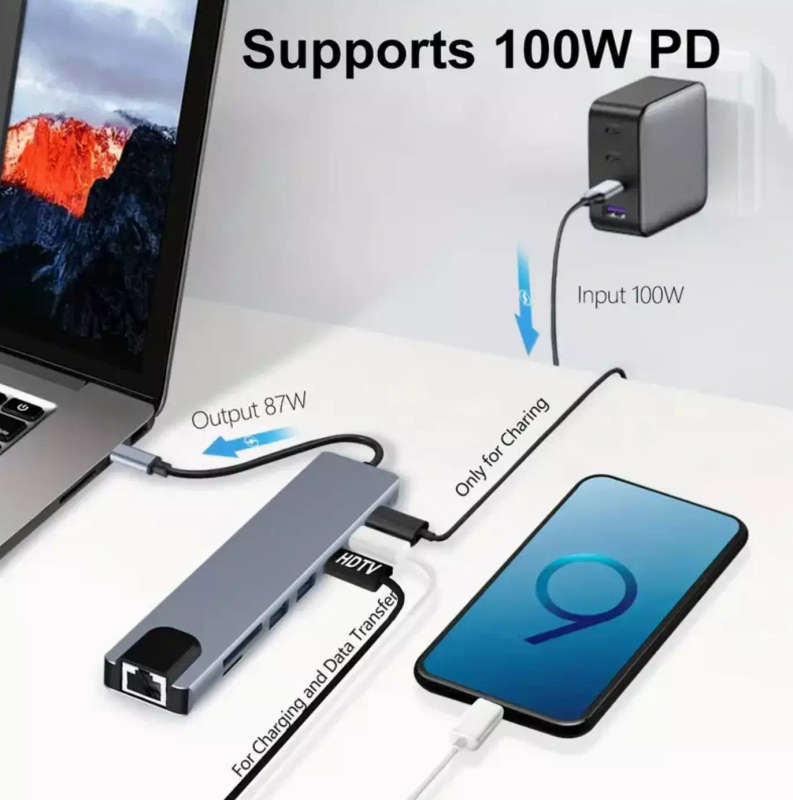

• 1 x USB Type-C for Cherging (15W-100W)

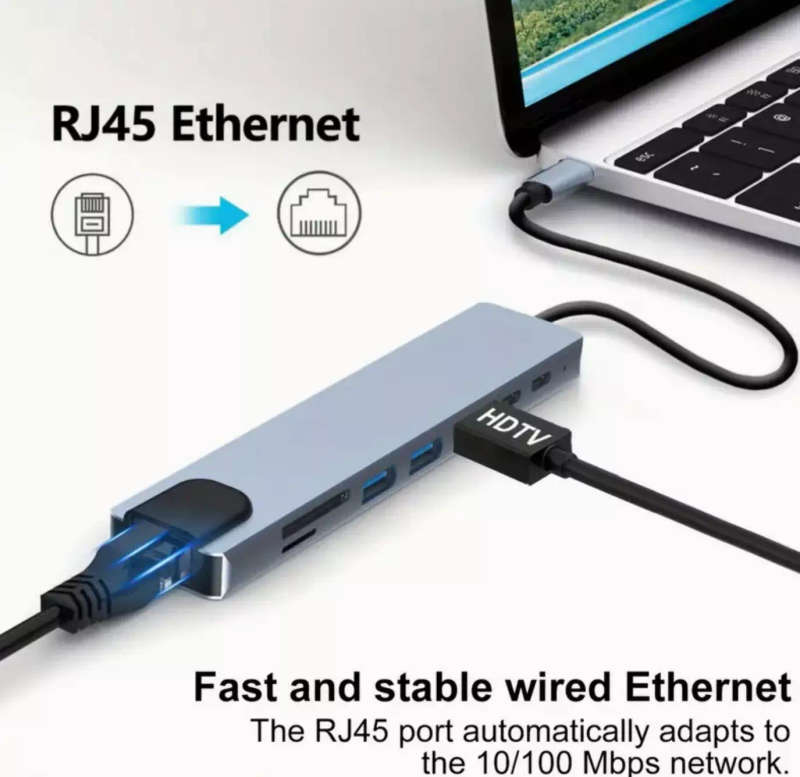

• 1 x RJ45 port (1000Mb/s)
• 1 x SDCard Reader Port
• 1 x MicroSD Card Reader Port
• 1 x USB-C Power Delivery port

NOTE!!! This USB C Adapter is compatible with smartphones supporting Displayport ALT Mode via USB C Such as Samsung S22, S22+, S22 Ultra, S23+, S23 Ultra, Hauwei P40 etc. Please check your phone specs if video signal supported via USB C Output port, the cable cannot provide this function if the smartphone does not support it. You can also download an app to check if Video via USB is supported from the Apple Store or Google Play Store, just search for "Checker for Type C Video" or similar.

All Functions of this adapter from a USB C Port such as USB C to Ethernet, USB C to USB 3.0 / Hub, USB C to SD Card etc will work on any operating system and laptop / PC since it is data based ports.

HDMI, VGA or Displayport Video output via USB C requires specific ports such as listed below

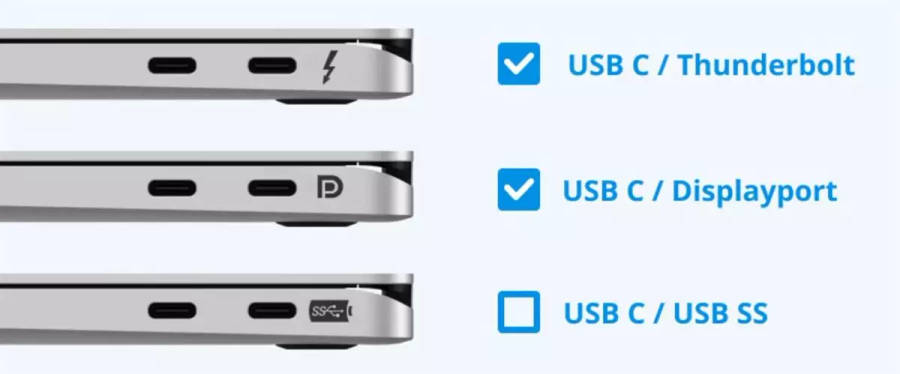

Displayport Alt Mode Video OR Thunderbolt 3/4 via USB C needs to be supported by the Laptop or PC Motherboard Manufacturer. Please see below the indication to check if your USB C Port is capable of video output. You can also confirm this with your laptop supplier. Not Any USB C Port will support video output via the USB C port.

Common devices used with this product below but not limited to these products in general the adapter will work with any USB Type C Device capable of outputting video.
