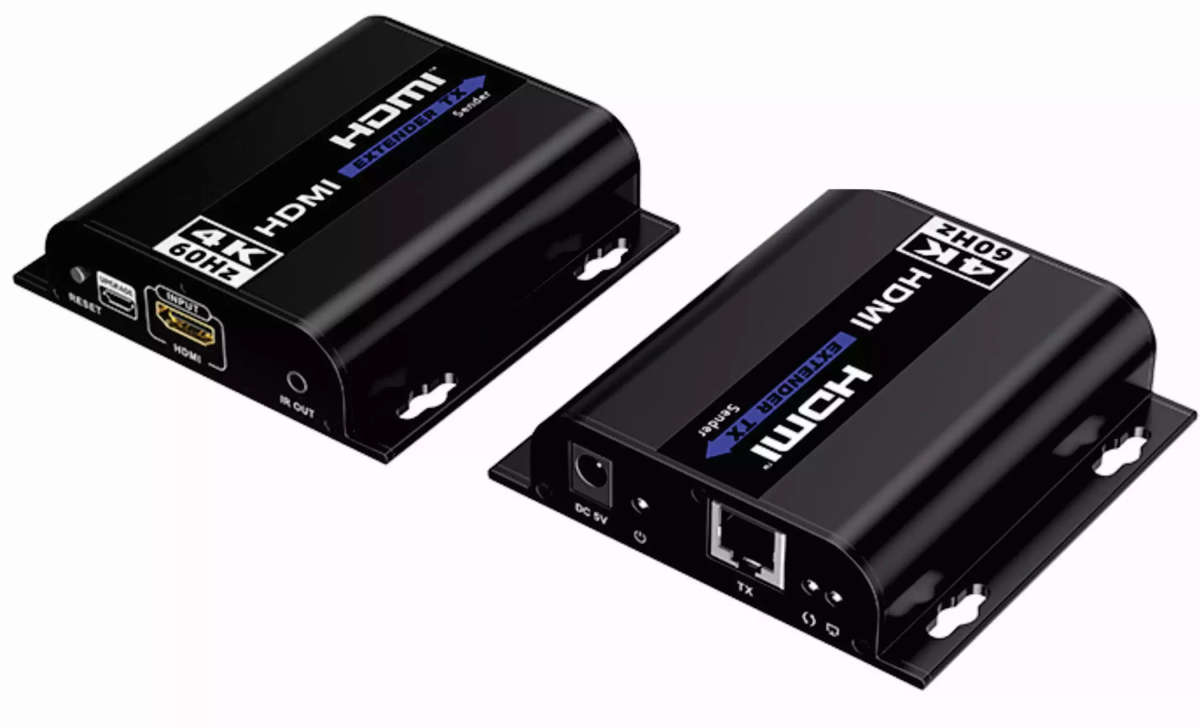

You can connect any HDMI devices / players such as HD camera, DSTV Explora, DSTV Ultra Decoder, Gaming Consoles, Blu-ray etc to a HDMI display by using Cat 5e/6 cable for long distances instead of expensive HDMI cable, you can also use your existing Infrared remote control to control the devices from a remote location.
The Receiver unit used with this Transmitter unit can be purchased separately as below
/hdbitt-hdmi-over-network-lan-ip-switches-extender-with-ir-receiver-v5-0/
You can use unlimited receivers with the transmitter unit to connect a source / player to unlimited displays through network switches or routers. IR Eyes to control equipment from remote location using current equipment IR remote control is included. A Gigabit (1Gbps) Network switch needs to be used with this product since 10/100 Network Switches may have insufficient bandwidth depending on resolution used on this product higher resolutions may not work on 10/100Mbps switches. Using the HDMI over Network products in this type of setup together with the Network over Powerline adapters will effectively create an HDMI over Powerline solution. One Player / PC / Source can transmit via the Network over Powerline adapters to multiple displays / HDTV's instead of using traditional network switches and installing CAT6 Networking cable to enable these extenders to function across existing 220v electrical power cables. This type of solution has been tested up to 70 meter over existing home / business power cables. Longer distances is possible but will be dependent on your home power cables quality and wiring at the DB Board. If a UPS is used in between transmitter and receiver this solution will not work as the signal can only pass through electrical DB Board and breakers and not via a UPS.
Connection Diagram
| Parameters | |||
| HDMI length | 5m | HDMI output | LPCM 2.0 |
| Maximum transfer rate | 18Gbps | IR receiving range | 5m |
| Resolutions | 4096x2160@24/30/50/60Hz | IR frequency | 20kHz~60kHz |
| 3840x2160@24/30/50/60Hz | Power Supply | TX/RX: DC 5V/1A | |
| 1080P@24/25/30/50/60Hz | Power Consumption | TX 3.5W，RX 2.5W | |
| 720P@50/60Hz, 576P@60Hz | Working temperature | - 20~60 | |
| 480P@60Hz, 1920x1200 | Storage temperature | - 30~70 | |
| 1680x1050, 1600x900 | Humidity | 0~90%RH (no condensation） | |
| 1280x1024, 1280x960 | Housing | Aluminium | |
| 1280x720,1024x768 | Weight | TX：156g，RX：154g | |
| Compatibility | HDMI 2.0, HDCP 1.4/HDCP 2.2 | Color | Black |
| Connection types | One-to-one connection | Dimensions | 96.8(L)*94(W)*23.7(H)mm |
| One-to-many connection | Protection | ESD protection | |
| Switch cascading | 1a Contact discharge level 2 (±4KV) | ||
| Transmission distance | CAT5 80m / CAT5E 100m / CAT6 120m | 1b Air discharge level 3 (±8KV) | |
| Transmission latency | 1080P: 80~130ms | Implementation of the standard: IEC61000-4-2 | |
| 4K@60Hz: 150~220ms | |||
The Advantages of HDbitT
Benefits of HDbitT including
