4k UltraHD HDMI Recording Device with HDMI Loop-out | USB Powered
Features:
Please NOTE!! Content must not be HDCP Encrypted to ensure video can be recorded. HDCP Encryption such as Blu-ray and other content is NOT Supported due to Copyright Violations.
- Device can capture HD HDMI video signal Inputs from various devices such as PS3/4,Xbox Consoles, Wii Consoles, Nintendo Consoles, Cameras, Security Cameras with HDMI outputs, DSLR Cameras, Video Recording Cameras etc
- NO drivers needed, Plug & Play. Low latency for game recording, meeting recording, live streaming. Share to youtube, facebook, twitter etc as a Live Stream.
- Compatible with Windows, Linux, Mac-OS X.
- Capture resolutions up to 4k (3840 x 2160), hardware accelerated up-scaling/down-scaling. The recorded video resolution depends on the original video, which is not changeable by the capture device.
- Audio & Video Recording ability from external devices via HDMI port, easy File Save & Share via Computer, Support live RTMP video streaming.
- Microphone Input ability to combine Voice Audio input "Live" with HDMI Output Stream.
- Input Resolutions : 720 x 480 (60 p), 720 x 576 (50 p), 1280 x 720 p (50 p), 1280 x 720 p(60 p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24 p), 1920 x 1080 (25 p), 1920 x 1080 (30 p), 1920 x 1080 (50 p), 1920 x 1080 (60 p), QHD, UltraHD 4k (3840 x 2160)
- Software Compatibility : OBS Studio (windows,OS X); Windows Media Encoder (Windows); Adobe Flash Media Live Encoder (Windows, OS X); Real Producer Plus (Windows); VLC (Windows, OS X, Linux); QuickTime Broadcaster (OS X); QuickTime Player (OS X); Wirecast (Windows,OS X); vMix(Windows); Potplayer(Windows)and etc.
- Development Interface Compatibility : DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux) OS X (QuickTime)
Specifications:
- Interface : USB 3.0 to PC and Micro-USB 2.0 for Power
- Video Input : HDMI
- Audio Input : 3.5mm Microphone Jack (Please see Note below on Different Devices below and email notification of preferred device)
- Video Output : HDMI (Audio from Microphone Combined into HDMI Output Stream)
- System Requirements: Windows 7,8,10, OS X 10.9 or later, Linux.
- Support resolutions up to 4K including lower resolutions like 1440p/1080p/720p;
- 1080p @ 60 Frames per Second, 4K @ 30 Frames per second
Package Contents
- 1 x Video Capture Device with HDMI Loop-out
- 1 x 1 Meter USB Male to Male Cable
- 1 x 1 Meter Micro USB to USB Cable for Power from a nearby USB port
- We have 2 variants which supports 4K and HDMi Loop-out on this device as per pictures. If a specific model needed please specify this in your order comments and email us after order placed.

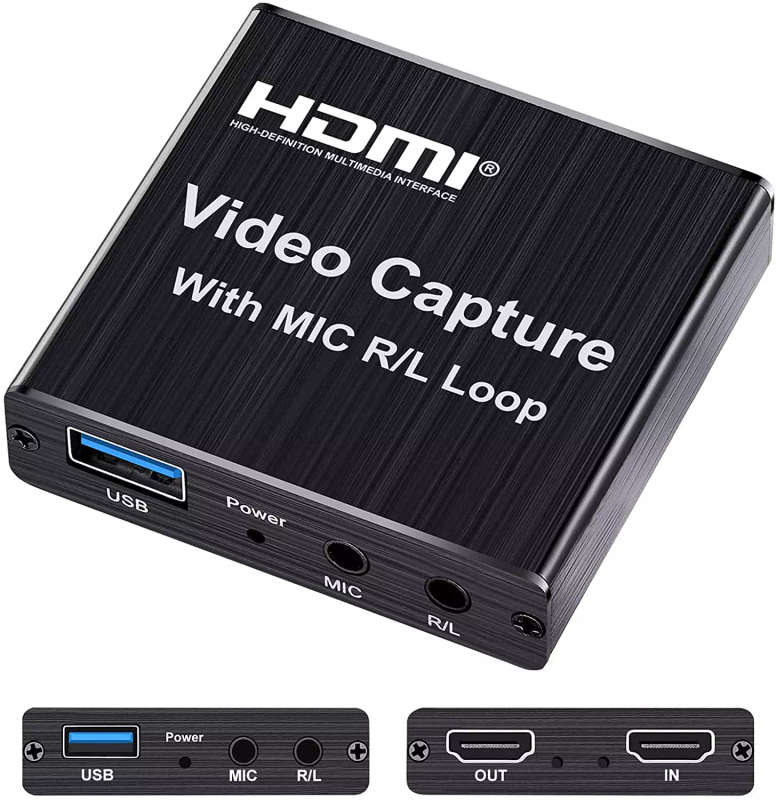

Exact Pics of HDMI Capture Device on product, below is an example of installation only:
Steps and Setup for Recording - Also refer to the application Help Guide for support, below an example of video capturing using OBS Studio
- Install Software and Launch Application
- Add A Video Capture Device as below from Application (Device is Recognized in Windows Device Manager as "USB Video")
3. Configure Alternative Video Capture Settings and Output Folder on OBS Studio under Settings.
4. Press the Record Button on OBS Studio when you see the HDMI Input image on your PC to start recording
If your capture device is not being detected in capture software it might be a Windows 10/11 security setting. Please change the Camera Privacy settings below as circled in Red to enable desktop apps to access the cameras/capture device:
