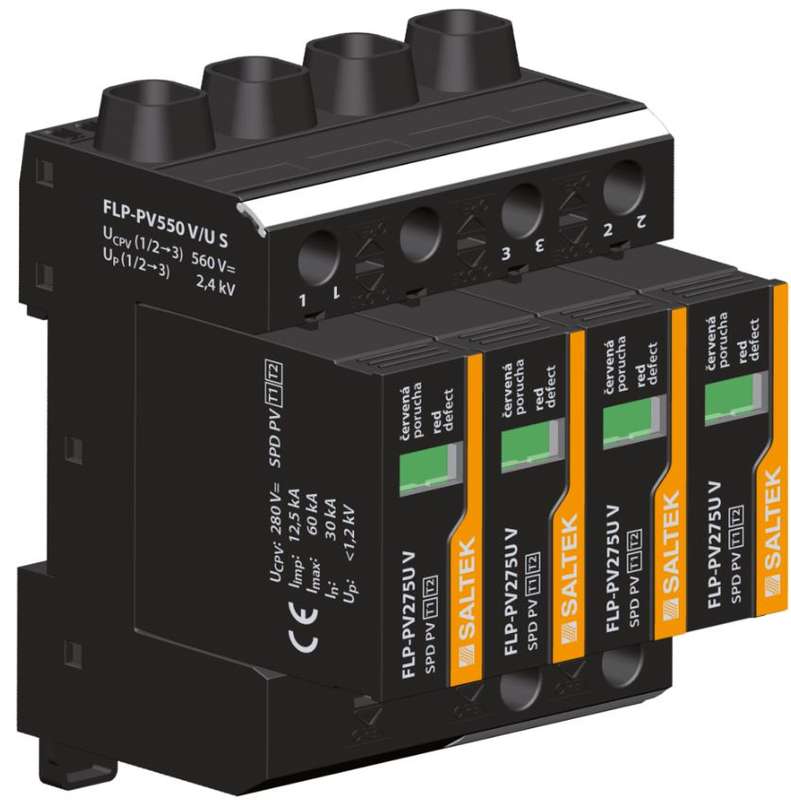

SPD PV type 1 and type 2 - Lightning Current Arrester and Surge Arrester for PV systems
Type of SPD: PV T1, PV T2
Maximum operating voltage mode 1/2 I?connection: 1 120,00V DC
Maximum operating voltage mode 1/3, 2/3: 560,00V DC
Lightning impulse current (10/350 ?s): 12,50kA
Total discharge current (10/350 ?s): 25,00kA
Nominal discharge current (8/20 ?s): 30,00kA
Maximum discharge current (8/20 ?s): 60,00kA
Voltage protection level mode 1/2: 4,80kV
Voltage protection level mode 1/3, 2/3: 2,40kV
Short-circuit current rating: 1 000A DC
Response time: 25ns
Cross-section of connected conductors solid (min): 1,00mm?
Cross-section of connected conductors solid (max): 35,00mm?
Cross-section of connected conductors stranded (min): 1,00mm?
Cross-section of connected conductors stranded (max): 25,00mm?
Fault indication: red indication field
Degree of protection: IP 20
Range of ambient temperatures - min: -40?C
Range of ambient temperatures - max: 80?C
Mounting: DIN rail 35 mm
According to standard: EN 50539-11:2013
Plug module: FLP-PV275U V/0
ETIM Class: EC001457
