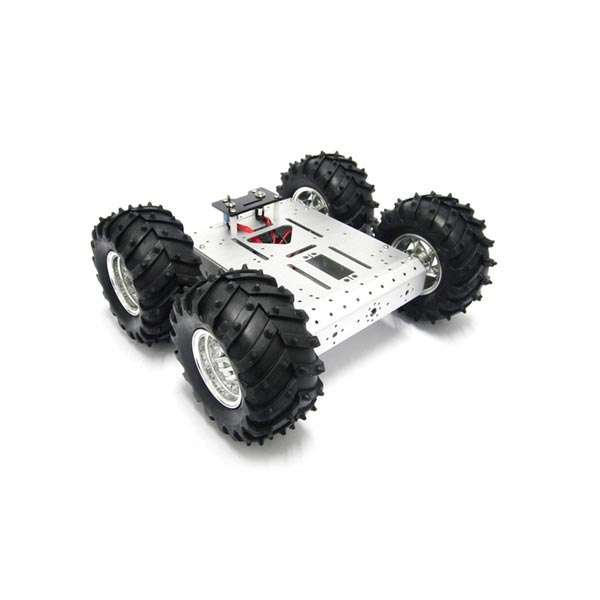

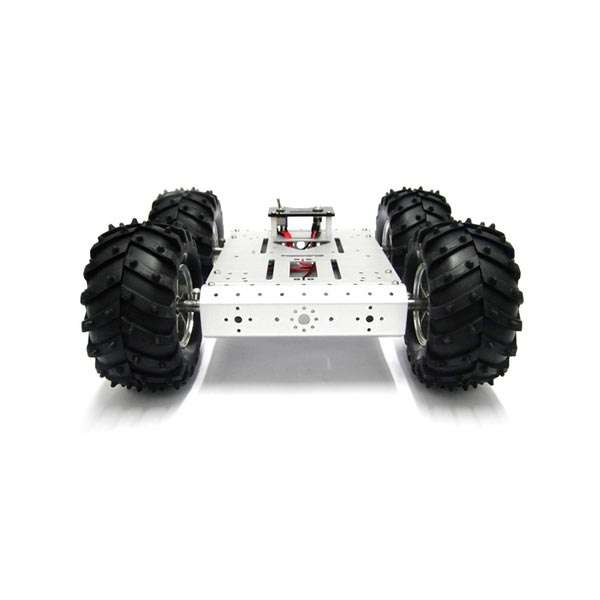

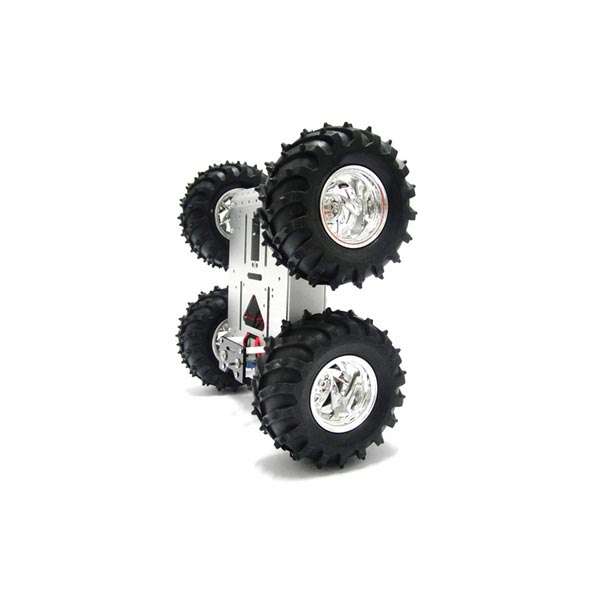

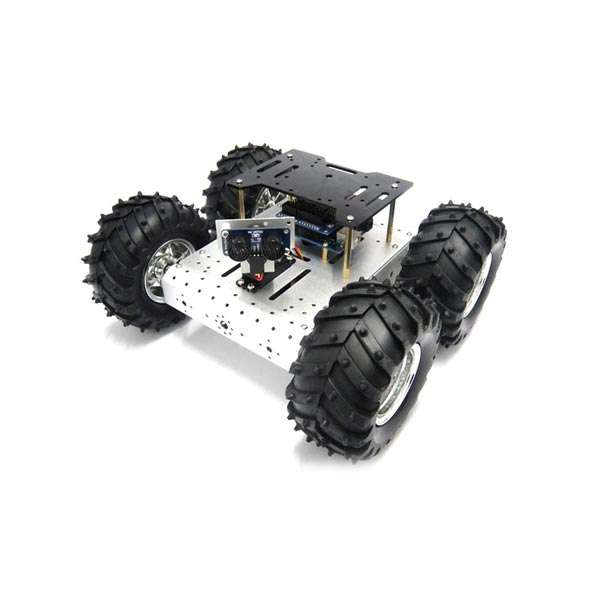

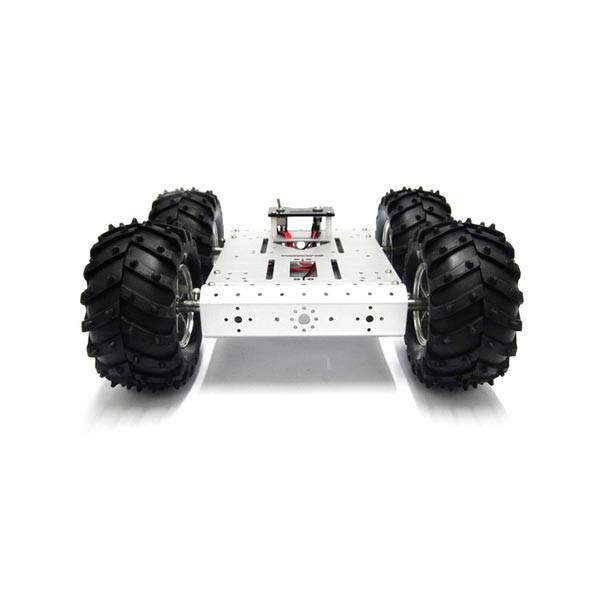

4WD WIFI Cross-country Off-road Robot Smart Car Kit For Arduino Raspberry Pi

4WD WIFI Cross-country Off-road Robot Smart Car Kit For Arduino Raspberry Pi
Feature:
Platform has mounting holes for 51 MCU controller, Arduino Mega168 controller, Arduino Mega328 controller, Arduino Mega1280 controller, 32-CH servo controller
Two degrees of freedom servo holder lock slot
Collision switch mounting hole
Front panel can be mounted infrared obstacle avoidance sensors, infrared distance sensor, light sensor, ultrasonic sensor, bright LED lights, etc.
Platform body uses hard aluminum alloy materials, which has light weight, high strength, hard deformation
Mounting holes for commonly used DC Gear Motor, the motor and tires can be replaced based on personal preferences
Large elastic rubber tires, with shock absorption, abrasion resistance, grip and strong, able to adapt to smooth and rough pavement
Ideal for Arduino fans
Enjoy your fun of DIY Robot
Specification:
Wheel Diameter: 120mm
Wheel Width: 60mm
Platform Length: 195mm (Body Length: 270mm)
Platform Width: 142mm (Body Width: 280mm)
Platform Height: 120mm
Platform Weight: 1280g
Distance between Chassis and Ground : 26mm
Motor Rated Voltage: 12V DC
Motor Load Speed: 100RPM
Motor Rated Speed: 90RPM
Motor Gearbox Length: 19mm
Motor Rated Current: 0.52A
Motor Rated Torque: 0.263N.m
Motor Maximum Torque: 0.597N.m

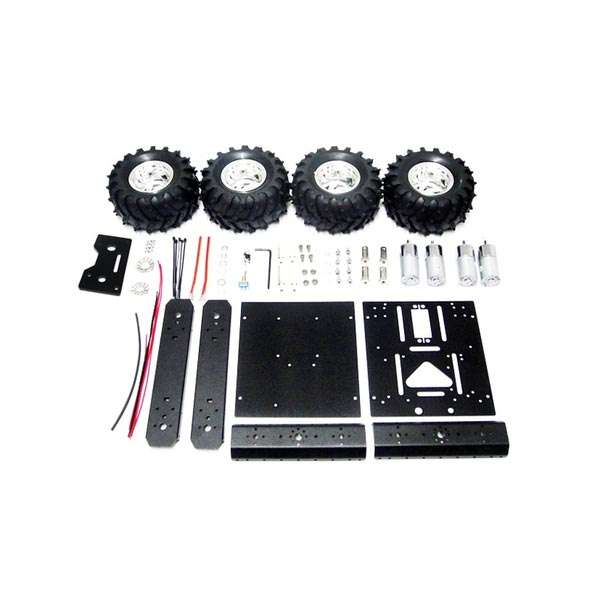

Kit List:
1 x 4WD Platform Plate-Stay ( upside )
1 x 4WD Platform Plate-Stay ( underside )
2 x 4WD Platform Baffle ( front and behind )
2 x 4WD Platform Motor Mounting Plate ( right and left )
1 x Power Switch Interface Board
1 x Power Toggle Switch
1 x Battery Charging Interface
4 x DC Gear Motor
4 x Large Elastic Rubber Off-Road Wheel
8 x Cable for DC Geared Motors
1 x Shrink Tube
5 x Black Tie
2 x Charging Switch Cable (Red And Black)
4 x Couplings
28 x Cross Recess Screws M3*6
4 x Hex Nut M3
4 x Nylon Column M3+20
1 x Hex Wrench
Package included:
1 x 4WD WIFI Cross-country Off-road Robot Smart Car Kit
