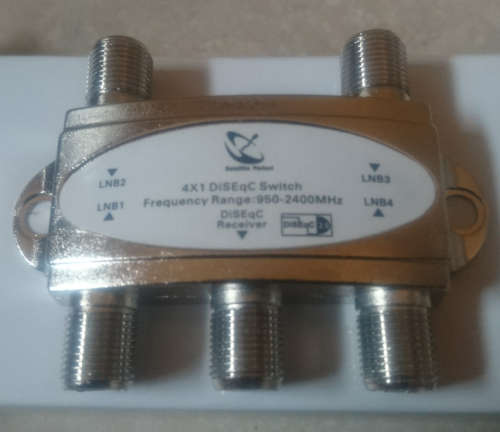

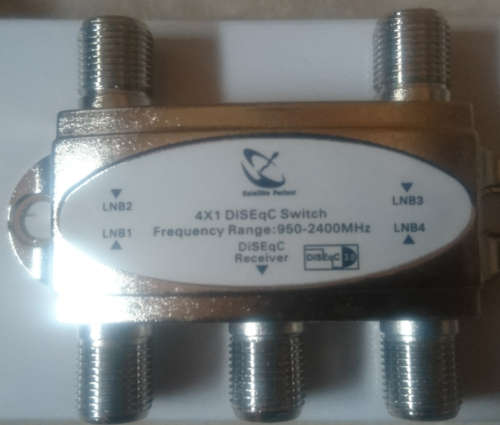

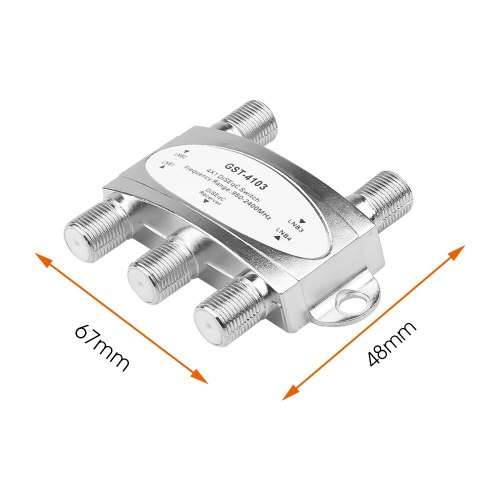

4x1 DiSEqC-Switch for TV, Satellite, Receiver, Signal Antenna

 4 New Units Available

Features

1. Low power consumption;

2. External Power Units or power by receiver;

3. Zinc die-cast housing, nickel-plated;

4. Built-in amplification circuit compensate cable loss;

5. Alternative SAT IF selection: 13/18V;

6. Chip's research and development independently on our own;

7. For the products, we have our own patent

8. IC in switch distribute and control power supply to LNB , reducing energy consumption.

Specification:

1,Frequency Range:900-2400MHz

2,Insertion Loss:3dB

3,Isolation Between Outputs:20(dB)

4,Switching Isolation Input: 23(dB)

5,Return Loss Inputs: 8(dB)

6,Return Loss Outputs: 7(dB)

7,Output Level: 88dBuV (ANT) / 100dBuV (SAT)

8,Normal Working Voltage: 12-20(V)

9,DC Power Consumption: 30(mA)

10,DC Max Power Passing: 500(mA)

11,Impedance (all ports): 75(Ω)

12,Switching Voltage/Signal: 13/18V, 0/22KHz

13,Connectors “F” type: female
