4x1 HDMI Switch with Optical Toslink, Digital Coaxial and Stereo Analog audio output - Revision 2

Rev 2 of this switch features additional buttons on the IR remote to force Dolby digital 5.1 or 2 channel output if digital receiver capabilities not correctly detected.

Tested 100% with all common HDMI sources such as HDPVR, Apple TV Player, Mvix (HDMI Version), Sony Playstation 3, Microsoft Xbox 360, DVD players and Blu-ray Players on the SA market.

HDMI devices (any source / player, LCD, Plasma etc) have different results when inserting HDMI Repeater devices depending on the equipment you are using (a repeater device is any switch / splitter / extender etc). Please ensure to get confirmation from the manufacturer of your source / player / LCD that the specific player or LCD can communicate via a HDMI Repeater. Some source devices might not allow any HDMI device between itself and the LCD and will only function via a direct HDMI cable to the LCD. The opposite is also possible where the LCD needs a direct connection to the source / player and will not accept a regenerated signal from a HDMI Repeater device. Your display or source manufacturer can confirm if their product supports the functions required.

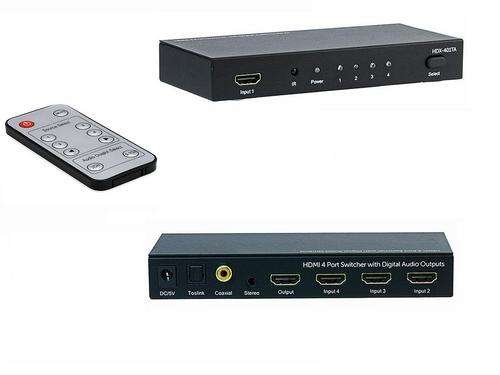

This switch has 4 x HDMI inputs, 1 x HDMI output, 1 x Optical audio output, 1 x Digital Coax output and 1 x 3.5mm stereo output jack. It features a built in audio converter that will convert the HDMI audio from any of the 4 HDMI inputs and convert it to simultaneous audio output in HDMI, Optical, Digital Coax and 3.5mm Stereo. That way you can integrate any type of sound system, even if it doesn't directly support HDMI audio.

Features :

● Switches easily between up to four HDMI sources / players / gaming consoles.
● Supports Blu-Ray 24/50/60 fps / HD-DVD / xvYCC / Playstation 3 / Multichoice HDPVR / XBOX 360 and other HDMI source devices on the market.
● Extends the range of HDMI compliant device by equalizing and re-clocking the HDMI signal.
● Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved.
● HDMI Built-In Equalizer to allow longer HDMI cables lengths up to 15 Meter.
● HDCP Compliant to allow switching of HDCP devices.
● Discrete IR remote (included).
● Supports deep color 30bit, 36bit.
● Digital audio format, as DTS-HD/Dolby-TrueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD.
● Support signal retiming.
● Support input up to 15metres AWG24 HDMI 1.3 standard cable length.
● Output up to 20metres AWG24 cable length.
● Inputs can be switched with the IR remote control，also can be controlled by button.
● It can smartly jump over those input sources which are not connected.
● With the smart function of memory, it can come back to the last status / input when restarted or reconnected.
● No loss of quality.
● Installs in minutes.
● Need DC5V / 0.8A power supply. Included with purchase.

Specifications :

- HDMI version : HDMI 1.3
- HDCP version : HDCP1.2
- Frames per Second : 24/50/60 fps.
- Resolutions: 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
- Support video color format : 24bit / 30-bit / 36-bit deep color
- Support audio input format : DTS-HD / Dolby-TrueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD
- Audio Output : HDMI same as input, Optical Dolby Digital / Digital PCM 48Khz via Toslink Optical port, Analog Stereo Output via 3.5mm connector
- Max transmission bandwidth : 10.2Gbps
- Input/Output TMDS signal : 0.5~1.5Volts p-p
- Input/Output DDC signal : 5Volts p-p (TTL)
- Input cable distance : ≤15m HDMI AWG24
- Output cable distance : ≤20m AWG24 HDMI 1.3 standard cable
- Max working current : 800mA
- Power adapter format Input : AC (50HZ, 60HZ) 100V-240V; Output: DC5V / 0.8A
- Operating Temperature range : (-15 to +55℃)
- Operating Humidity range : 5 to 90%RH (No Condensation)
- Dimension (L x W x H) : 11.5 x 11.6 x 2.4 cm

Connection and operating instructions :

1. Ensure all Home Entertainment Equipment has been powered off (Including source / player and display device)
2. Connect one cable from each HDMI source device into HDMI Switch inputs.
3. Connect one cable from display (monitor or projector) into the HDMI Switch output.
4. Connect 5V power supply to the HDMI 5x1 Switcher.
5. Use the RMT-IR remote control port to remotely switch between sources.

Use high quality Surge Protection plugs on your equipment to ensure unstable power from electrical wall socket / electrical surges will have less chance of damaging your equipment. a UPS (Uninterruptible power supply) is highly recommended in all areas of your home or business where LCD's, players and HDMI Equipment is installed.
