4x2 1080p HDMI Matrix Switch SE-HDMI-342

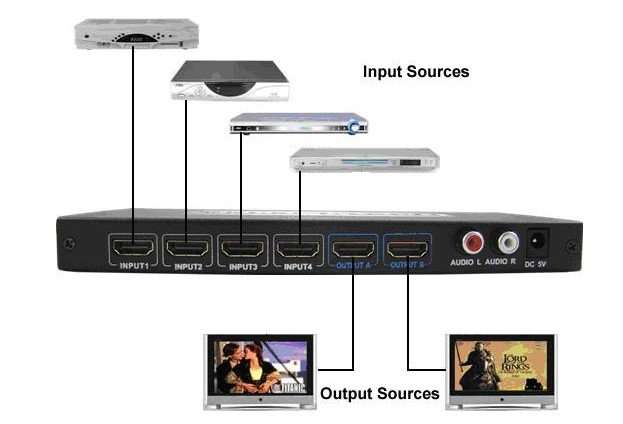

This 4x2 HDMI Matrix Switch is with 4 HDMI inputs and 2 HDMI outputs. It is a true matrix and can distribute any one of 4 sources to either of 2 displays, and can work as a splitter to show the same source on 2 displays simultaneously. It is HDMI 1.3 V and supports full HD 1080p.
b<>Features:
-4X2 HDMI Matrix Swtich LKV342 Distributes any one of 4 sources to either of 2 displays or to both 2 displays simultaneously;
-Compatible with full HD 480i, 480p, 576i, 576p, 720p, 1080i and 1080p;
-Switch easily between multiple HDMI sources via remote control or via buttons on the unit;
-4X2 HDMI Matrix Swtich LKV342 is with inner IR receiver to enlarge IR remote control signal;
-HDMI 1.3 V and compliant with HDCP;
-Power: 5wtts (Max);
-Power Supply: DC 5V

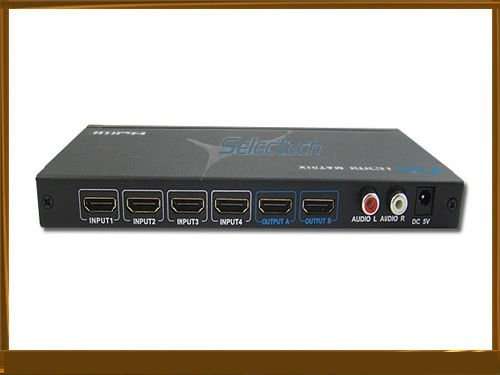

Interface Specification:
(1) Power Switch
(2) Power LED
(3) IR Receiving Window
(4) LED of Selecting Output A
(5) LED of Selecting Output B
(6) Switch Button of Output A
(7) Switch Button of Output B
(8) HDMI Input 1
(9) HDMI Input 2
(10) HDMI Input 3
(11) HDMI Input 4
(12) HDMI Output A
(13) HDMI Output B
(14) Audio Left for HDMI output A
(15) Audio Right for HDMI output A
(16) Power Socket
Accessories & Package:
Power Supply1pcsDC 5V
Remote Control1pcs
User Manual1pcs
