4x2 HDMI Matrix True Switch 4K (4-IN to any 2-OUT) remote, Digital Audio SPDIF

True HDMI Matrix with 4x HDMI inputs and 2x HDMI outputs. Supports Ultra HD or 4K resolution (3820 x 2160) and 3D, powered.This Matrix selects any of the 4x HDMI inputs to any of the 2x outputs. The video image displayed on each output can be different and independent from any other output (4x different HDMI sources can simultaneously be routed to 2x different / independent outputs).

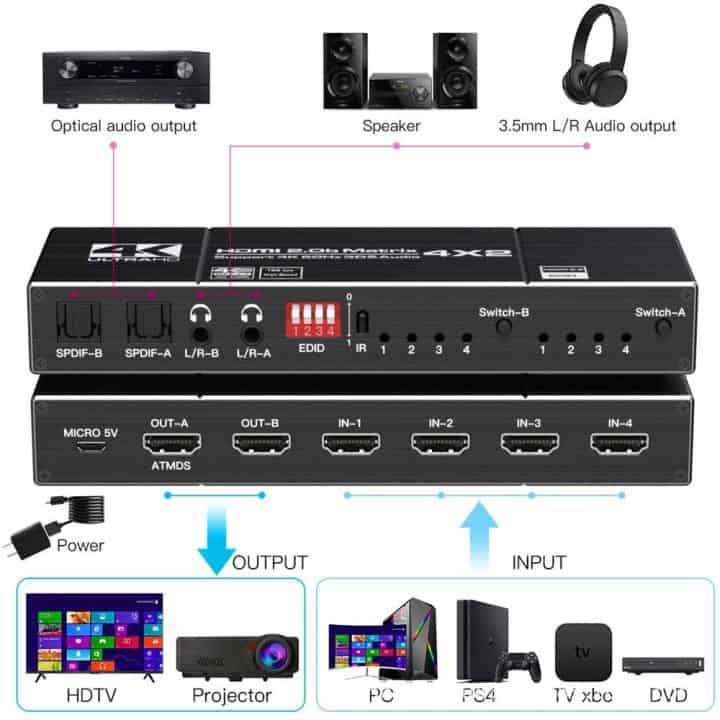

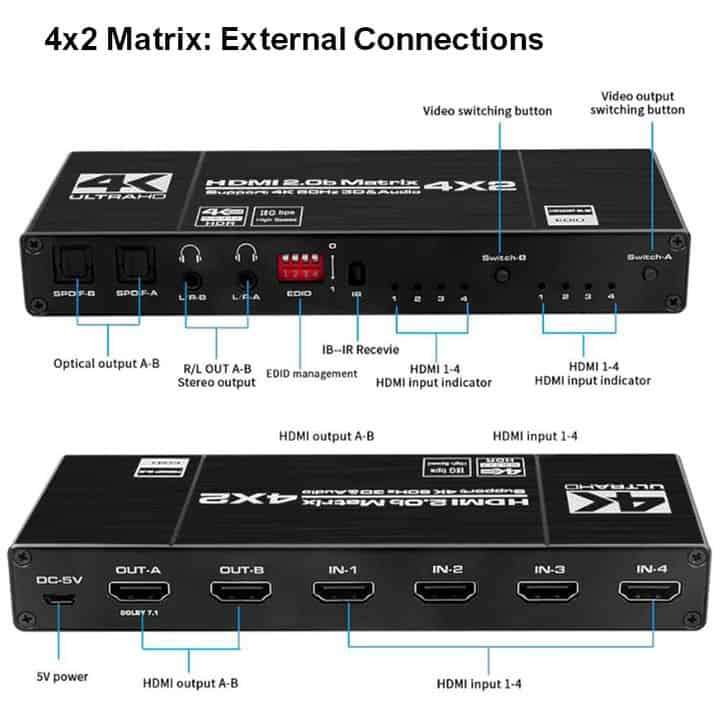

• Any one 4 HDMI Inputs (DSTV, PC, TV, Gaming Console) to any one of 2 HDMI Outputs (TV, Monitor, Projector etc.)
• No need to remove and swop any HDMI cables again

Purpose

• If you wish to route 4x HDMI input devices to 2x separate HDMI outputs which are not necessary the same device (independent of each other). For example DSTV decoder #1 can be routed to your main TV Lounge while DSTV decoder #2, TV Box or Blu Player can be routed to your bedroom.
• This Matrix is often used in conjunction with HDMI Balun CAT Cable Extenders to extend the HDMI signal from the unit to extended locations such as the bedroom up to 120m. Be sure the HDMI Extender has full IR remote control support meaning you can control the DSTV Decoder #2 from the bedroom

Remote Control

• The unit has both manual and remote input selectors. The benefit of the remote control is that the switch itself and all the HDMI cables connected to it can be hidden from view. Only the IR RX eye need to have LOS (line of sight) with the remote control itself. Note: The IR remote is powered by a lithium button battery (CR2025) which is NOT included.

Specifications

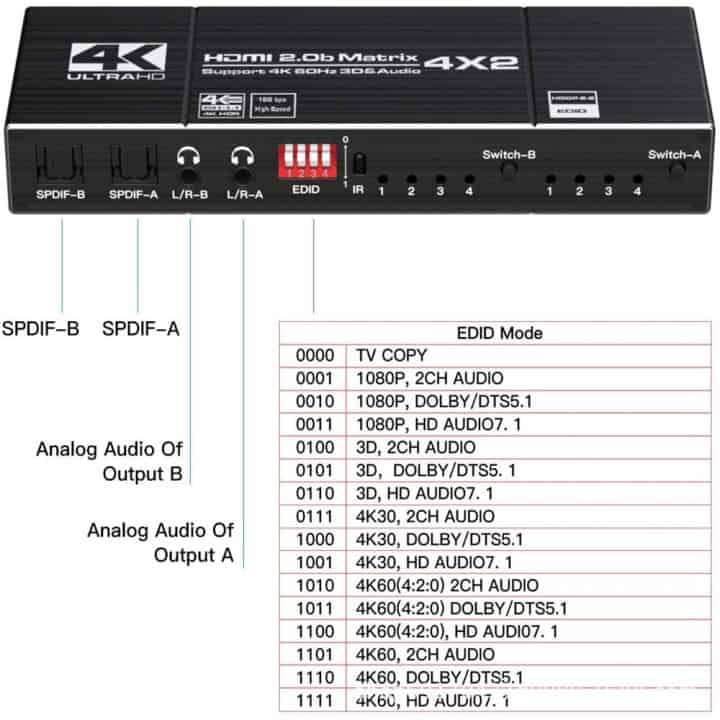

• Support Video Color Format: 24bit/Dark Color 30bit, 36bit, 48bit
• Supported audio formats: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Audio Out: Digital SPDIF and 3.5mm Stereo
• Maximum transmission bandwidth: 340 MHz
• Maximum baud rate: 18.2Gbps
• Input and output tmds signal: 0.5~1.5 volts pp
• Input/output DDC signal: 5Vpp(TTL)
• Input HDMI cable distance: 15m AWG24HDMI standard cable
• Output HDMI cable distance: 25m AWG24HDMI standard cable
• Maximum operating current: 1300 mA
• Power adapter format: Input: AC (50 Hz, 60 Hz) 100 V-240 V; Output: DC5V/2A
• Operating temperature range: -15 to 55C
• Operating Humidity Range: 5 to 90%RH (non-condensing)
• Dimensions (LxWxH): 250X27X75(mm)
• Weight: 380g

Infrared remote control operation command

• First remove the plastic film inserted at the back of the remote control board
• 2.A and B represent HDMI A output and B output.
• If A output signal, just press the number key above the A line. Like when you press the 2 key under the A line, the signal 2 will be output from A.
• 4.ARC: Arc Function ON/OFF key (only HDMI output A port supports ARC function).
• SPDIF/: SPDIF and headphone audio switch
• 6.2CH: 2-channel stereo mode.
• 7, 5.1CH: 5.1 channel mode.
• ADV: Advanced Audio Model
• Max Bandwidth: 340Mhz
• Max Baud rate: 3.4Gbps
• Support audio format: DTS-HD/Dolby-true HD//DTS/Dolby-AC3/DSD
• Input cable distance: 15m AWG26 HDMI standard cable
• Output cable distance: 25m AWG26 HDMI standard cable

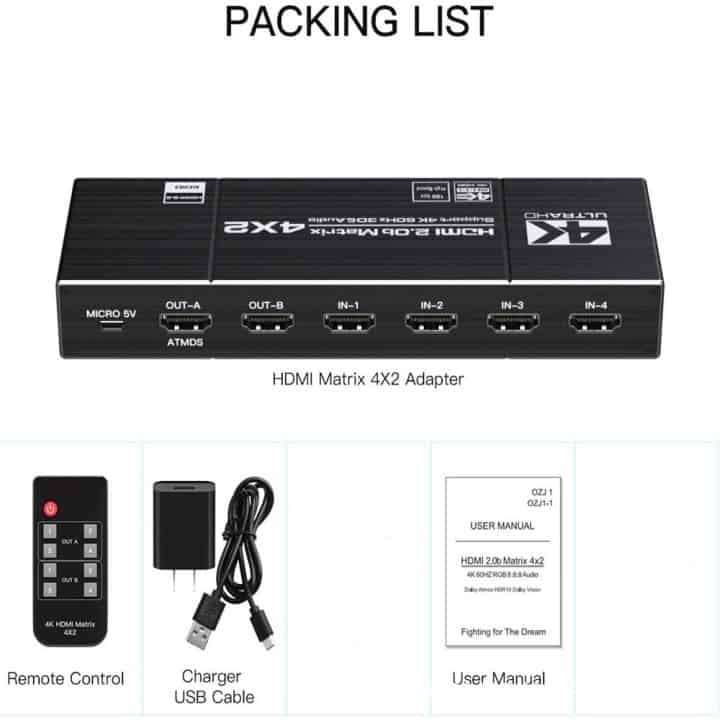

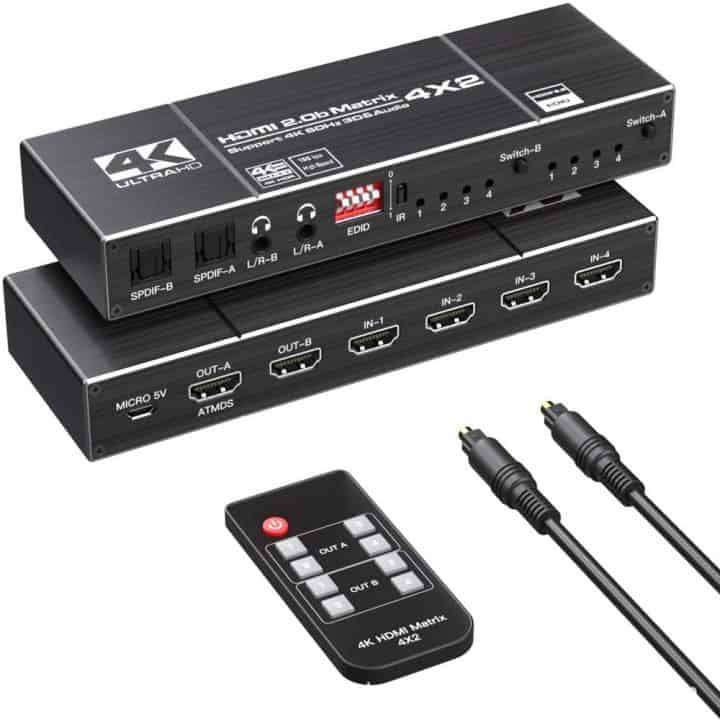

What's in the Box?

• 1x 4x2 HDMI Matrix
• 1x Remote Control
• 1x Power Adaptor
