4x2 HDMI True Matrix Switcher / Splitter 4k Ultra HD with Optical Toslink Audio Extractor for Sou...

4x2 HDMI True Matrix Switcher / Splitter 4k Ultra HD (4 input, 2 output ports) with audio decoder 1x Optical Toslink & 1x Stereo analogue

This 4x2 HDMI Matrix Switch is with 4 HDMI inputs and 2 HDMI outputs. It is a true matrix and can distribute any one of 4 sources to either of the 2 displays, and can work as a splitter to show the same source on 2 displays simultaneously. It also functions as an audio extractor to extract audio from HDMI to Optical Toslink or Stereo Analogue audio.

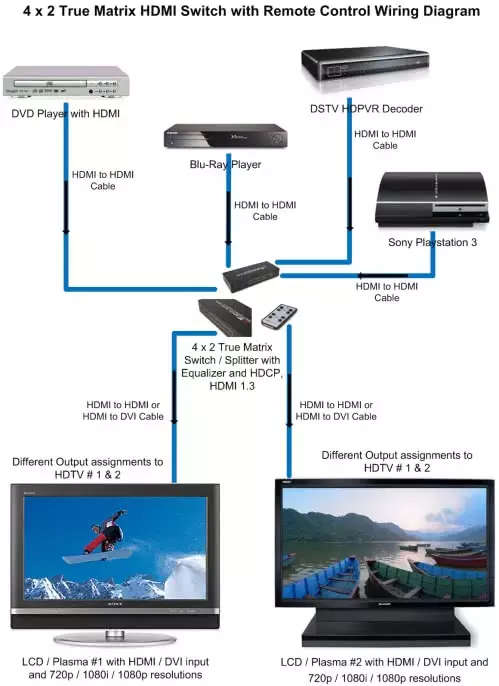

HDMI Matrix Switcher Installation and Wiring Setup Video

?v=ra30gqiHlEc

Features:

• Distributes any one of 4 sources / players / PC's or any device with HDMI to either of 2 displays or to both displays simultaneously.
• Switch easily between multiple HDMI sources via remote control or via buttons on the unit
• Optical / Toslink audio & analogue audio - to connect to amp/sound system
• Power: 5 watts (Max)
• Power adapter: DC 5V/2A

Specifications:

• HDMI resolution - 480p, 576p, 720p, 1080i and FullHD 1080p/ 1080P@60Hz 3D, 4K Ultra HD (3840 x 2160) 30hz
• Support video format - 8/10/12 bit deep color
• Support audio format - DTS-HD/Dolby-trueHD//DTS/Dolby-AC3/DSD
• Max bandwidth - 18Gbps
• Input cable distance - 20m AWG26 HDMI standard cable, any length HDMI Fiber Cable
• Output cable distance - 25m AWG26 HDMI standard cable, any length HDMI Fiber Cable

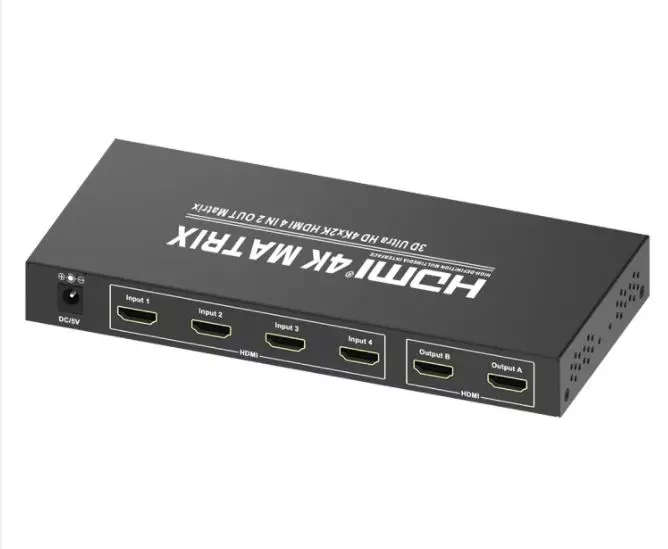

• 4 x HDMI Inputs
• 2 x HDMI Output
• Max working current - 550mA
• Power adapter format - Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
• Operating Temperature range - (-15 to +55 Degrees)
• Operating Humidity range - 5 to 90%RH (No Condensation)
• Dimension (L x W x H) - 200x70x25 (mm)
• Weight - 320g

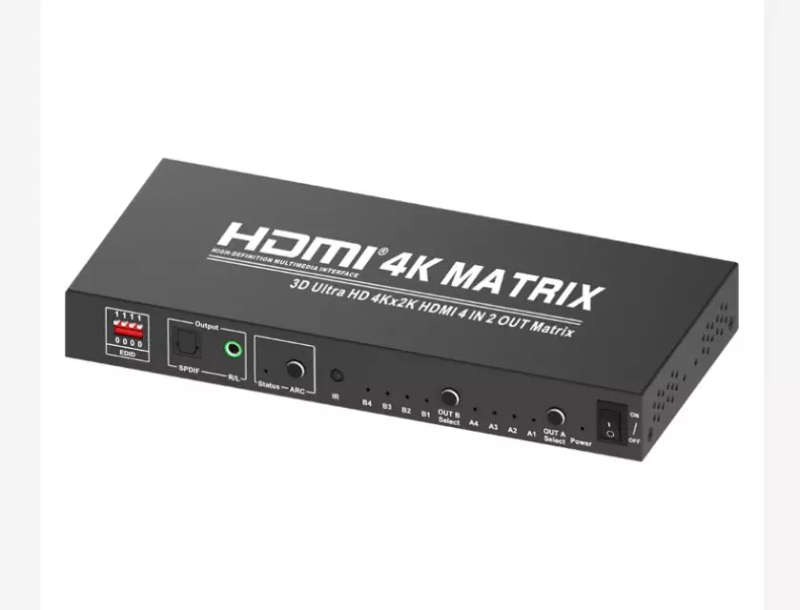

This Switch has EDID Dip Switches - Please see below for audio configuration settings and display settings

Dip Switch Settings - 0 is down and 1 is up for each of the individual 4 dip switches

0110 - 4kx2k 30hz, Dolby 2.0 via HDMI and Optical and input signal must be set to same on HDMI Source
0111 - 4kx2k 30hz, DTS 5.1 via HDMI and Optical and input signal must be set to same on HDMI Source
1000 - 4kx2k 30hz, Dolby 2.0, 7.1 Master DTS via HDMI and input signal must be set to same on HDMI Source, Optical will not support 7.1 Audio due to Toslink specification limitations.
