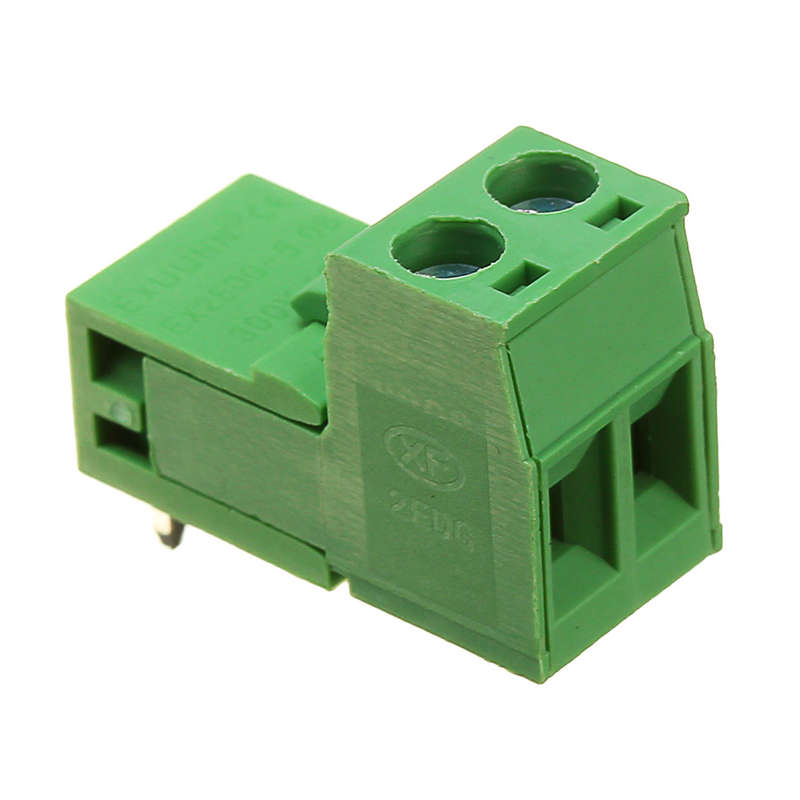

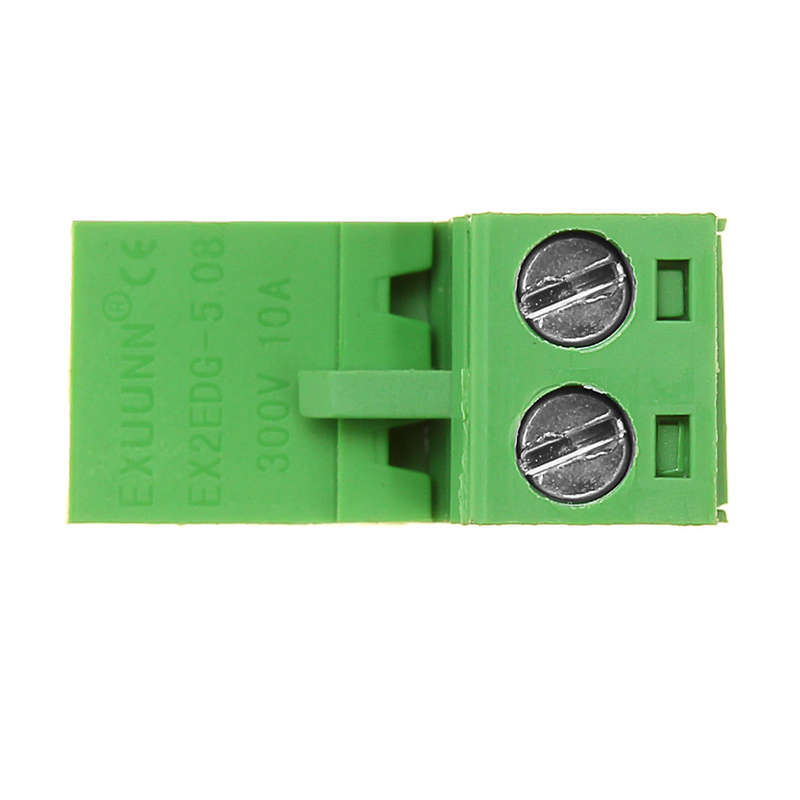

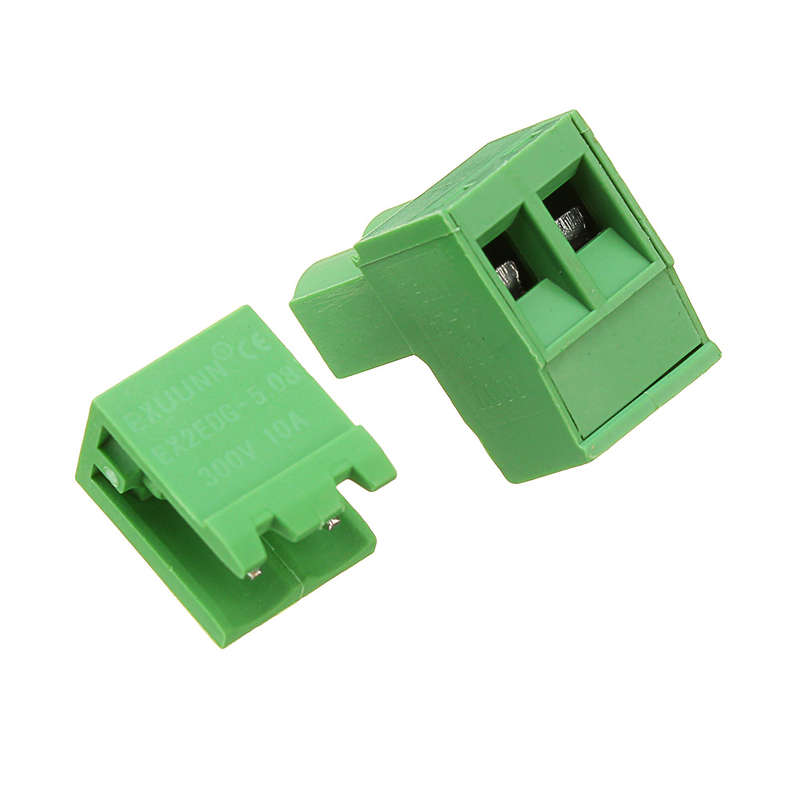

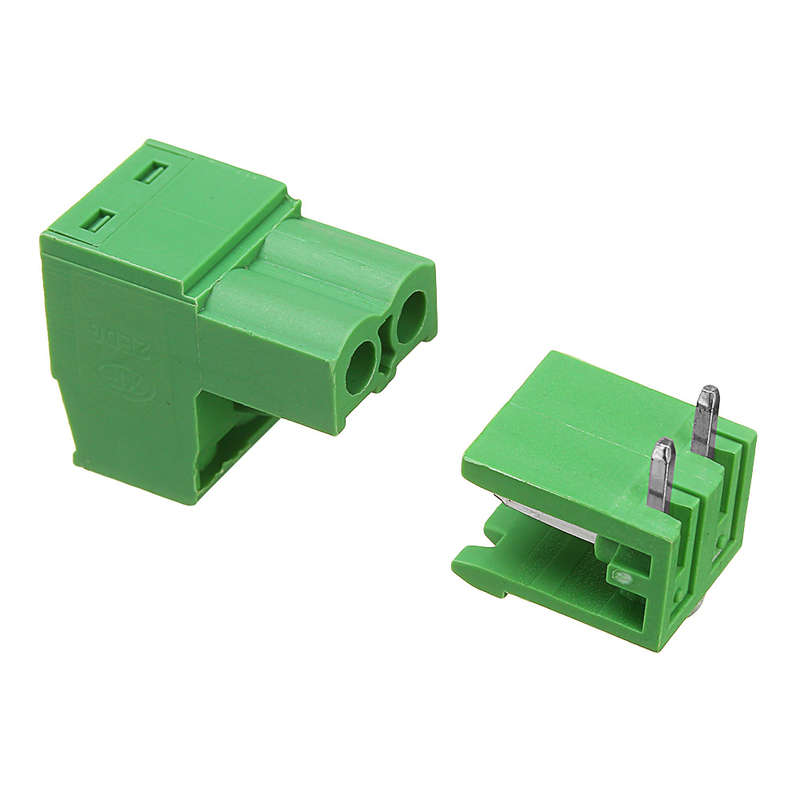

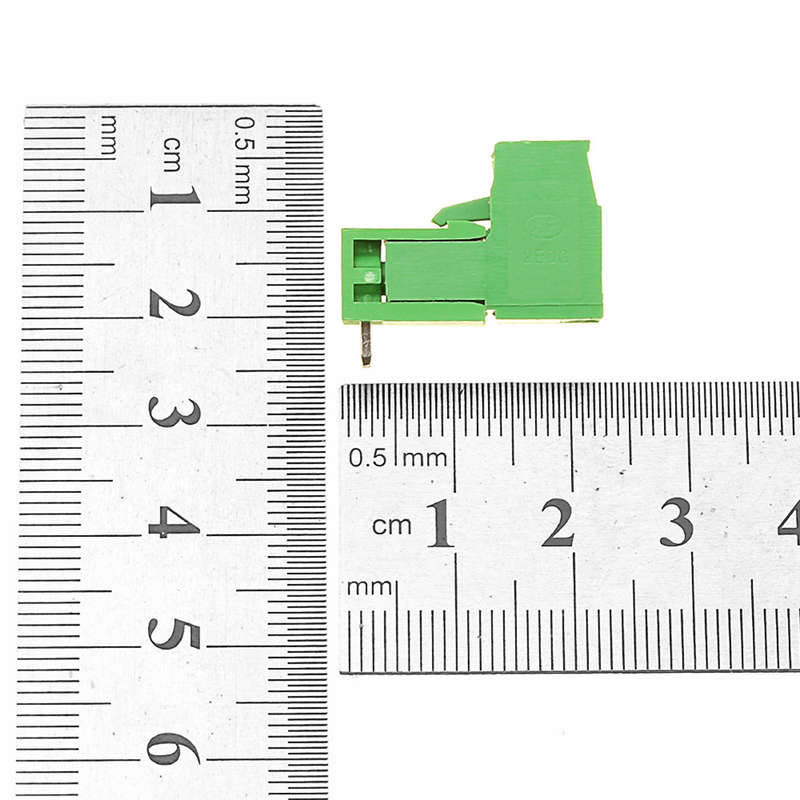

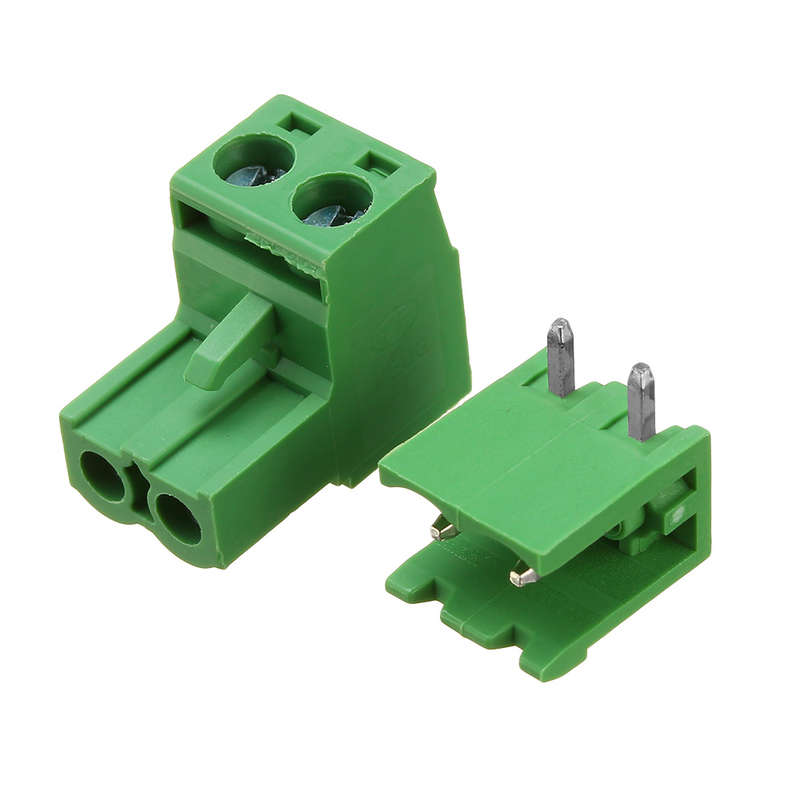

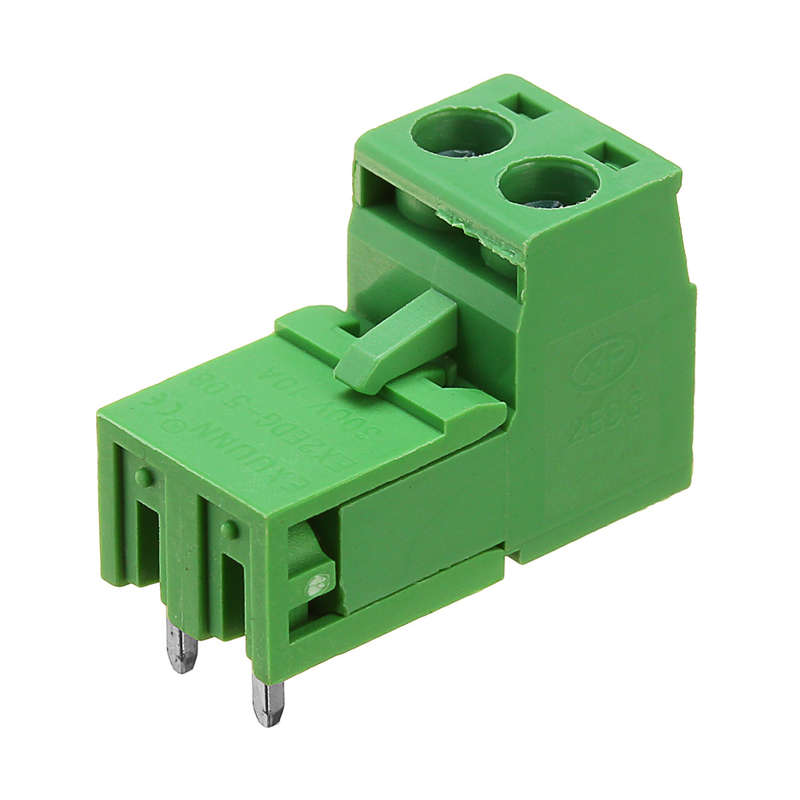

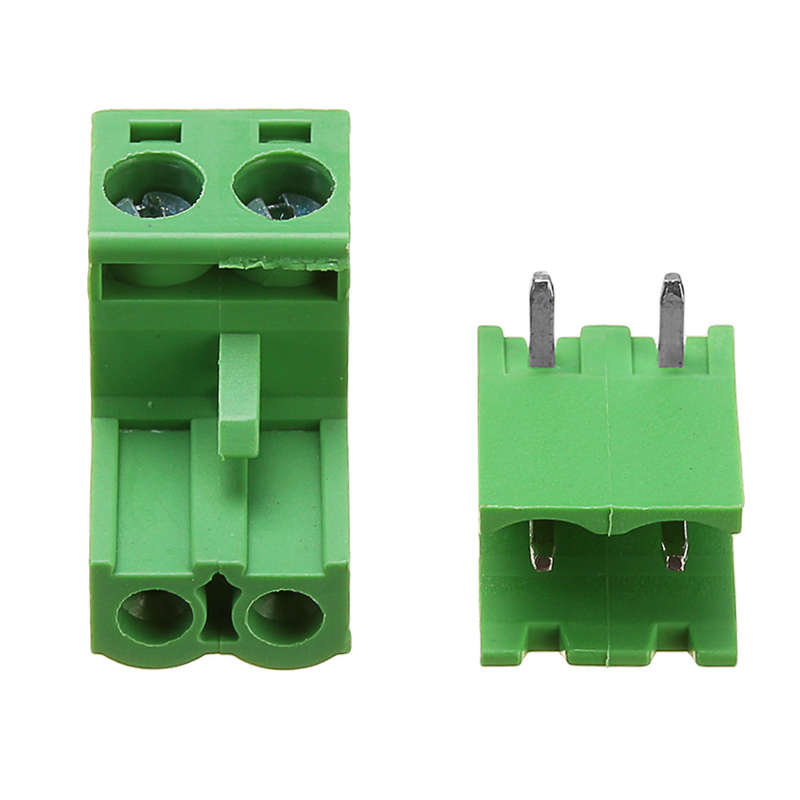

5.08mm Pitch 2Pin Plug in Screw PCB Dupont Cable Terminal Block Connector Right Angle

20 available / new

R378.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.38 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641111003

Features:

It is used in PCB for connecting power source or other wires.
90 degrees angle design, suitable for PCB space shortage or in need of using 90 degrees angle.
Good insulating property, never worried about getting an electric shock, safe and reliable.

Specifications:

1. Pitch: 5.08mm
2. Pin header: Brass Tin plated
3. Housing: PA66.UL94V-0
4. Poles: 2 Pin
5. Rated voltage: 300V 10A
6. Model: 2EDGKA
7. Rated current: IEC:15A; UL:10A
8. Withstanding voltage: AC2500V/Min
9. Temperature range: -40 degrees Celsius~105 degrees Celsius
10. MAX soldering: +250 degrees Celsius for 5 sec.

Package included:

1 x 2Pin Pluggable Terminal Block
