5.09kWh 48V SVOLT Lithium Battery - High Performance Wall-Mount

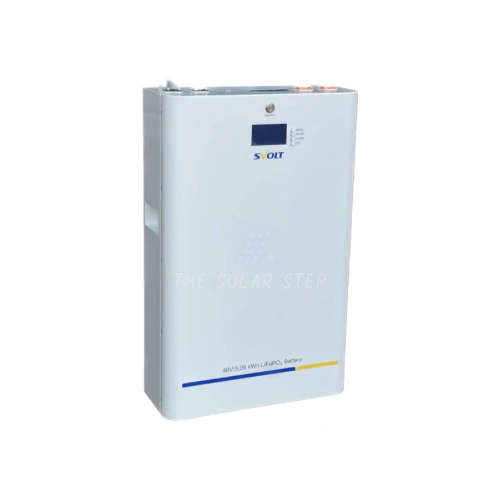

SVOLT 5.09kWh 48V 106Ah LiFePO4 Battery Wall-Mounted Energy Storage Solution

Description:

The SVOLT 5.09kWh 48V 106Ah Lithium Iron Phosphate (LiFePO4) Battery is a high-efficiency and long-lasting energy storage solution designed for residential, commercial, and industrial applications. Developed in collaboration with Haval Motor Group, this battery ensures reliable power for solar energy systems, electric vehicles (EVs), telecommunications, and backup power solutions.

Key Features:

• Energy Storage Capacity: 5.09kWh with high energy density (5.427kWh/m³) for maximum efficiency.
• Wall-Mounted Design: Space-saving installation for clean and organized setups.
• Advanced LiFePO4 Chemistry: Ensures stability, safety, and a long lifespan.
• Battery Management System (BMS): Built-in protection against overcharging, over-discharging, overheating, and short circuits.
• Long Cycle Life: Supports up to 6,000 cycles at 80% Depth of Discharge (DoD) for extended durability.
• High Efficiency: 99% round-trip efficiency with low self-discharge (<3% per month).
• Robust Power Output: 100A continuous discharge with a 150A peak discharge current for high-demand applications.

Technical Specifications:

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 48V
• Nominal Capacity: 106Ah
• Terminal Type: M6 (Torque: 8.5NM)
• Charging Temperature: 20°C to 65°C
• Storage Temperature: 0°C to 50°C
• Max Continuous Discharge Current: 100A
• Peak Discharge Current: 150A
• Dimensions: 688mm x 447mm x 211mm
• Weight: 49.5kg

Warranty & Installation Requirements:

• 5-Year Standard Warranty included.
• Installation must be carried out by a certified electrical wireman or master electrician.
• A valid Certificate of Compliance (COC) must be issued post-installation, ensuring compliance with SANS 10142 standards.
• Warranty claims require installation photos, a valid COC, and proof of installation by a certified professional. Failure to comply may result in a voided warranty.
