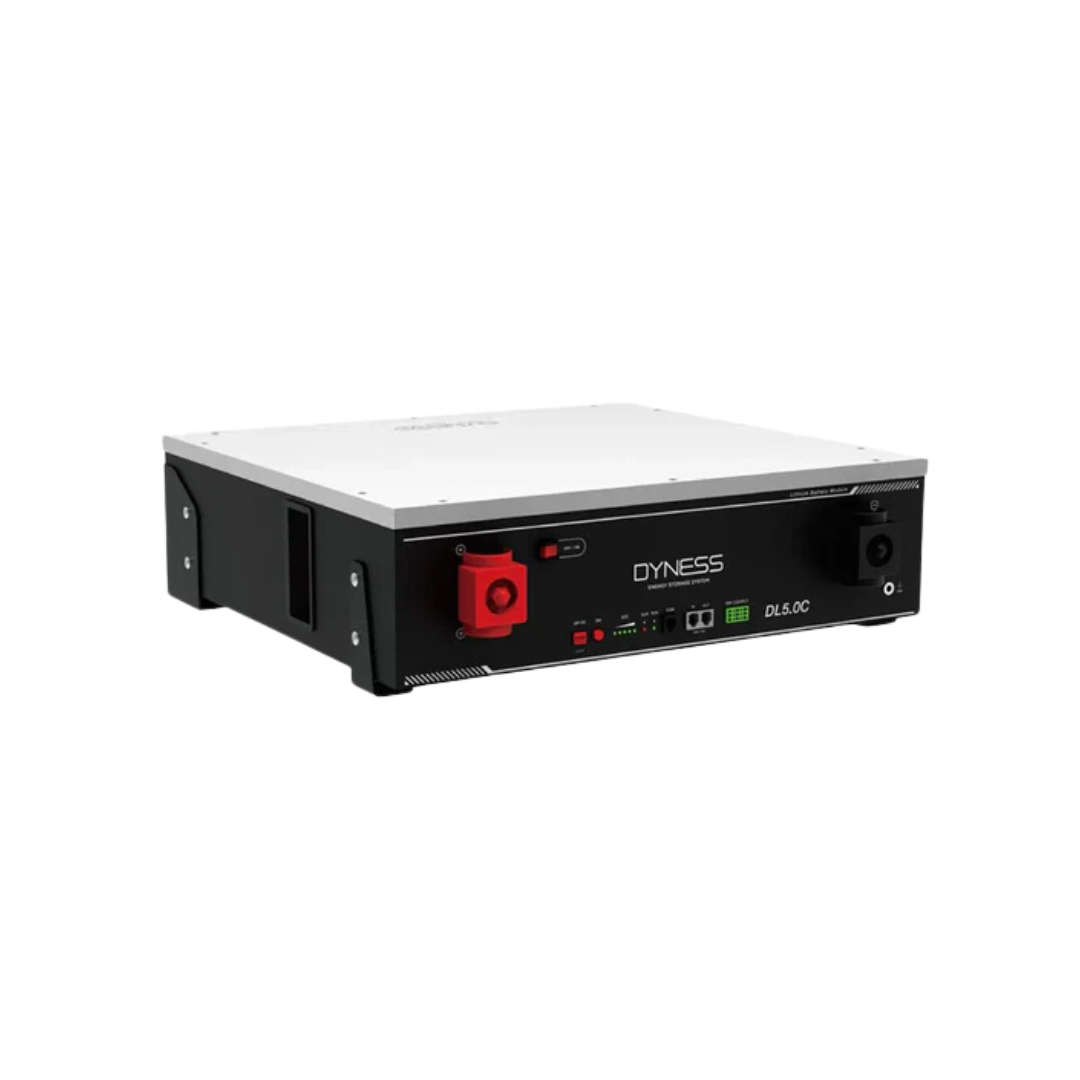

5.12kWh DYNESS DL5.0C LiFeP04 Lithium Battery

DL5.0C 5.12kWh 51.2V LiFePO Battery Compact & Scalable Storage

1 C DYNESS LITHIUM BATTERY

Description:

Advanced Lithium Power for Modern Solar Systems
The DL5.0C LiFePO battery delivers 5.12kWh of stable energy with high efficiency and robust cycle life. Engineered for residential and commercial solar storage, it supports both hybrid and off-grid applications. Its modular design enables scalable configurations for expanding energy needs.

Key Features:

High-Performance Energy Storage

-Nominal Energy Output: 5.12kWh

-Capacity: 100Ah

-Nominal Voltage: 51.2V

-Depth of Discharge (DOD): 90%

-Operating Voltage Range: 44.8V to 57.6V

-Cycle Life: 6000 cycles (0.5C at 80% DOD)

Efficient Charging & Discharging

-Recommended Charge/Discharge Current: 50A

-Max Charge Current: 75A

-Max Discharge Current: 100A

-Peak Current: 110A for 15 seconds

-C-Rate: 0.5C standard, 1C max discharge

Built for Versatility and Scale

-Supports hybrid and off-grid setups

-Expandable up to 50 units in parallel

-Compact and wall-mountable (Dimensions: 558×545×150 mm)

-Net Weight: 54kg

Smart Operation & Protection

-Communication Interfaces: CAN, RS485, RS232

-Protection Level: IP20

-Charging Temperature: 055°C (with heating function down to -20°C)

-Discharging Temperature: -2055°C

Certified for Safety and Reliability

-Safety Standards: UN38.3, CE-EMC, IEC62619, CEI-021

Warranty & Installation Compliance

To qualify for warranty support, the DL5.0C battery must be installed by a registered wireman or master electrician. Installation must comply with SANS 10142 regulations and include a valid Certificate of Compliance (COC). Warranty claims require proof of compliant installation and documentation.
