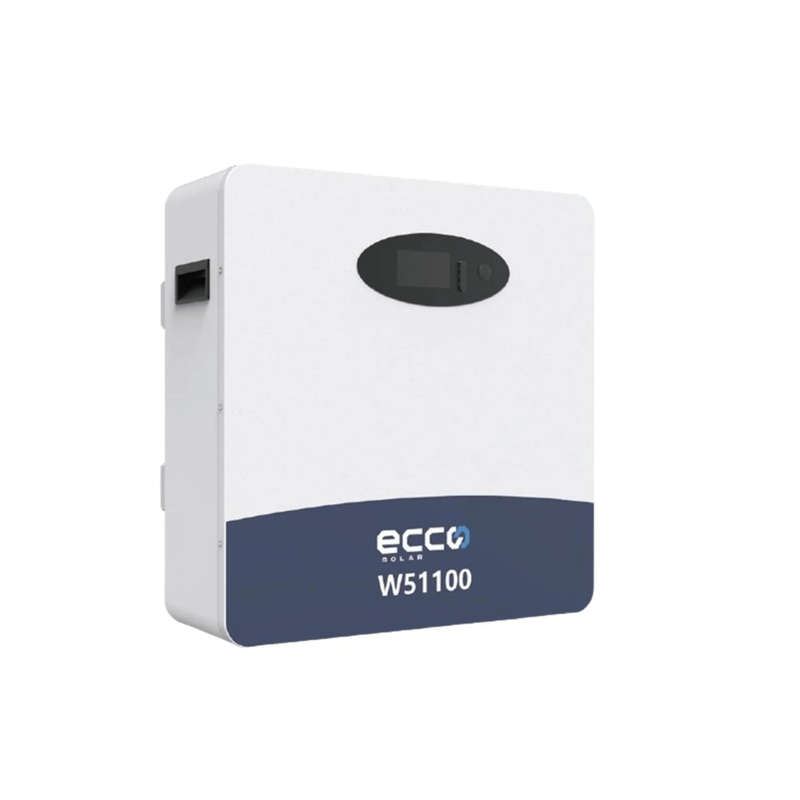

5.12kWh Ecco Lithium Battery 51.2V 100AH (W51100) Wall-Mount

ECCO 5.12kWh 51.2V 100Ah LiFePO4 Wall-Mounted Lithium Battery Scalable Energy Storage

Description:

The ECCO 5.12kWh 51.2V 100Ah Lithium Iron Phosphate (LiFePO4) Battery is a reliable and long-lasting energy storage solution designed for solar, backup power, and off-grid applications. Engineered for high performance and safety, this wall-mounted battery is compact, easy to install, and compatible with multiple inverter brands.

Key Features:

• Efficient Energy Storage: 5.12kWh capacity with 100Ah nominal rating for stable and reliable power.
• Space-Saving Wall-Mount Design: Compact form factor for a clean, efficient installation.
• Advanced LiFePO4 Battery Technology:
  • Ensures longer cycle life with up to 20x the lifespan of lead-acid batteries.
  • Safer chemistry reduces the risk of combustion or explosion.
• High Power Output:
  • Maximum Continuous Output Power: 5,500W
  • Peak Output Power: 7,500W
• Scalability & Compatibility:
  • Supports up to 16 parallel connections for expandable storage capacity.
  • Compatible with multiple inverter brands for seamless integration.
• Durability & Safety:
  • IP54-rated enclosure for protection against dust and water splashes.
  • Built-in short circuit protection, overcharge/discharge safeguards, and thermal management.
• Optimized Charging & Discharging:
  • Bulk Charge Voltage: 56.4-56.6V
  • Float Charge Voltage: 54V
  • Cut-Off Voltage: 47V
  • Maximum Charging Voltage: 57.6V

Technical Specifications:

• 5.12kWh Ecco Lithium Battery 51.2V 100AH (W51100) Wall-Mount
• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Best Operating Voltage Range: 43V - 54.5V
• Maximum Continuous Discharge Current: 100A
• Enclosure Protection: IP54
• Communication Protocols: RS485, RS232, CAN
• Design Life: 15 years
• Dimensions (Max Installation): 480mm x 170mm x 500mm
• Package Dimensions: 590mm x 290mm x 615mm
• Weight: 49kg

What's in the Box?

• 1 x ECCO 5.12kWh 51.2V 100Ah Lithium Iron Phosphate Battery
• 1 x Battery Cables
• 1 x User Manual

Warranty & Installation Requirements:

• 5-Year Warranty included.
• Installation must be performed by a qualified electrical wireman or master electrician registered with the Department of Labour.
• A valid Certificate of Compliance (COC) must be issued after installation, ensuring adherence to SANS 10142 standards.
• Warranty claims require installation photos, a valid COC, and proof of installation by a certified professional. Failure to comply may void the warranty.
