5.12kWh Hubble AM-5 LiFePO4 51.2V Battery

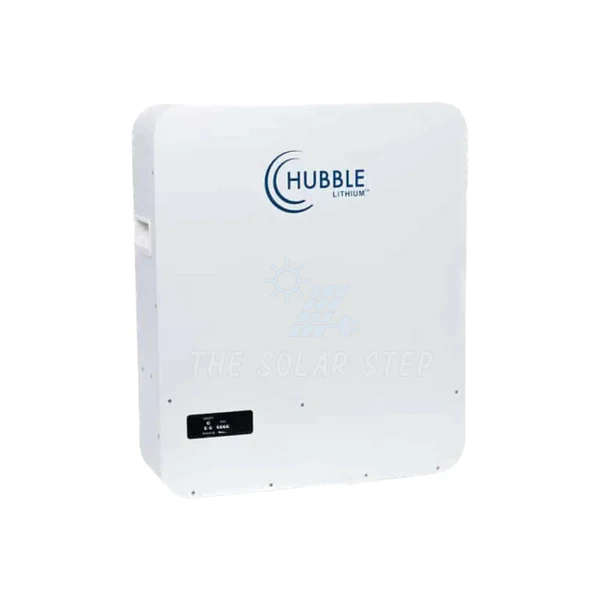

Hubble AM-5 5.12kWh 51.2V LiFePO4 Battery Wall-Mounted Smart Energy Storage

Description:

The Hubble AM-5 5.12kWh 51.2V Lithium Iron Phosphate (LiFePO4) Battery is a high-performance energy storage solution designed for solar, backup power, and off-grid applications. Featuring prismatic LiFePO4 cells and real-time monitoring via Hubble Cloudlink, this battery offers enhanced efficiency, long cycle life, and seamless integration with leading inverters.

Key Features:

• Reliable Energy Storage: 5.12kWh capacity with 100Ah nominal rating for consistent power supply.
• Smart Monitoring: Hubble Cloudlink integration allows for real-time remote monitoring and performance tracking.
• Advanced Battery Management System (BMS):
  • Built-in overcharge, over-discharge, and over-temperature protection.
  • Current limiting function enhances battery longevity and safety.
• Scalable Energy Solution: Supports parallel connection of up to 8 battery packs with full communication.
• Flexible Installation Options: Can be wall-mounted or installed on a shelf/rack.
• High Power Output:
  • Maximum Continuous Charging Current: 100A
  • Maximum Continuous Discharging Current: 100A
• Optimized Efficiency:
  • Low self-discharge rate ensures minimal energy loss.
  • High energy density and conversion efficiency for maximum performance.
• Durable & Safe Construction:
  • Enclosed in a white bake lacquer steel case for enhanced durability.
  • Electronic circuit breaker & BMS voltage protection for added safety.
• Seamless Inverter Compatibility: CAN Bus integration ensures smooth communication with leading inverter brands.

Technical Specifications:

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Rated Capacity: 100Ah
• Total Energy Storage: 5.12kWh
• Equalized Charge Voltage: 55.2V
• Cycle Life: Unlimited cycles within the Hubble 10-year warranty (T&Cs apply)
• Enclosure Protection: CE IEC UN38.3 certified
• Parallel Expandability: Up to 8 battery packs with full communications
• Communication Protocols: CAN Bus, Battery Link Ports
• Dimensions: 509.62mm x 173mm x 599.67mm
• Weight: Approx. 51kg
• Operating Temperature Range:
  • Charging: -10°C to +50°C
  • Storage: 10°C to +50°C
  • Humidity: 15% to 75%

What's in the Box?

• 1 x Hubble AM-5 5.12kWh 51.2V LiFePO4 Battery
• Battery Link & Communication Ports
• Rawl Bolts & Wall Bracket for Installation

Warranty & Installation Requirements:

• 10-Year Warranty with unlimited charge-discharge cycles (T&Cs apply).
• Installation must be performed by a qualified electrical wireman or master electrician.
• A valid Certificate of Compliance (COC) must be issued after installation, ensuring compliance with SANS 10142 standards.
• Warranty claims must include installation photos, a valid COC, and proof of installation by a certified professional.
