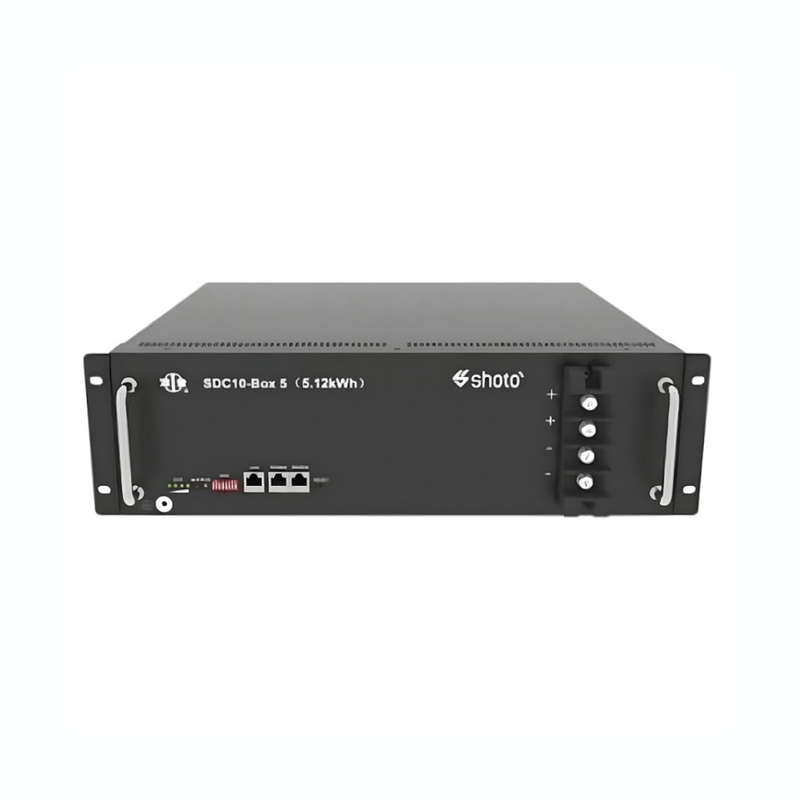

5.12kWH Shoto 48V 100AH Lithium Ion Battery (SDC10-Box 5)

Shoto 5.12kWh 48V 100Ah Lithium-Ion Battery Scalable Rack-Mounted Energy Storage

Description:

The Shoto 5.12kWh 48V 100Ah Lithium-Ion Battery is a high-performance energy storage solution designed for solar, backup power, and off-grid applications. With a modular rack-mounted design, wide inverter compatibility, and long cycle life, this battery is ideal for residential and commercial use.

Key Features:

• Reliable Energy Storage: 5.12kWh nominal capacity with 90% Depth of Discharge (DoD) for optimized efficiency.
• Scalable System Design: Supports parallel expansion of up to 20 units, allowing increased storage capacity as needed.
• Long Lifespan:
  • Over 5,000 cycles at 90% DoD.
  • 10+ years design life for long-term reliability.
• Multiple Installation Methods:
  • Rack-mounted, wall-mounted, or stacked mounting options for flexible installation.
• High Power Output:
  • Recommended Charge/Discharge Current: 50A (0.5C).
  • Maximum Charge/Discharge Current: 100A (1C).
• Advanced Battery Management System (BMS):
  • Built-in protection against overcharging, over-discharging, and overheating.
  • Supports CAN & RS485 communication for real-time monitoring and system integration.
• Wide Compatibility: Works seamlessly with major inverter brands, including Deye, Goodwe, Luxpower, Victron, SMA, Growatt, Sofar, SRNE, TBB, Megarevo, Solis, Voltronic, and Epever.
• Durable & Safe Construction:
  • IP20-rated protection against dust and physical damage.
  • Certified to UL1972, IEC62619, CE, UN38.3, and CEI 0-21 safety standards.

Technical Specifications:

• Battery Type: Lithium-Ion (Li-Ion)
• Nominal Voltage: 48V
• Nominal Capacity: 100Ah
• Usable Capacity: 4.1kWh (recommended), 5.12kWh (maximum)
• Charge Voltage Range: 54.0V - 56.4V
• Discharge Voltage: 51.2V
• Communication Ports: CAN & RS485
• Enclosure Protection: IP20
• Operating Temperature Range:
  • Charge: 0°C to +45°C
  • Discharge: -20°C to +35°C
  • Storage: -20°C to +35°C
• Weight: 40kg
• Dimensions: 443mm x 135mm x 440mm

What's in the Box?

• 1 x Shoto 5.12kWh 48V 100Ah Lithium-Ion Battery
• Battery Cables & Mounts

Warranty & Installation Requirements:

• 5-Year Warranty included.
• Installation must be performed by a qualified electrical wireman or master electrician registered with the Department of Labour.
• A valid Certificate of Compliance (COC) must be issued post-installation to ensure compliance with SANS 10142 standards.
• Warranty claims require installation photos, a valid COC, and proof of installation by a certified professional. Failure to comply may result in a voided warranty.
