5-1500MHz Gain 20dB High Frequency Broadband RF Amplifier Gain Module
New
20 were available
R506.00
0% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 12 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
Replacement Guarantee:
7 Days: We stand by this guarantee
Get it now, pay later
Product details
Condition
New
Location
International
Bob Shop ID
638870058

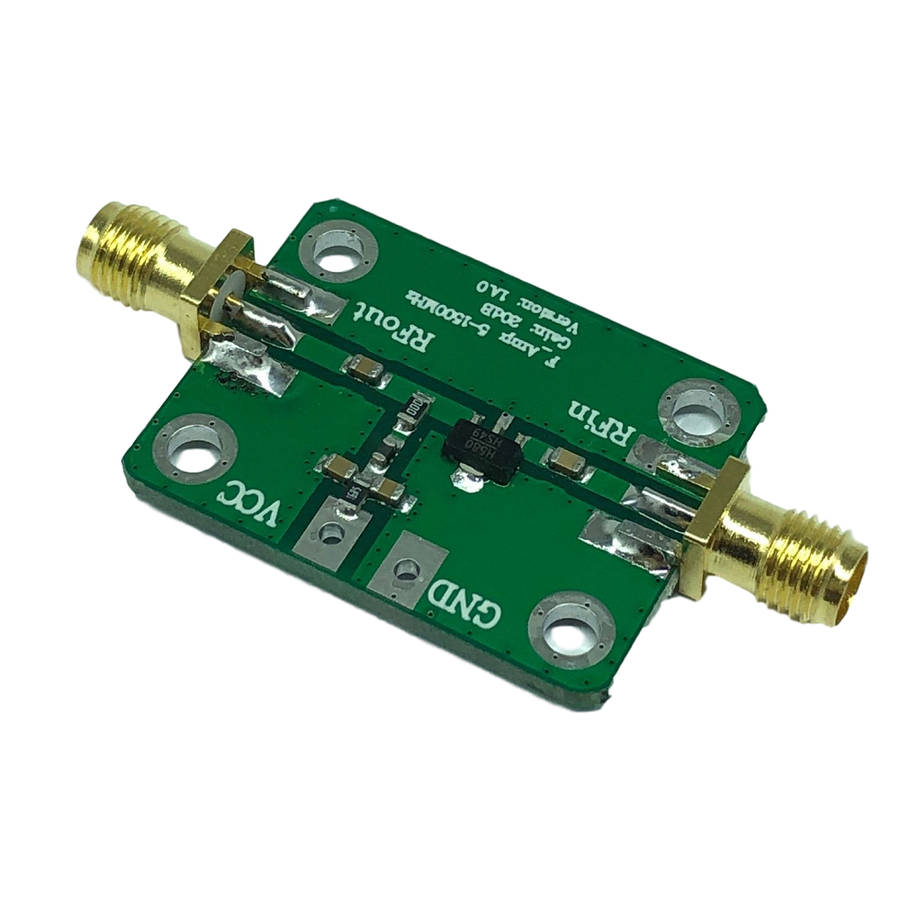

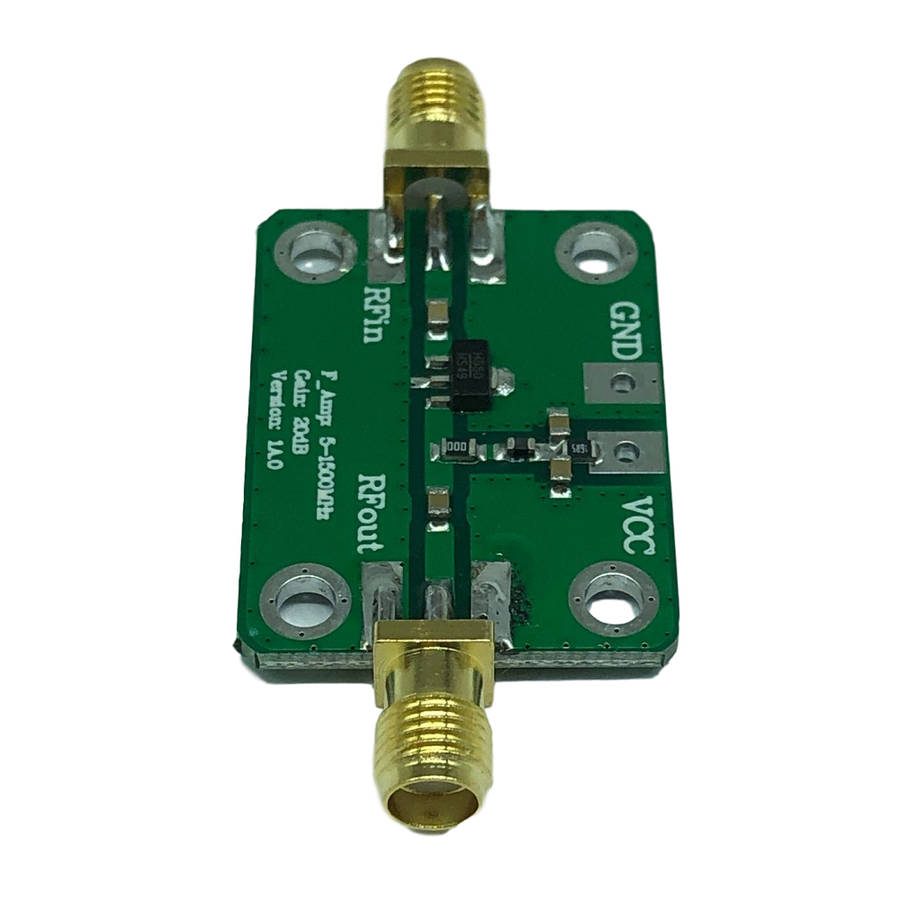

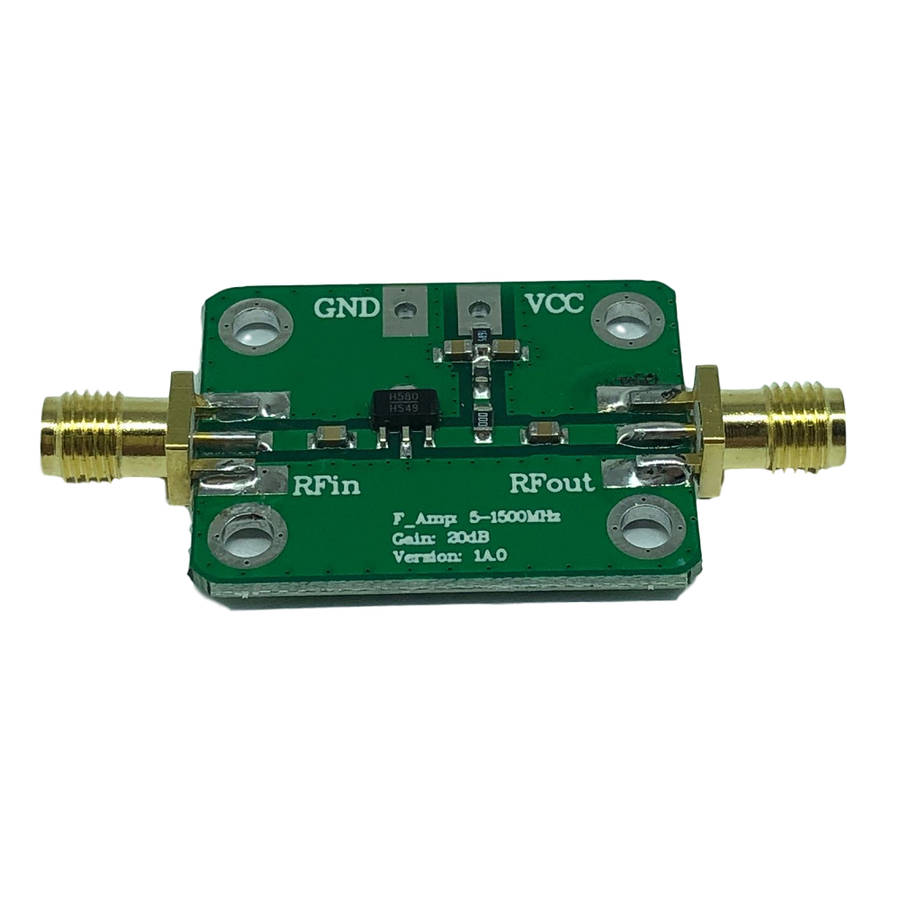

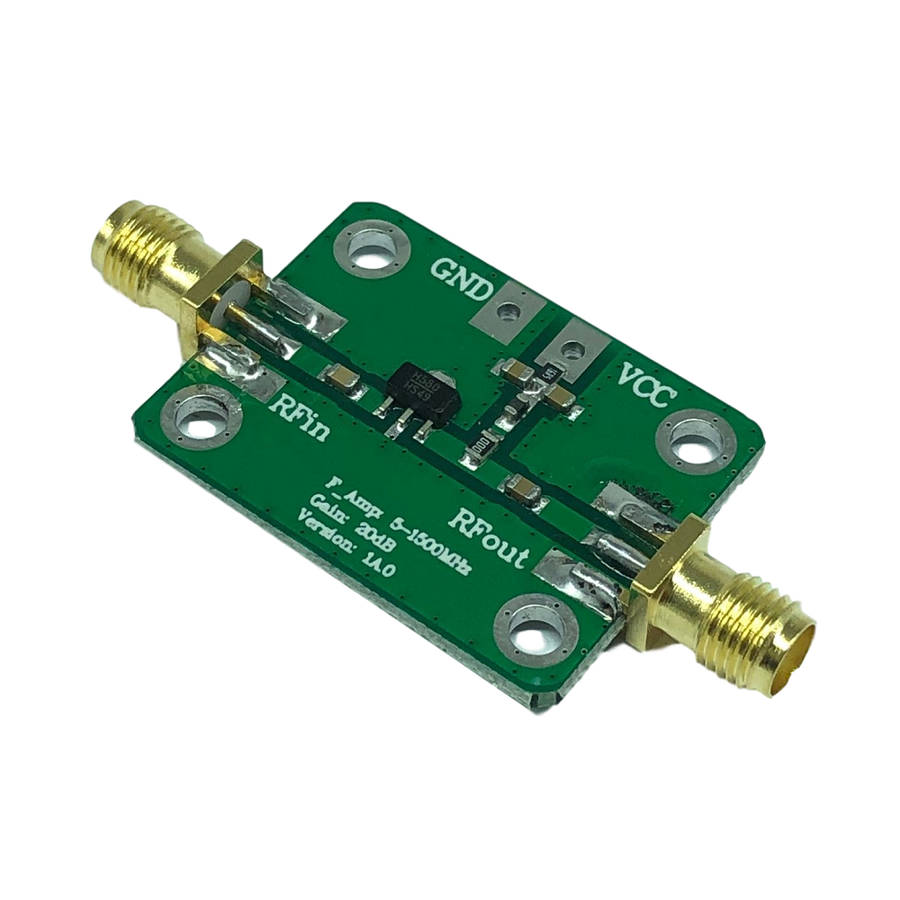

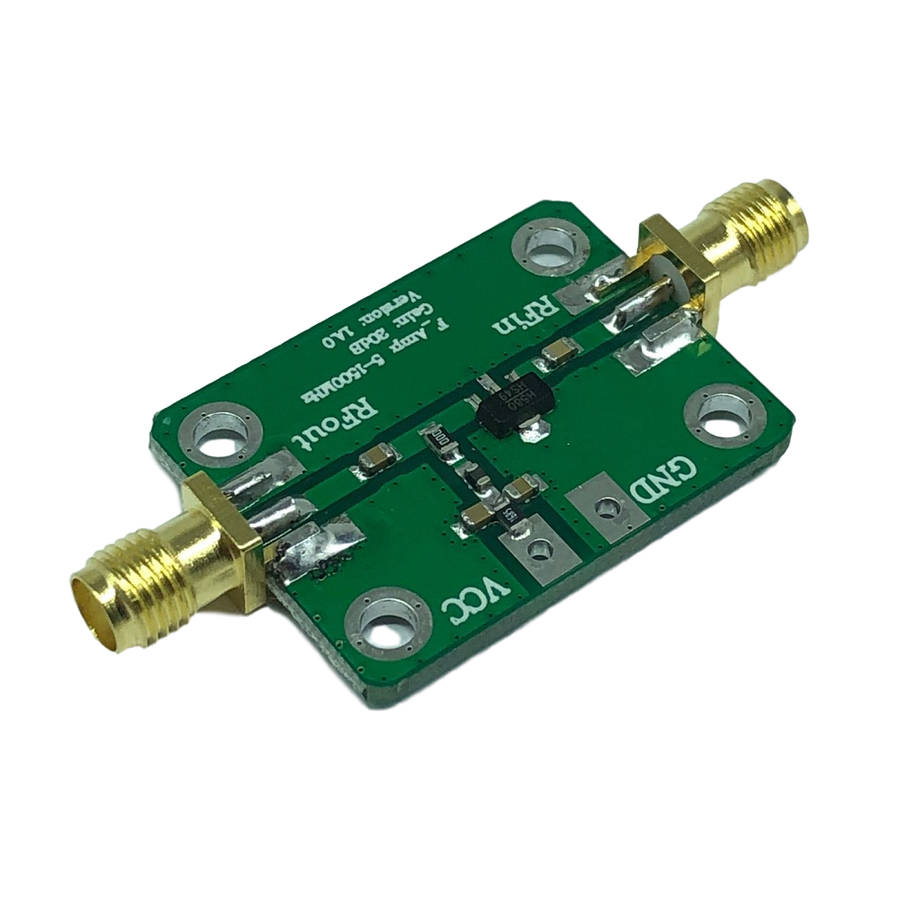

Description: The amplifier is a 5--1500MHz (20dB) amplifier with a large dynamic range and is suitable for fixed gain amplification of radio frequency signals. Parameter: Working frequency: 5-1500MHz Power gain: 20dB Maximum output power: +20dBm (100mW) @1dB compression point Working current: 85mA Power supply voltage: 5V DC System impedance: 50 ohms Product size: 32**24MM Product weight: 10 grams Package included: 1 xRF Amplifier
