5.1CH 1080P HD to HD SPDIF RCA L/R Audio Splitter Extractor Converter
Features:

One HD input converted to one HD+ Audio (SPDIF+R/L)output
Output audio support: SPDIF+R/L analog Audio Output
Input Resolution: up to 1080P(50/60Hz)/720P/480P
LED indication: when source or sink is working, LED relative to is light

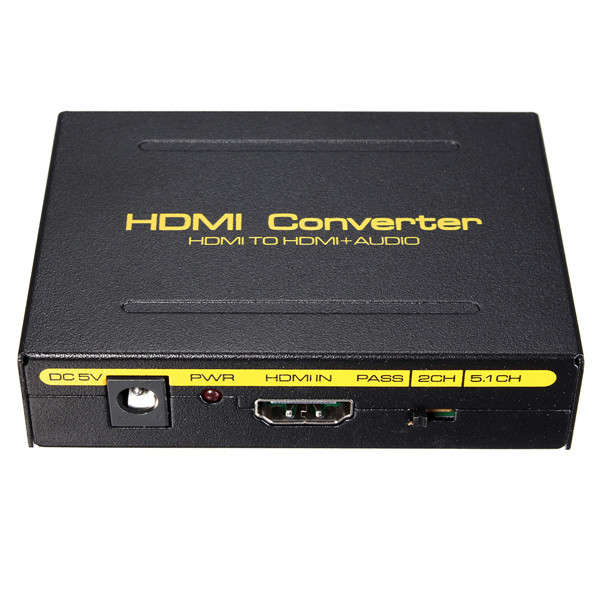

Realize audio sync separator outputs function,which has cPASS, 2.0CH, 5.1CH three audio modes to be chosen
No loss of quality
Easy to install and use
Need DC 5V 1A power supply

Specification:

HD resolution	1080P/1080i/720p/576p/576i/480p/480i

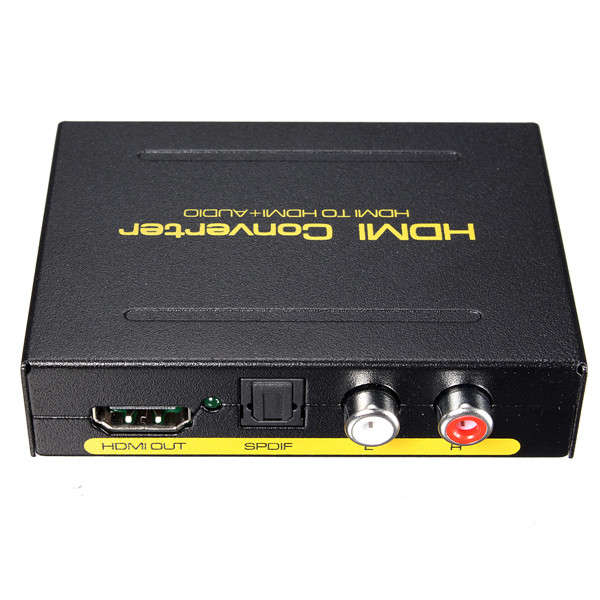

Audio output	L/R+SPDIF
Max bandwidth	225MHz
Max baud rate	6.75Gbps
Input/Output TMDS signal	0.5~1.5Volts p-p(TTL)
Input/Output DDC signal	5Volts p-p (TTL)
Input cable distance	15m AWG26 HD standard cable
Output cable distance	20m AWG26 HD standard cable
Max working current	500mA
Power adapter format	Input:AC (50HZ, 60HZ) 100V-240V Output: DC5V/1A
Operating Temperature range	(-15 to +55 Degree)
Operating Humidity range	5 to 90%RH (No Condensation)

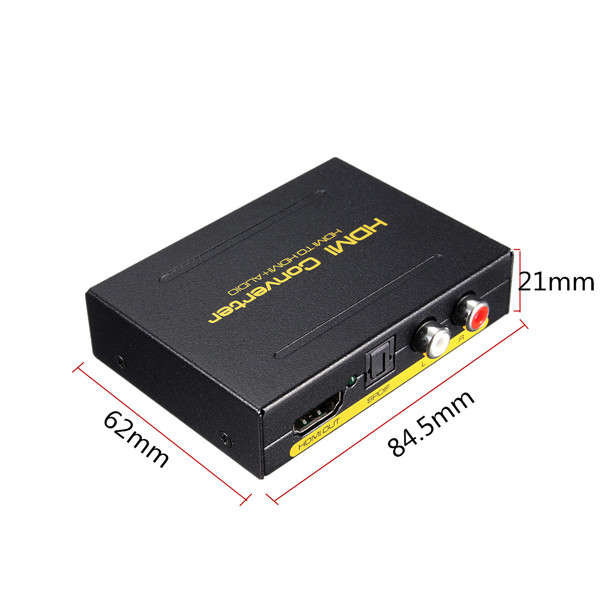

Dimension	84.5 x 62 x 21mm

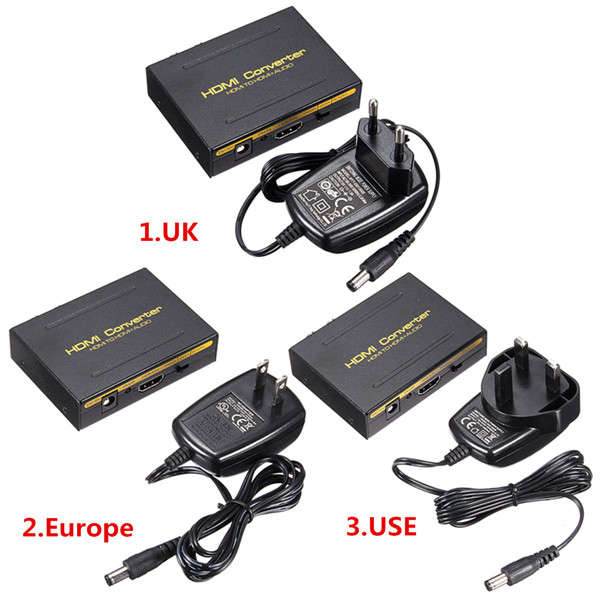

Type of power adapter	UK/EU/US
Adapter cable length	approx. 110cm

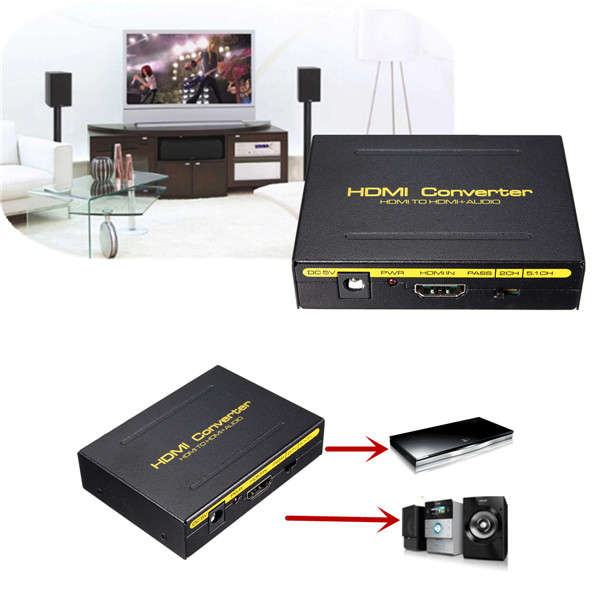

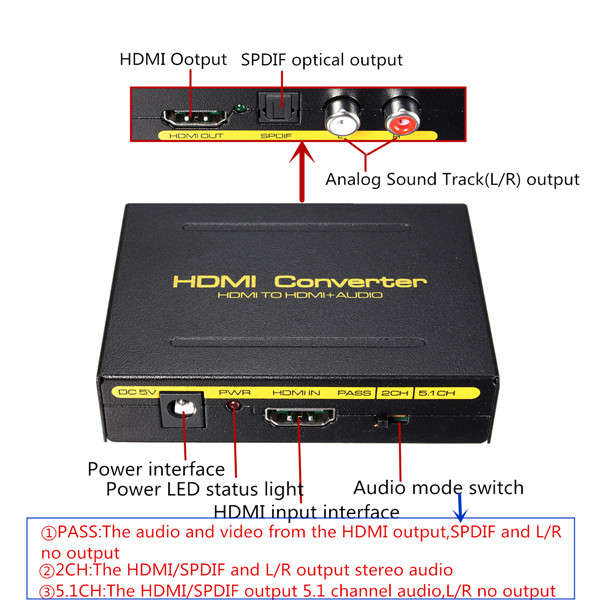

Operating and Connecting:

1. To use one HD cable to connect the HD Source with the input HD port
2. To connect the converter HD output port with the HD Display
3. To use one audio cable to connect the converter R/L port with the audio equipment
4. To use the optical cable to connect the SPDIF port with the audio equipment
5. To connect the converter with 5V DC power adapter

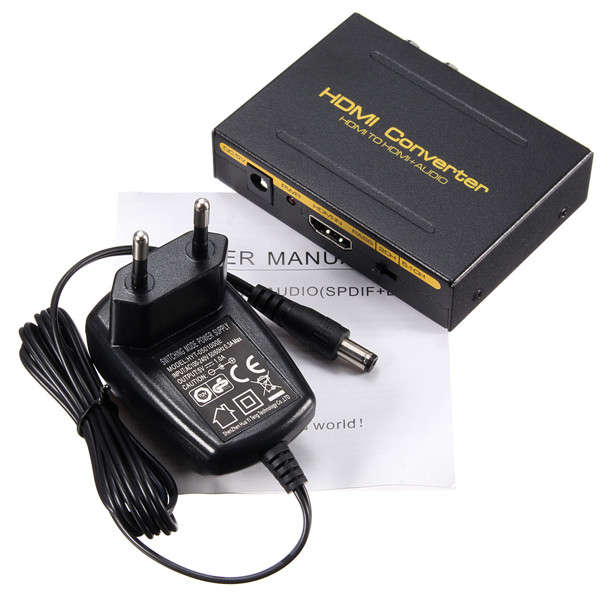

Package Included:

1 x HD TO HD Audio Splitter (SPDIF+L/R)
1 x DC 5V Power Adapter(also comes with a free adapter according to your country)
1 x English User Manual

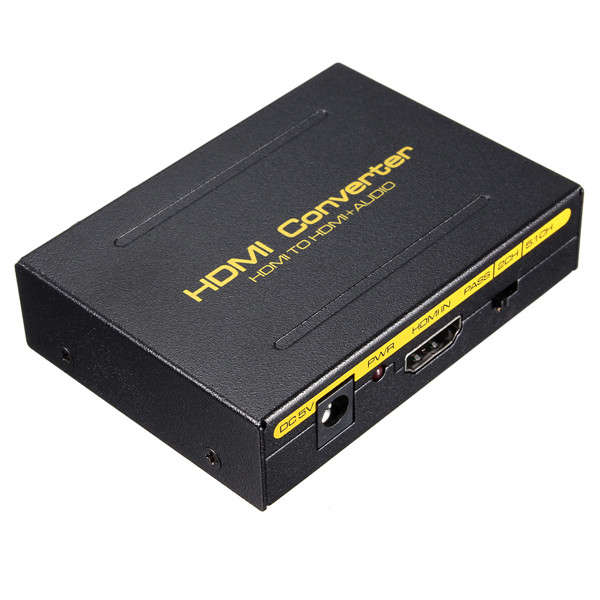

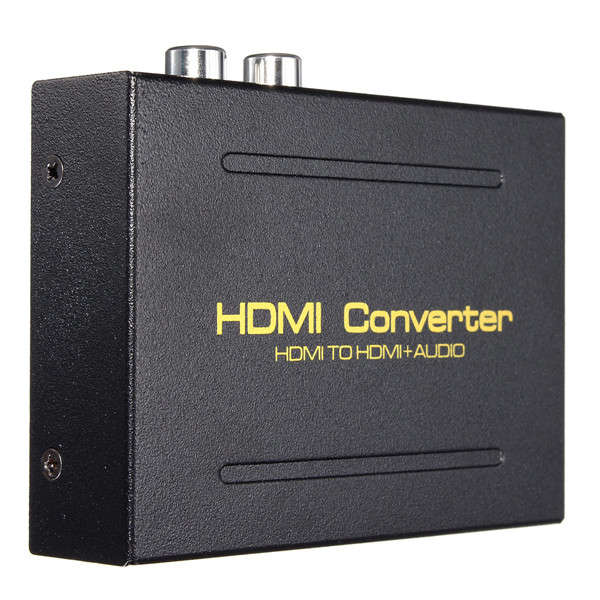

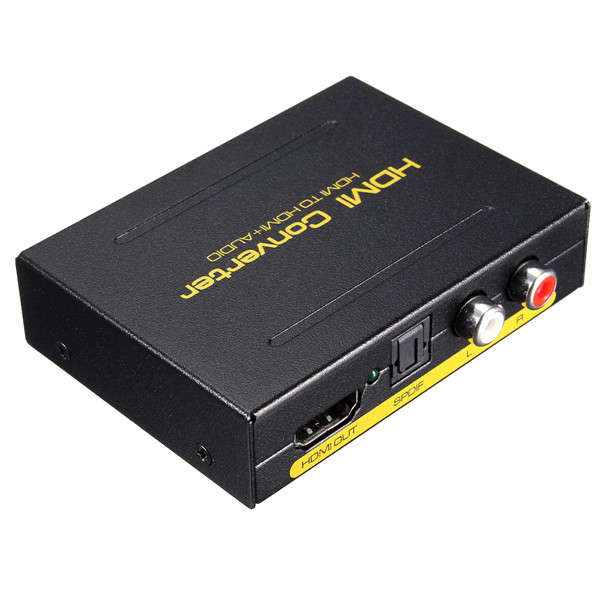

Detail Pictures:
