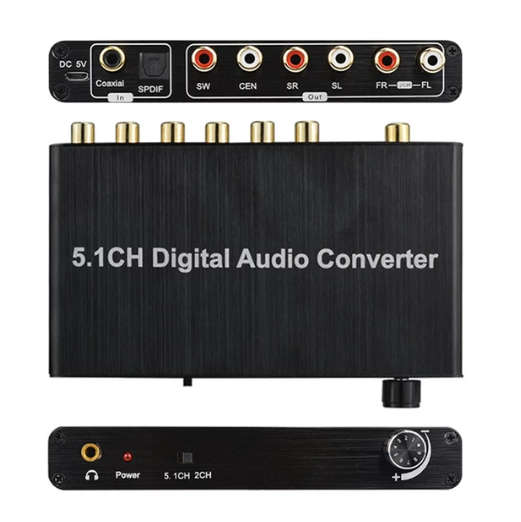

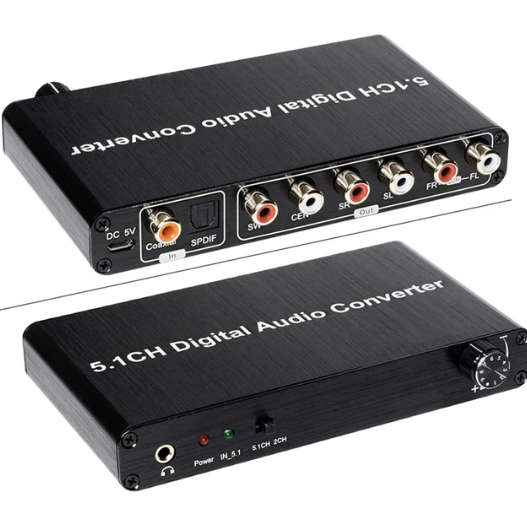

5.1Ch Dac Converter Audio Decoder Ac-3

Built-in high performance RTOS operating system and audio decoder chip, 192KHz / 24Bit; DTS / Dolby AC-3 (LPCM / PCM / RAW) support. support MP3, AC3, DTS, WAV, WMA, AAC, ALAC, FLAC, APE, OGG, M4A

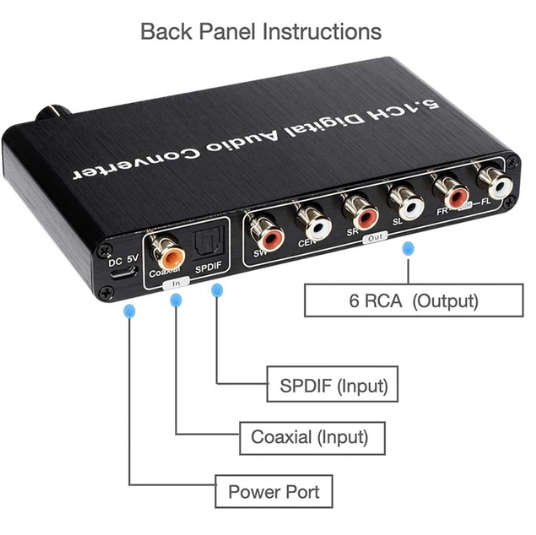

Digital SPDIF (Toslink / Optical) and Coaxial input ports, 6 RCA Cinch channels output (FL, FR, SL, SR, CC, SUB), and 3.5mm stereo headphone port; automatically recognize the input signal and automatically switch between optical and coaxial channel

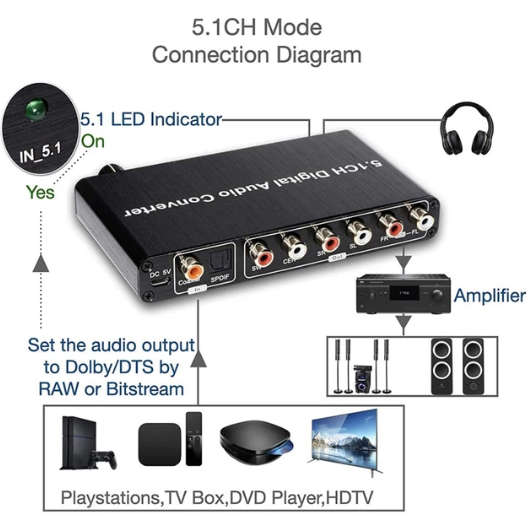

A key switch for 5.1ch / 2.0 channel output; if you have 5.1CH, dial 5.1CH, and make sure your audio source has Dolby or DTS format and proper settings on your devices by RAW or Bitstream

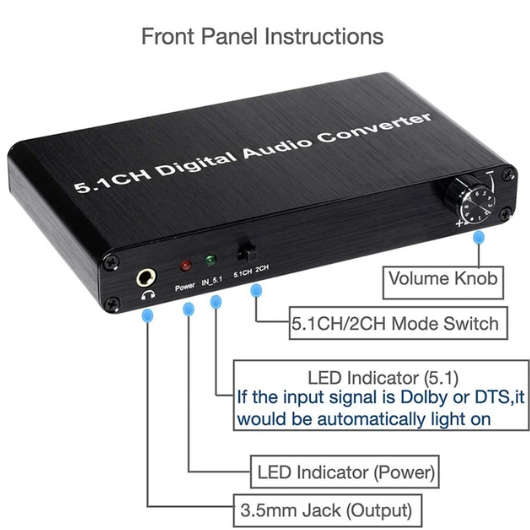

Important Upgrade: By upgrading the products, there is also an LED indicator to check if the signals are 5.1ch or not on the front panel

ONE volume knob to control the output volume, AV Amplifier is still needed

When your volume found is very low, look at the VOLUME OF BOTH your Audio Device and Amplifier. once one of the volume output of an audio device or amplifier is very low or in minimum status, the whole volume would also be very low

Anti-interference, small housing, and metal housing

Support for network player, HDTV, Blu-ray DVD, DVD, DM500S, DM800HD, game player consoles, PlayStation PS2, PS3, PS4 / Pro, One, connect to your AV audio amplifier, receiver?

It is perfect for enjoying digital home theater and surround sound, etc.

Material: Plastic and Metals?

Package Weight:30g

Package Dimensions:19cm x 16cm x 5cm

Package Includes:

1 x 5.1CH DAC Converter Audio Decoder

1 x USB cable

1x Manual
