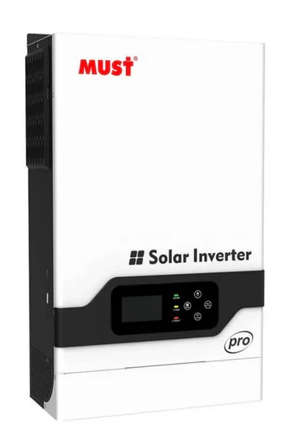

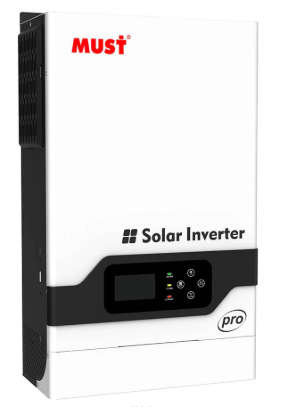

Hybrid Inverter 48V 5.2KVA / 5200W 100A MPPT Solar Inverter -MUST
The Hybrid Inverter 48V 5.2KVA / 5200W 100A MPPT Solar Inverter is a powerful and versatile solution for both residential and commercial solar systems. With pure sine wave output and a built-in MPPT solar charge controller, it maximises solar energy efficiency. The inverter supports flexible charging priorities for your loads and batteries, whether from solar, grid, or both. Featuring a wide PV input range (150V-450V) and smart LCD settings, it delivers reliable power with overload, short circuit, and deep discharge protection. Ideal for off-grid and grid-tied applications, it also supports Wi-Fi remote monitoring (dongle sold separately).You can choose which priority you want to charge your loads / battery whether it Solar or Grid or both
The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which can help you make full use of solar energy.
This inverter can provide power to the loads without a battery
Features:
- Pure sine wave output
- Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
- Built-in MPPT solar charge controller
- MAX PV Array Open Circuit Voltage: 450V
- Can provide the power to the load without battery

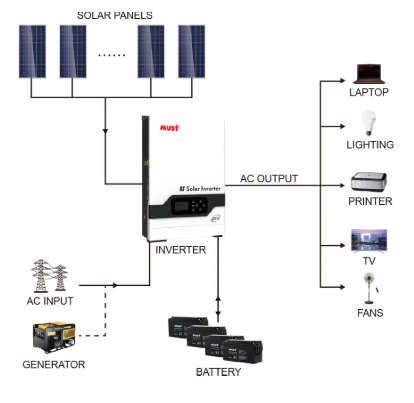

- Combining solar system, AC utility, and battery power source to supply continuous power
- Overload, short circuit and Deep discharge protection
- Cold start function

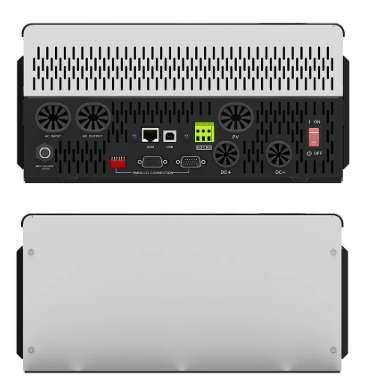

- Support USB, RS485 monitoring function
- WIFI remote monitoring (Purchase WIFI Dongle Separately)
Specifications:
- Rated Power 5200VA/5200W
- Input Voltage 230 VAC
- Frequency Range 50 Hz/60 Hz (Auto sensing)
Output
- AC Voltage Regulation (Batt. Mode) 230VAC 5 %
- Surge Power 10400W
- Efficiency (Peak) 93 %
- Transfer Time 10 ms (For Personal Computers), 20 ms (For Home Appliances)
- Waveform: Pure sine wave
Battery & AC Charger
- Battery Voltage 48 VDC
- Floating Charge Voltage 54.8 VDC
- Overcharge Protection 60 VDC
- Maximum Charge Current 80 A
Solar Charger
- Maximum PV Array Open Circuit Voltage 450 VDC
- Maximum Charging Current 80A
What's in the box
1 x Inverter
1 x User Manual
