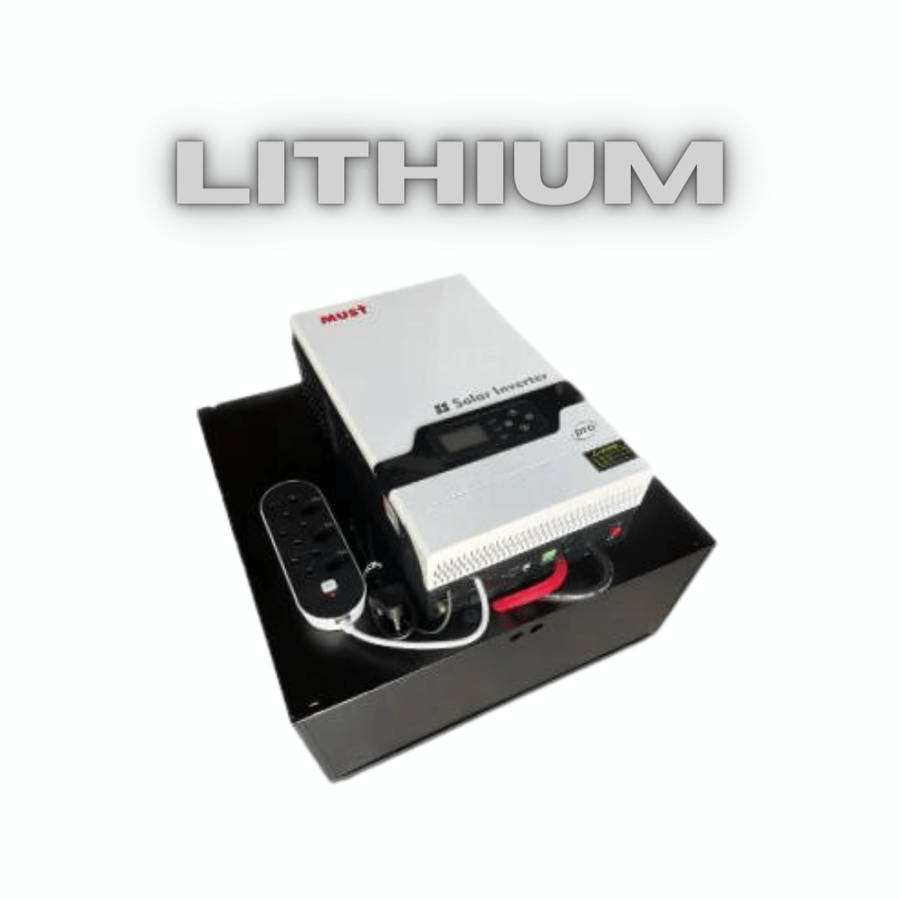

5.2KVA / 5200W MUST Portable Plug And Play Power System + 5.43kWh Lithium Battery / MPPT
Reliable Power Backup for Load Shedding & Off-Grid Use
The MUST 5.2KVA Hybrid Inverter System is a portable, plug-and-play power solution designed to keep essential appliances running during power outages. This all-in-one system is ideal for homes, offices, and businesses, providing seamless power transfer with the ability to integrate solar panels for sustainable energy use.
What's Included?
1x MUST Hybrid Inverter 5.2KVA / 5200W (48V)
1x 5.43kWh Deep Cycle Lithium Battery (100Ah)
1x Heavy-Duty Box with Lock Wheels
1x Double 3-Point Plug Socket
2x Solar Panel Connectors (Male & Female)
1x Battery Fuse + Disconnector
1x Power Cable with Surge Protection
Key Features:
Hybrid Solar Inverter Combines solar, battery, and grid power for continuous energy supply
Built-in MPPT Solar Charge Controller Maximizes solar energy efficiency
Auto Load Transfer Instantly switches to battery power during outages
Battery Charging Flexibility Choose between solar or grid charging
Overload & Short Circuit Protection Ensures device safety
User-Friendly LCD Screen Displays system status and settings
Cold Start Function Allows startup without grid power
Solar Ready Connect solar panels to charge batteries when grid power is unavailable
How Long Will the Battery Last?
Estimated Backup Duration: 14 - 16 hours with a 250W load (TV, WiFi, Lights, etc.)
To extend battery life, keep your inverter plugged in and switched on to maintain full charge at all times.
Hybrid Inverter Specifications (MUST 5.2KVA)
General Specs:
- Model: MUST Hybrid Inverter 5.2KVA / 5200W (48V)
- Rated Power: 5200W
- Input Voltage: 230V AC
- Frequency Range: 50/60Hz (Auto Sensing)
Output (AC Power):
- Nominal Voltage: 220/230V AC ±5%
- Surge Power: 10,400W
- Efficiency (Peak): 93%
- Transfer Time:
- 10ms (Computers & Electronics)
- 20ms (General Appliances)
- Waveform: Pure Sine Wave
Battery & AC Charger:
- Battery Voltage: 48V DC
- Floating Charge Voltage: 54.8V DC
- Overcharge Protection: 60V DC
- Max AC Charge Current: 80A
Solar Charging Features:
- Built-in MPPT Charge Controller
- Max PV Array Open Circuit Voltage: 450V DC
- MPPT Voltage Range: 150 - 430V DC
- Max Charging Current: 80A
- Supports Grid & Solar Charging
- Can Operate Without a Battery
Battery Specifications (Svolt 5.43kWh 51.2V Lithium)
- Battery Type: LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage: 51.2V
- Nominal Capacity: 106Ah
- Energy Density: 5.43kWh
- Terminal Type: M6
- Built-in Battery Management System (BMS) Ensures battery longevity and safety
- Cycle Life: 4,000+ cycles at 80% Depth of Discharge (DOD)
- Max Continuous Charge Current: 100A
- Max Continuous Discharge Current: 100A
- Peak Discharge Current: 120A (5 seconds)
- Operating Temperature: -20°C to 65°C
- Storage Temperature: -10°C to 30°C
- Efficiency (Round Trip): >99.5%
- Mounting Options: Wall-mounted or portable use
Battery Protection Features:
Overcharge & Over-discharge Protection
Temperature Protection
Short Circuit Protection
Voltage Regulation
Communication Port: RS485, CAN, Dry Port
What's in the Box?
1x 51.2V 106Ah Lithium Battery
1x Red (Positive) Battery Cable
1x Black (Negative) Battery Cable
1x Coms Cable
1x User Manual
Why Choose This System?
Reliable Load Shedding Backup Keeps TVs, WiFi, Lights, and Small Appliances running
Plug & Play Convenience Ready-to-use setup with solar-ready expansion
Energy Efficient MPPT solar charging maximizes battery performance
Durable & Portable Design Heavy-duty casing with lockable wheels for easy mobility
Order Now & Ensure Uninterrupted Power at Home or Office!
