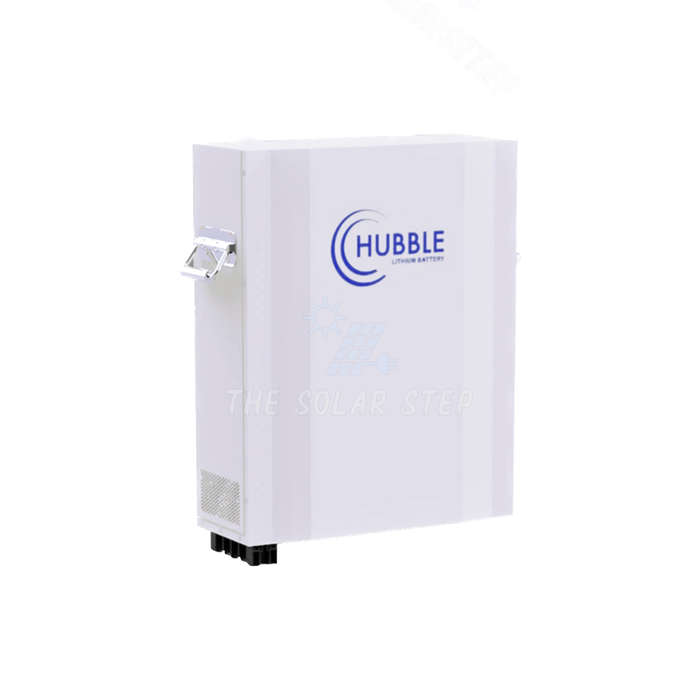

5.5kWh 51V Hubble Lithium Battery Pack AM-2

The AM-2 is our 5.5KWh 48V Lithium pack designed to be easily wall-mounted or shelf installed in a standard rack.

Specification: 48V  5.5KWh
Rating: 1C
Parallel: up to 15 units per string
Extras: Battery Link & DC cables included
Internal Fire Suppression System: Yes
CAN Bus: Yes
Hubble Cloudlink Ready: Yes

Features:

• Low self-discharge

• High cycle and service life

• Easy wall mount or shelf rack installation

• Excellent high temperature performance

• Advanced BMS with current limiting function

• Compatible with most inverters and chargers

• High energy density and conversion efficiency

• Cloudlink integration ready for wifi monitoring

• Complete with integrated Battery Management System

• Heavy duty side handles for easy handling and mounting on the wall

• Built in protection for over-charge, over-discharge & over-temperature

• CAN Bus, fully integrates and communicates with leading Inverter brands

 Technical Specifications:

Rated Capacity (5HR): 116Ah

Nominal Voltage: 48V

Design Capacity: 5.5kWh

Equalised Charge Voltage: 53.8V

Max. Continuous Charging Current: 105A

Max. Continuous Discharging Current: 105A

C Rating: 1.0C

Weight: Approx. 42kg

Display: None

Parallel: Parallel connection up to 15 packs with full communications

Dimensions (WxDxH): 375mm x 145mm x 467mm

Ports: 1 x CAN-bus, 2 x Battery Link Ports

Cells: New Li-ion Prismatic Cells

Design Life: ± 15 years

Cycle Life @ 1C: +/- 6000 cycles @ 50% DOD, Above 3000 cycles @ 100% DOD

Certification: CE, UN38.2, GBT31484-2015, GBT31485-2015, GBT31486-2015

Outer Package Material: White Bake Lacquer Steel Case

Operating Temperature

• Charging: 0°C to 55°C

• Discharging: -20°C to +55°C
