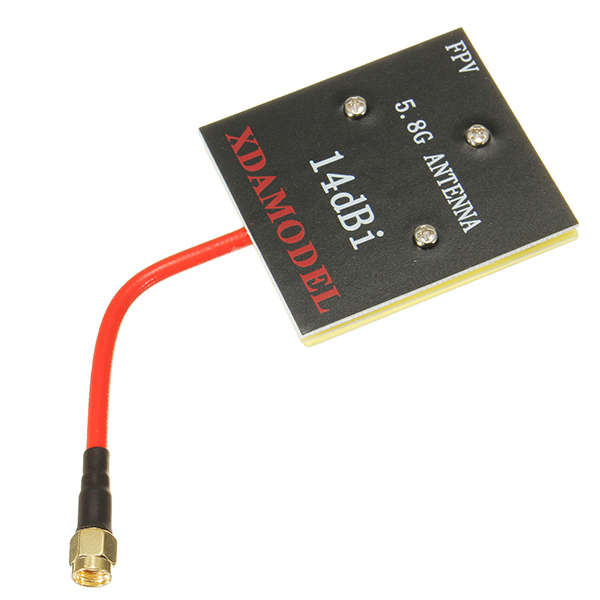

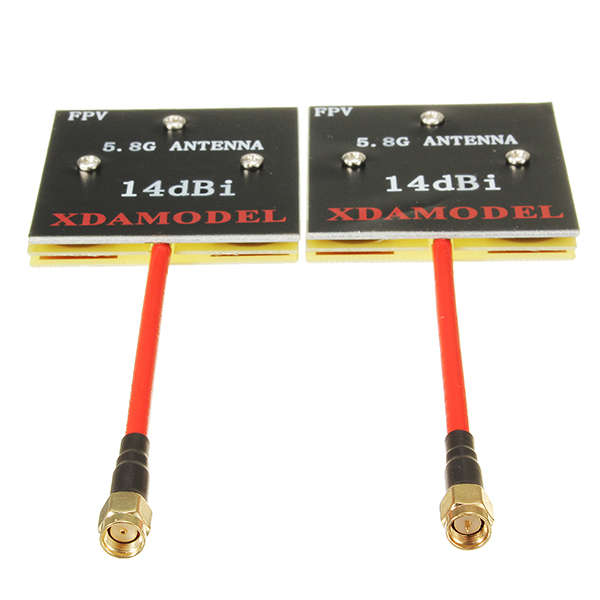

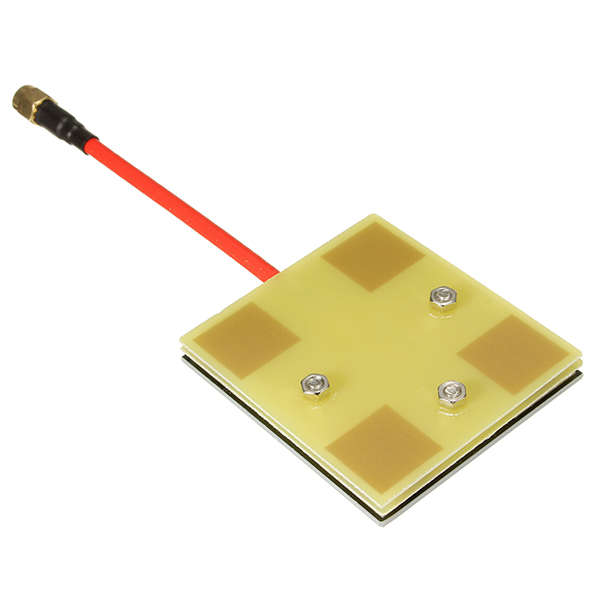

5.8GHz 14db Flat FPV Receiver Antenna SMA RP-SMA Male




Specification:
Frequency range: 5600-5950 MHz
Gain: 14dBi
Standing wave ratio: ≤ 1.5
3dB horizontal lobe width: 40 °
3dB vertical lobe width: 35 °
Polarization: vertical polarization
Before and after ratio: ≥ 25dB
First sidelobe suppression: ≥13 dB
Maximum power: 50 Watt
Impedance: 50 Ω
Lightning protection: DC Grounded
Connector type: RPSMA male (female thread hole)
Antenna size: 60 × 55 × 6mm
Antenna weight: 30g
Antenna material: Imported composite electromagnetic material board

Features:
Using array antenna technology design
Designed for 5600 ~ 5950MHz frequency band design
High gain, low VSWR, antenna structure is small
Imported feeder can be bent at any angle, high strength, simple and easy to use

Package included:
1 x 5.8GHz 14db Flat FPV Receiver Antenna SMA RP-SMA Male
