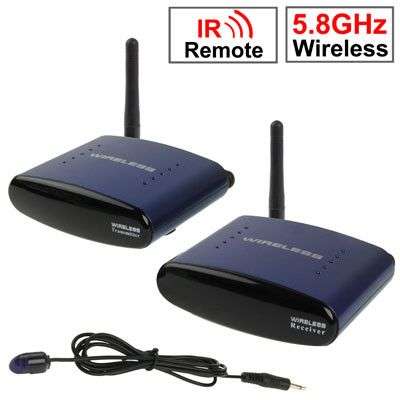

5.8GHz 4 Channels Wireless AV Transmitter & Receiver Compatible with DVD DVR CCD Camera IPTV Sate...

1) Use 5.8GHz ISM frequency band support 4 groups of channels. You can select these channels to avoid interference from signals of a wireless router etc.

2) Wireless transmission is suitable for one-floor or two-floors

3) The transmitter and the receiver are used in the same channel in a pair and can be used in the modes of point-to-multipoint or multipoint-to-multipoint

4) Compatible with DVD DVR CCD Camera IPTV Satellite Set-Top Box and Other AV Output Devices

5) The product is equipped with super strong IR signal transmitting function or used in conjunction with an IR signal extension wire

6) Images received by means of radio are vivid and stable the color is flamboyant and the sound is clear

7) Supports video transmission of PAL / NTSC system and stereo audio transmission

8) Fully hardware designed. There is no need to install software. Plug and play simple and convenient

9) Dimensions: 100 x 85 x 30mm

**Specification:

1) Power input: DC 5V ---1000mW

2) Video input: 1Vp-p (PAL / NTSC)

3) Audio input: 1.5Vp-p (dual channels)

4) Video output: 1Vp-p (PAL / NTSC)

5) Audio output: 1.5Vp-p (dual channels)

6) Transmitting RF:

Transmission frequency: 433.92MHz200KHz Super heterodyne

Carrier frequency: 38KHz

IR signal receiving: <= 10m

7) Receiving RF:

Transmission frequency: 433.92MHz500KHz Super heterodyne

Carrier frequency: 38KHz

IR signal receiving: <= 5m

8) Maximum Transmission Distance: 200m
