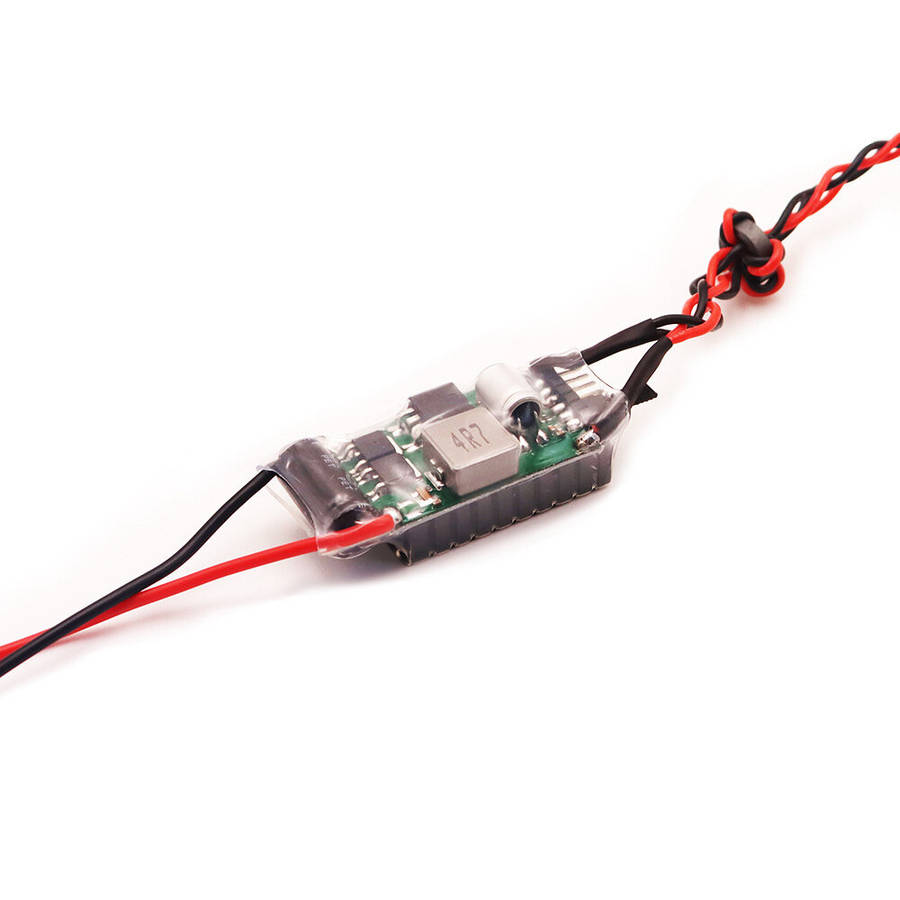

5-9V - JDHMBD 20A High Current BEC Step-down Module SBEC UBEC External Power Supply Input 6-50V Supp

Specification:

Output Voltage:
Optional 1: 7.4V/8.4V/9.0V/12V
Optional 2: 5V/5.5V/6V/7V/9V
Output Current: 0-20 amps
Input: 6V - 50.4V (2-12S lithium battery)
Quiescent current: 60A, 200A
Size: 62mm*26mm*21MM (length*width*height)
Weight: 30g

Features:

1. Adopting the world's most advanced switching power supply main control chip design, with ultra-low impedance high-power FET, with over-current protection function;

2. Small size, light weight, maximum output current of 20A, and extremely strong load capacity. It is the first domestic UBEC with high current output;

3. Using high-power brand components, product performance is stable and excellent;

4. Output voltage can be selected by short-circuit plug (jumper);

5. The dual-wire output is equipped with a professional filter magnetic ring, which greatly reduces electromagnetic interferen
