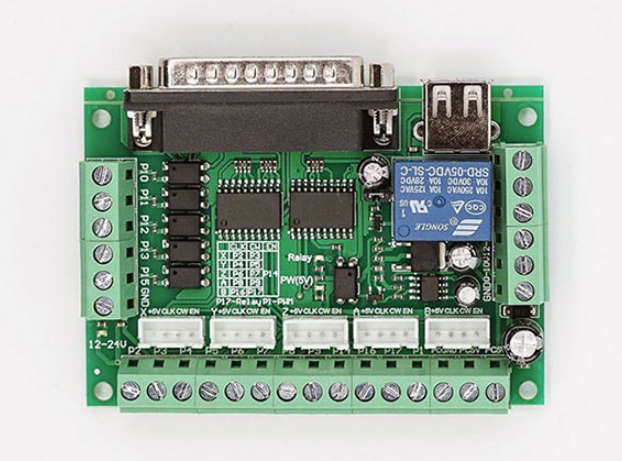

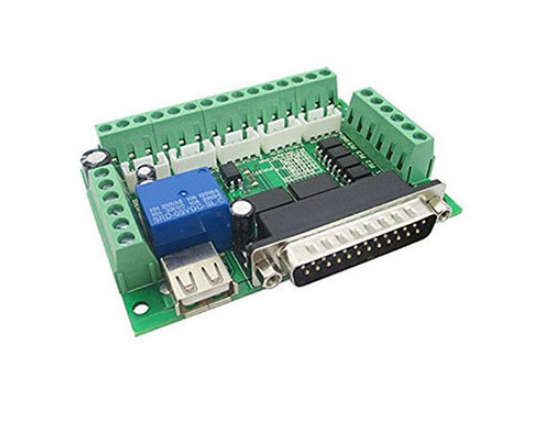

5 Axis Mach 3 Breakout Board

Mach3 Engraving Machine 5-Axis Stepper Motor Driver Interface Board With Optoscoupler Iolation

Fully support MACH3 and other computer software that supports parallel port control.
Separate USB power supply and peripheral power supply to ensure computer safety.
External wide voltage input, 12-24V, and anti-reverse connection function.
All input signals are isolated by optical coupling, which can be connected to emergency stop, tool setting, limit, etc., to ensure computer safety.
One relay output port can control the spindle switch. The output port is P17 port.
A 0-10V analog voltage output isolated by optocoupler can control the inverter with corresponding analog interface to control the spindle speed. The output port is P1 port.
Open all 17 ports, which can be connected to a driver with optocoupler, and can control a 5-axis stepper motor.
As PWM output, P1 can control spindle speed regulator that is equipped with optical coupler.
Connection with 5V input drivers that has common cathode or anode is supported.
