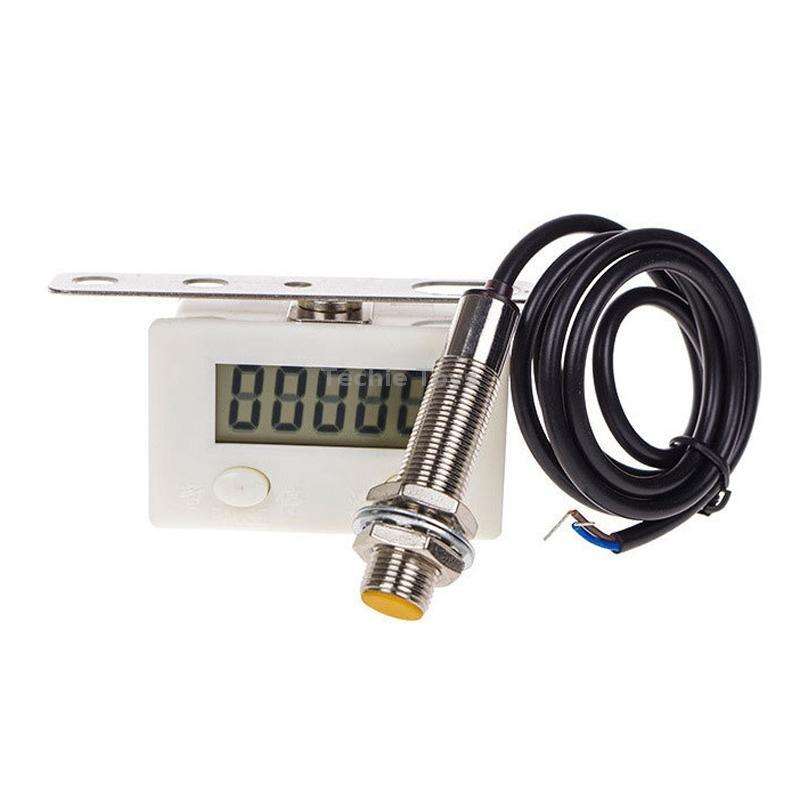

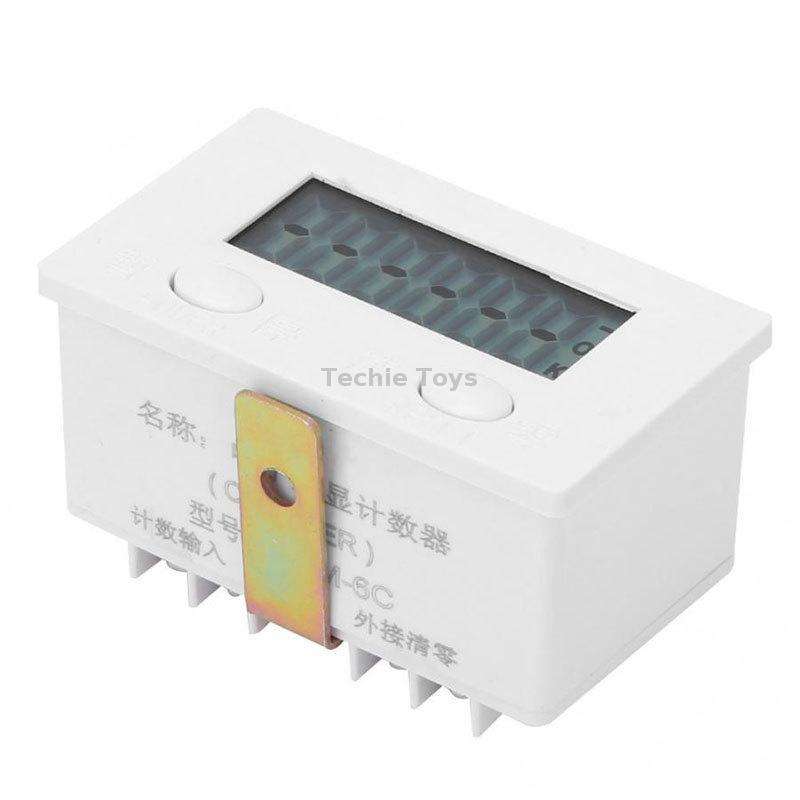

5 Display Electronic Digital Counter Industrial Magnetic Sensor Switch Punch Counter ,Spec: With Nickel-plated Copper Sensor

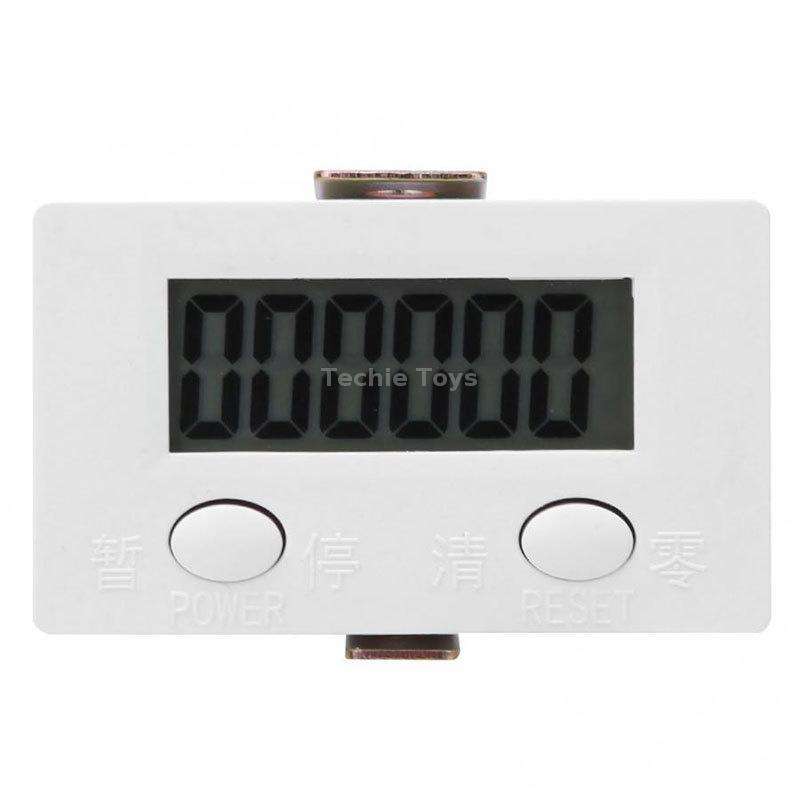

1. Five-digit large-screen LCD display, long battery life, large and clear display
2. Press the count/pause button (PAUSE) to pause counting, and press the count/pause button again to resume counting

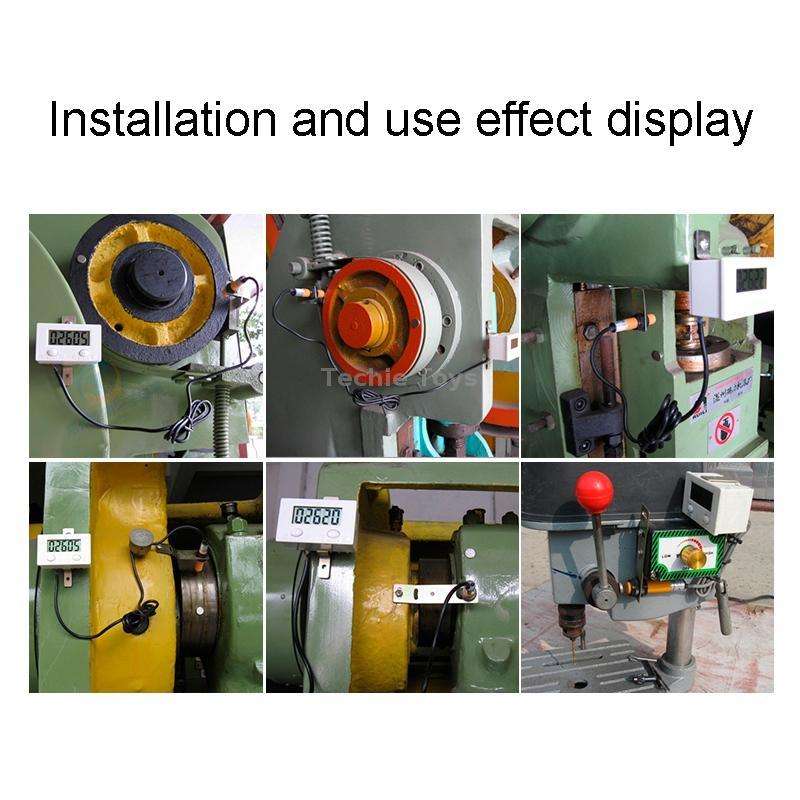

3. Using magnet induction, easy to install and accurate counting
4. Counting speed: 20 times/second

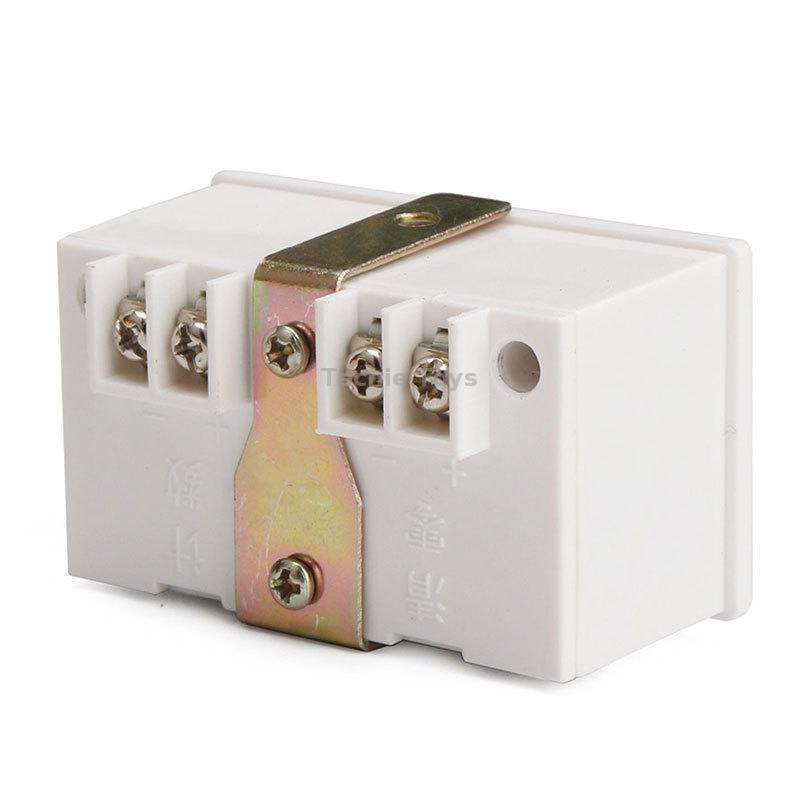

5. Clear: panel/external clear terminal dual-purpose
6. Use ordinary AA batteries, no external power supply is required (batteries are not included)
7. Anti-seismic design, effectively ensuring the stable and reliable operation of the system
8. No mechanical wear, reliable operation and long service life
9. Counting range: 00000-99999
10. Clear small pulse width: 0.1 seconds
11. Counting frequency: 20HZ
12. Counting small pulse width: 10mS
13. Dimensions: 64 x 38 x 38mm
14. Magnet induction proximity distance: about 10mm
15. Magnet induction distance: greater than or equal to 35mm
16. Open hole size: 61 x 36mm
