Overview: -5 standard display, 800x480 resolution , maximum HDMI resolution 1920X1080 is supported
-Capacitive touch screen, support 5 point touch maximum
-Built-in OSD menu adjustment function (adjustable Contrast/ Brightness/Saturation, etc.)
-It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi
-It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Xbox360, and so on
-Used as a Raspberry Pi display that supports Raspbian, Ubuntu, K0 di, Win10 IOT, single-touch, free drive
-Work as a PC monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version system: single-point touch), free drive
-Support HDMI audio output
-Passed CE, RoHS certification
Specifications: Size: 5.0 (inch)
Resolution: 800x480(dots), maximum HDMI resolution 1920X1080 is supported
Touch: 5 point capacitive touch
Audio output: support
Dimensions: 121.11x95.24(mm)
Weight: 248 (g)

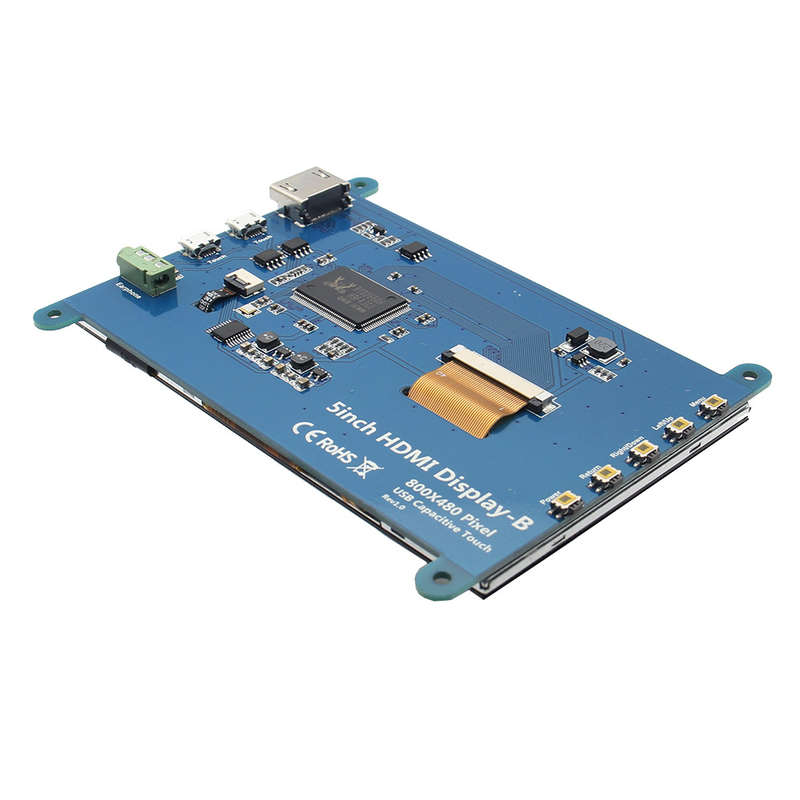

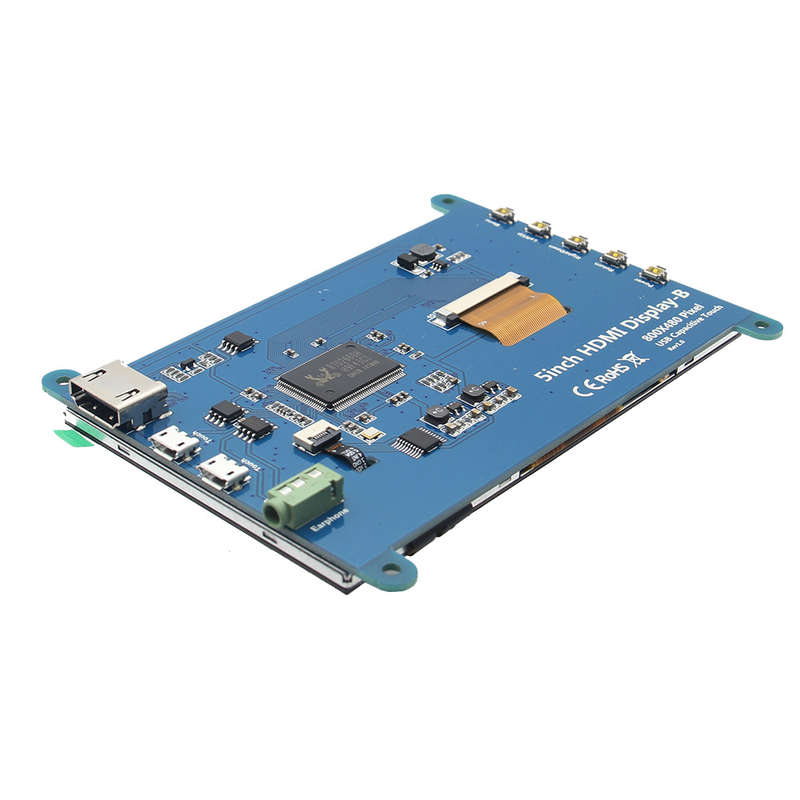

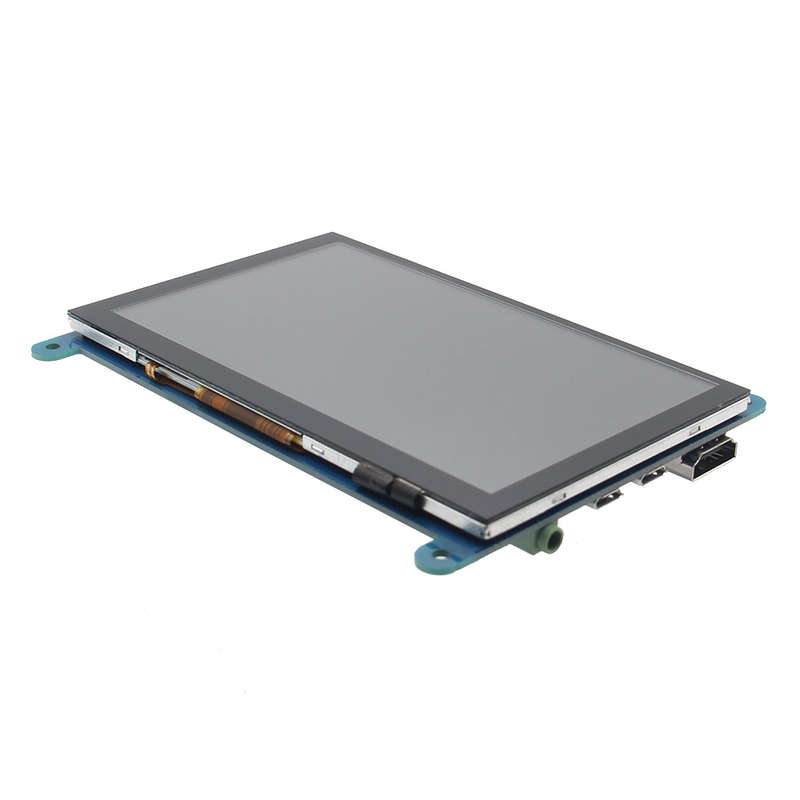

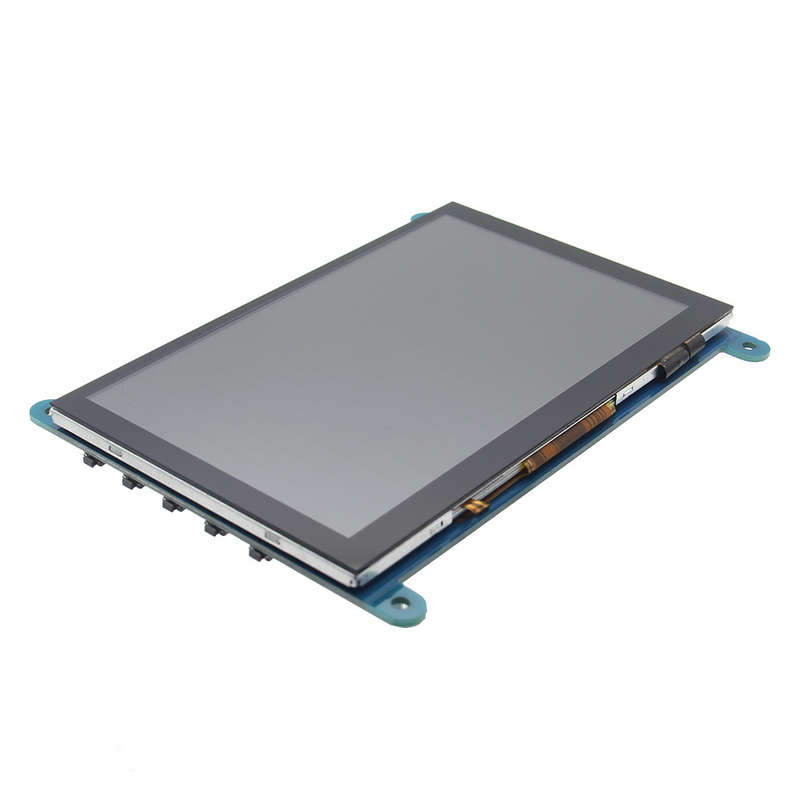

Hardware Description: Earphone: 3.5mm Audio output interface
Touch: USB connector(For power supply and touch output, the functions of the both are the same, can just use one of them)
Display: HDMI interface(For connecting motherboard and LCD monitor)
Power: Controls the backlight turned on and off to save power
Return: Return (Only valid in the OSD Settings menu)
Right/Down: Direction Right/Down (Backlight shortcut key0
Left/Up: Direction Left/Up(Backlight shortcut key)
Menu: Open the OSD / Select key(Only valid in the OSD Settings menu)

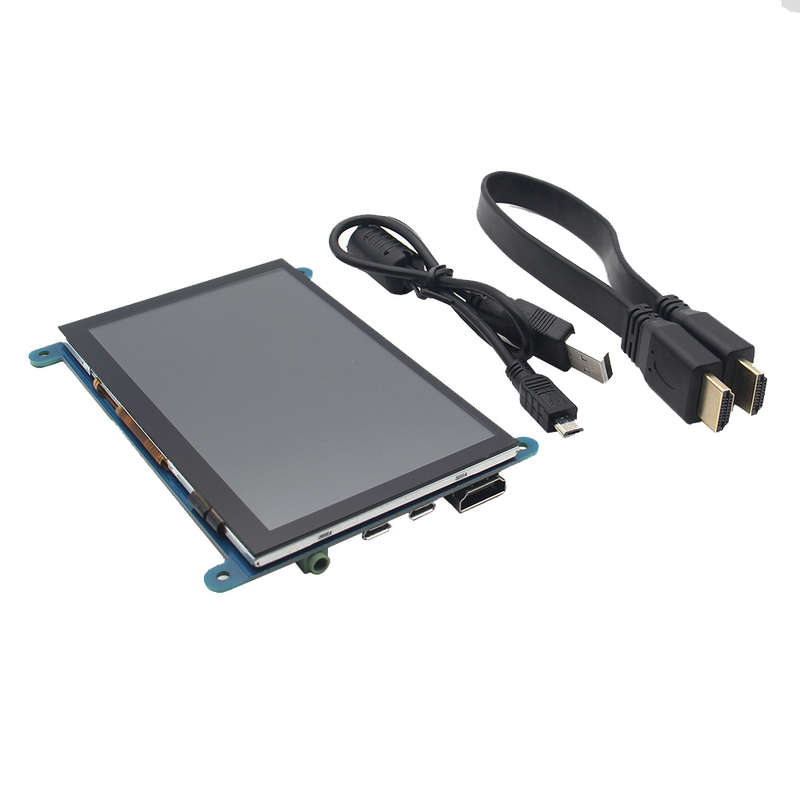

Packing Included: 1 x 5 inch HDMI Touch Screen (with install screws)
1 x HDMI Cable (about 31.5cm/12.40inch)
1 x USB Cable(about 42.5cm/16.73inch)
How to use with Raspbian/Ubuntu Mate/Win10 IoT Core System: Step 1: Install Raspbian official image
1) Download the latest image from the official download.
2) Install the system according to the official tutorial steps.
Step 2: modify the aconfig.txta After the programming of Step1 is completed, open the config.txt file of Micro SD Card root directory and add the following code at the end of the file, save and eject Micro SD Card safely:
max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_drive=1
hdmi_cvt 800 480 60 6 0 0 0
Step 3: Insert the Micro SD Card to Raspberry Pi, connect the Raspberry Pi and LCD by HDMI cable; connect USB cable to one of the four USB ports of Raspberry Pi, and connect the other end of the USB cable to the USB port of the LCD; then supply power to Raspberry Pi; after that if the display and touch both are OK, it means drive successfully (please use the full 2A for power supply).
How to rotate display direction: 1/ Add the statement in the aconfig.txta file (the aconfig.txta file is located in /boot):
display_rotate=1 #0: 0; 1: 90; 2: 180; 3: 270
2/ Restart the Raspberry Pi after saving.
sudo reboot
How to rotate Touch direction: After the display is rotated, the touch needs to be modified.
1/ Install libinput
sudo apt-get install xserver-xorg-input-libinput
2/ Create the xorg.conf. D directory in /etc/x11 / below (if the directory already exists, this will proceed directly to step 3)
sudo mkdir /etc/X11/xorg.conf.d
3/ Copy the file a40-libinput.confa to the directory you just created.
sudo cp /usr/share/X11/xorg.conf.d/40-libinput.conf /etc/X11/xorg.conf.d/
4/ Edit a/etc/X11/xorg.conf.d/40-libinput.confa
sudo nano /etc/X11/xorg.conf.d/40-libinput.conf
Find a part of the touchscreen, add the following statement inside, press Ctrl+X to exit, press Y to save.
Option CalibrationMatrix 0 1 0 -1 0 1 0 0 1
5/ Restar your Raspberry Pi
sudo reboot
Complete the above steps for a 90 degree rotation.
Note:
0 degrees of rotation parameters: Option CalibrationMatrix 1 0 0 0 1 0 0 0 1
90 degrees of rotation parameters: Option CalibrationMatrix 0 1 0 0-1 1 0 0 1
180 degrees of rotation parameters: Option CalibrationMatrix 1 0 0-1 1 0 0 1
270 degrees of rotation parameters: Option CalibrationMatrix 0-1 1 1 0 0 0 0 1
How to use as PC monitor: Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable
Connect the LCD`s USB Touch interface (Either of the two MicroUSB) to the USB port of the device
If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.
,
,
,
,
,
