Features:
- The backup camera screen kit can provide you with a clear rear view for your driving
- Full-color TFT LCD display, Low power consumption
- Parking rearview priority, The monitor will start up automatically, and synchronously display the video from the rearview camera when you're backing your car
- The monitor will close itself after backing. Scenes will cut to the rearview camera automatically while you're backing the car and change back to the original scenes after that
- Supports Car Camera, DVD, VCD, STB, Satellite receiver, and other video equipment
- Designed menu buttons, the brightness/contrast/hue/language is adjustable
- With 2 road video input port, white video cable connects to car rearview camera, the yellow one connects to DVD or VCD,
The white video cable is priority signal input when 2 road has signal input, the machine will prioritize the white end signal
- No Audio input or output

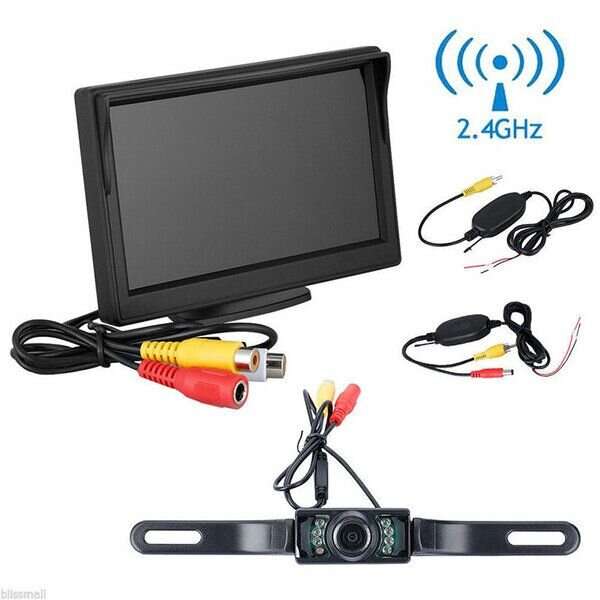

Transmitter and receiver:
- Take one minute get your camera to become a wireless camera
- Convert any reversing camera with a standard phono/RCA connector into a wireless camera with this universal transmitter and receiver kit
- Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end
- The transmitter also includes a handy pass-through for the power so you can connect it in line with your camera
- Wireless transmitter with male phono plug and male 3.5mm power plug for supplying power to the camera
- Wireless receiver with male phono plug for connection to monitor
- Connects to the rear-view camera and front video screen
- Fit all RCA composite video connections
Review Camera:
- Professional exterior waterproof car rearview camera
- Small compact size
- Low power consumption
- Low maintenance
- 7 infrared night vision LED
- Easy to install and operate
- Perfectly solve the issue of bad car rear view effect
Specifications:

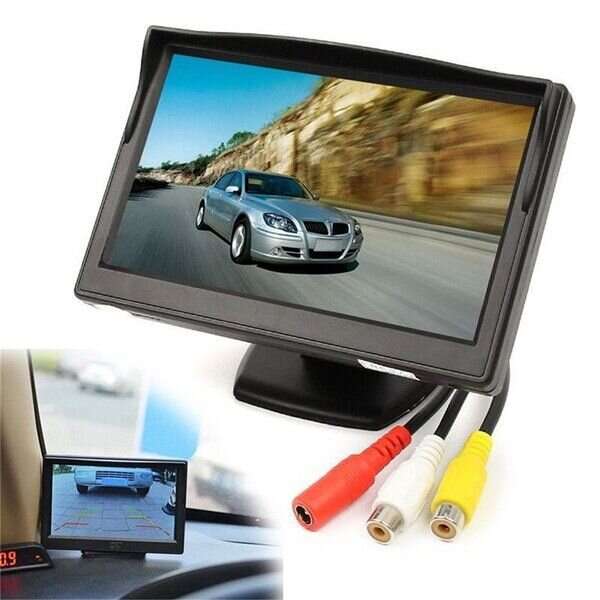

Monitor:
- Screen Dimension: 5 inch
- Resolution: 480 x 234
- Standard: PAL/NTSC
- Video in AV1/AV2
- Aspect Ratio: 16:9
- Power Supply: DC 12V
- Brightness: 300 nits
- Contrast: 250:1
- Color: Black(as pictures show)
- Housing Material: ABS
- Transmitter and receiver:
- Work Range: Up to about 10m(Hollowness)
- Power: DC 12V
- Transmitter/Receiver Cable Length:1.4m
Review Camera:
- Sensor: PC1030 1/3 Inch Color CMOS
- TV system: NTSC
- Effective pixels: 628 X 582 pixels
- Scanning System: 2:1 Interlace
- Sync System: Internal
- Resolution: 420 TV lines
- Lens Angle: 2.8mm/120- 1.8mm/170
- Sensor Area: 5.961mm x 4.276mm
- Video Output: 1.0 VP-P,75 OHM
- S/N Ratio: More than 48db
- Water-proof: IP67-IP68
- Minimum 111umination: 0.2Lux/F1.8(0Lux with LED)
- Power supply: DC 12V
- Operation Temperature: -20?-60?(RH95%Max.)
- Storage Temperature: -30?-60?(RH95%Max.)

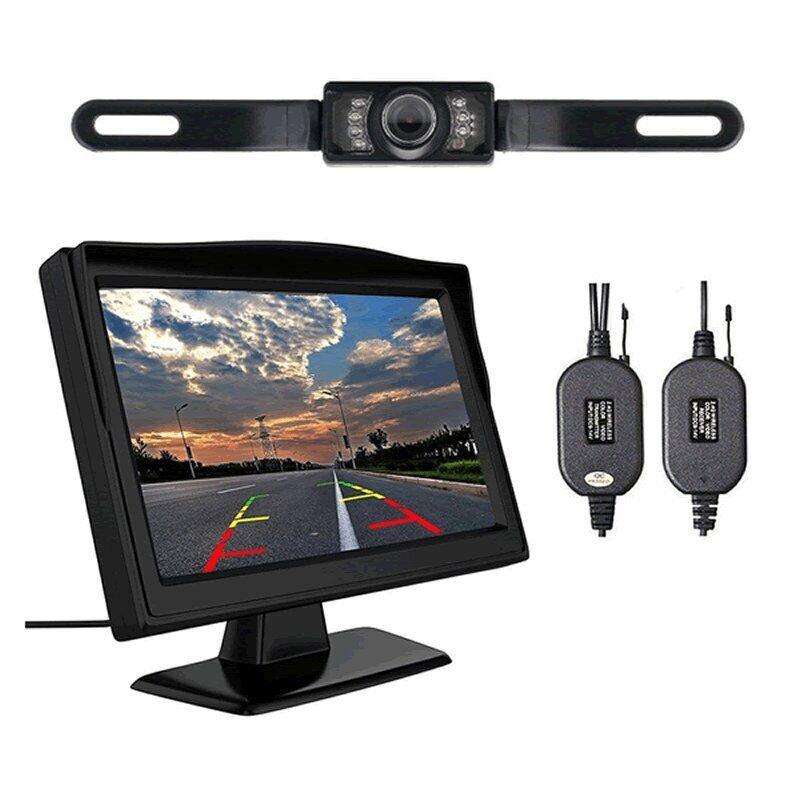

What's in the box
1x 5 Inch Monitor
1x 2.4G Wireless Audio Video AV Transmitter
1x 2.4G Wireless Audio Video AV Receiver
1x Car Rear View Camera
