Notice:1. It is Empty Frame Kit, not include FC,ESC, Motor, Propeller, VTX, Camera, Battery, etc.2. It Comes unassembled. Need build by buyers.

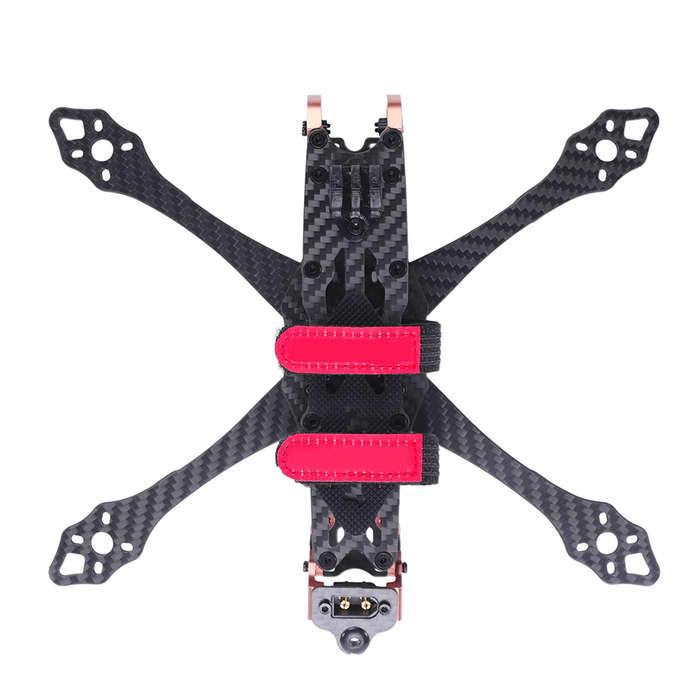

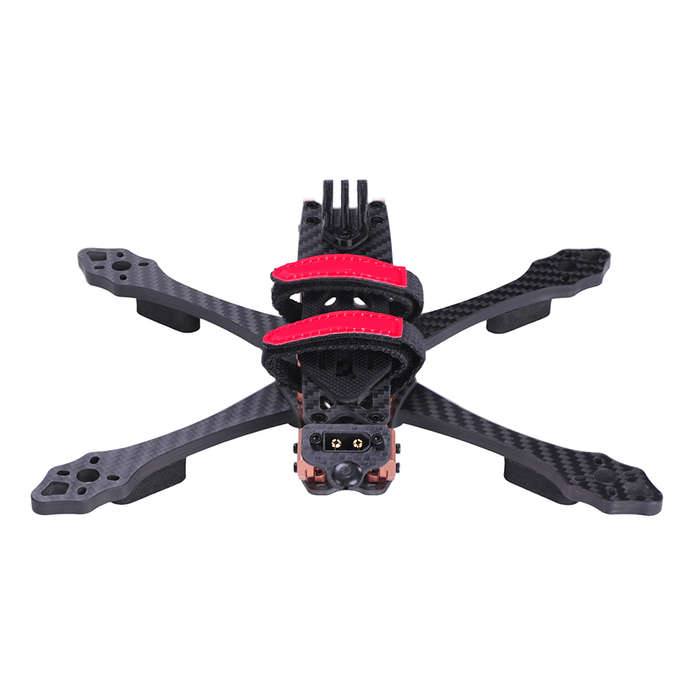

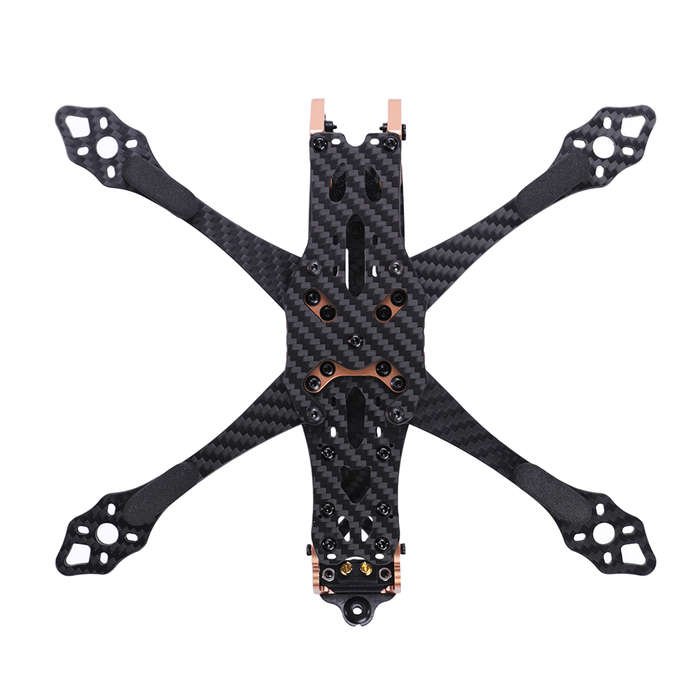

Specifications:
Model: LS220
Item Name: 5 Inch Frame Kit
Wheelbase: 220mm
Weight: about 168.4g
Arm Thickness: 6.0mm
Bottom Plate Thickness: 3.0mm
Top Plate Thickness: 2.0mm
Clamping Plate Thickness: 2.0mm
Flight Controller Mounting Hole: 20*20mm (M3), 30.5*30.5mm (M3)
VTX Mounting Hole: 20*20mm (M3), 25.5*25.5mm (M1.6)
Motor Mounting Hole: 16*16mm (M3), 19*19mm (M3)
Support Camera: 19/20mm
Structure: X-shaped Split
Aluminum Column Height: M3*23mm
Suitable for DJI O3, Snail, Nebula, Aurora, Vista Air Unit, etc.
Recommended Parts (For Reference Only, Not Include):
Motor:
