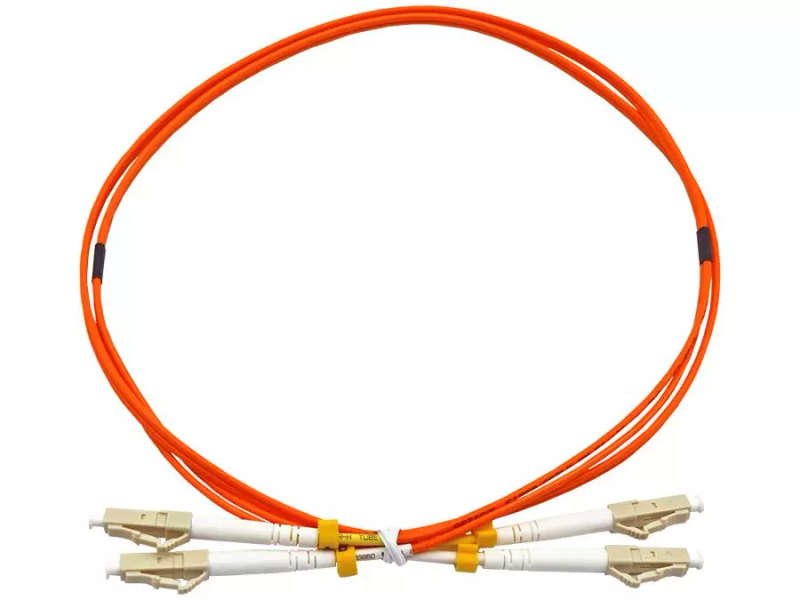

5 Meter Duplex MultiMode OM3 Fiber Cable | UPC LC-LC Fiber Cable | Fiber Patch Cord

5 Meter Duplex Multi-Mode OM3 Fiber Cable | UPC LC-LC Fiber Cable | Fiber Patch Cord

Multi-Mode fiber optic patch cables come with a 9 micron diameter glass core. With the cladding layer, they are 125 micron. Multi-Mode Om2 Cables should only be used with Multi-Mode SFP's and equipment and will not work on single mode sfp's.

Please see our guide at Fiber Optic Cables & SFP Compatibility for more information.

Specifications:

• Speed as per installed SFP or SFP+ e.g 1.25 Gbps or QSFP or QSFP+ 10 Gbit/s or 40 Gbit/s+
• Diameter  : 3mm
• 0.45mm steel strength member
• Duplex (Dual MultiMode and Dual LC Connectors)
• LC/UPC LC/UPC
• G.657A2, 2.0×3.0mmmm
• LSZH (Low Smoke, Zero Halogen)

Tensile Strength

Always take care when installing fiber cables to ensure not to break the fiber inside the cable by over-bending or twisting cables. These cables strengthened by the 0.45mm steel wires provide more than enough pulling strength to easily install these cables in difficult environments without breaking the cable.

G.657A2 Bend Ratio vs Other Specifications

These Fiber Cables Are Commonly used with the Fiber SFP's below

LC Fiber Connectors Explained in Detail

https://youtu.be/SJwbqnjo4BE

Single Mode Fiber Cable Usage and Instructional Video

https://youtu.be/7D5DXND3-TI
