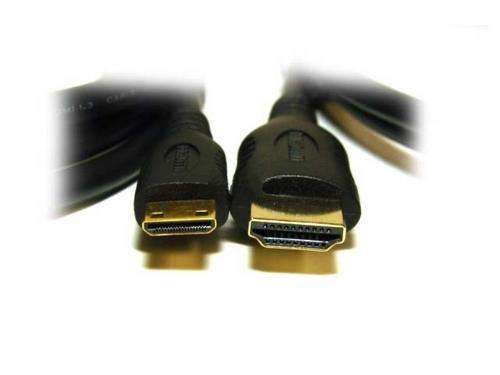

This cable will allow you to connect your portable device / HD Video Cameras with a mini-HDMI connector (Type C) to the standard HDMI connector (type A) found on most televisions / LCD's / Plasmas and A/V recievers.
Specifications & Features
Connector Type: HDMI male to HDMI male
Connector Finish: Gold
Gauge: 30AWG
# of conductors: 19
Supported Resolutions: 480i to 1080p
HDMI Certified: Yes
HDMI Spec: 1.3a
HDCP Compliant: Yes
CEC Compliant: Yes
ROHS Compliant: Yes
HDMI Mini (type C) connectors are the new (from Nov 2007) high definition standard for connecting HDMI equipped portable devices such as high definition camcorders / Video Cameras.
HDMI CABLES AND EQUIPMENT SHOULD NEVER BE CONNECTED / DISCONNECTED WHILE YOUR EQUIPMENT IS POWERED ON SINCE THE HDMI PORT CARRIES A LOW VOLTAGE BUT CAN CAUSE DAMAGE TO EQUIPMENT WHEN PLUGGED / UNPLUGGED WHILE POWERED ON. The sequence below should be followed when installing new cables or equipment between source/player and LCD / Plasma.
1.) Power-off all equipment (At the wall socket).
2.) Connect all Cables, Splitters, Switches, Extenders within HDMI Distribution Network.
3.) Power on all Splitters, Switches, Extenders within HDMI Distribution Network.
4.) Power on all LCD / Plasma's and set to HDMI input from HDMI Distribution Network.
5.) Power on Sources / Players (Sources negotiates HDCP Handshake via HDMI Network to displays which is set to HDMI input to respond to handshake).
