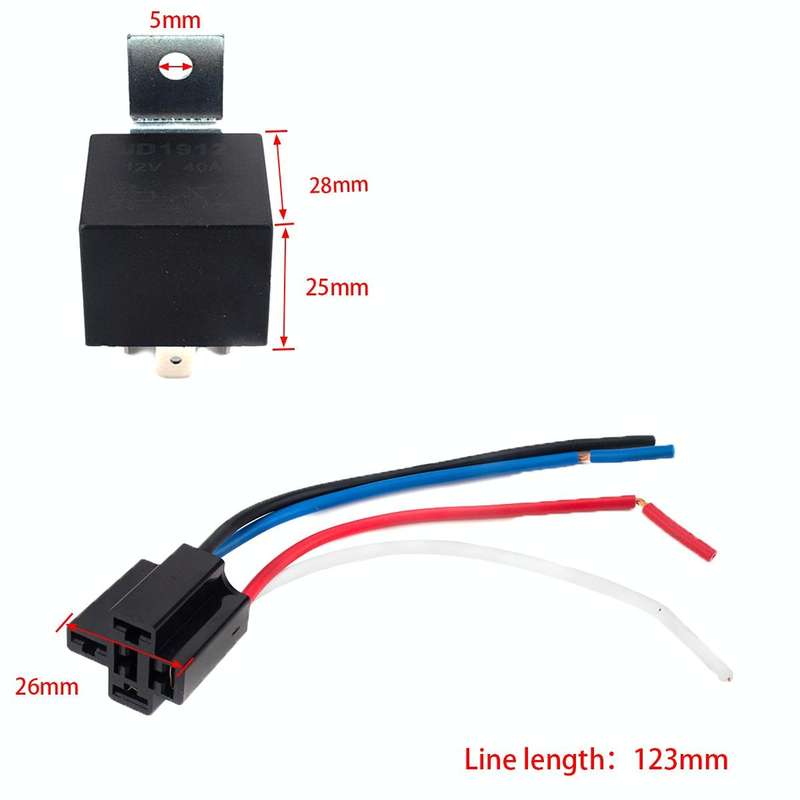

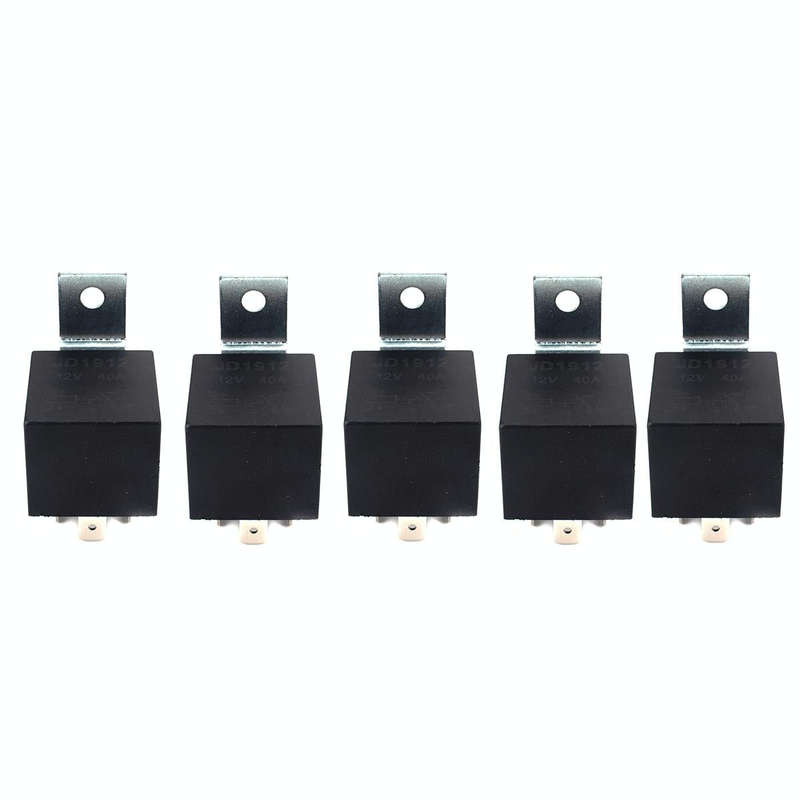

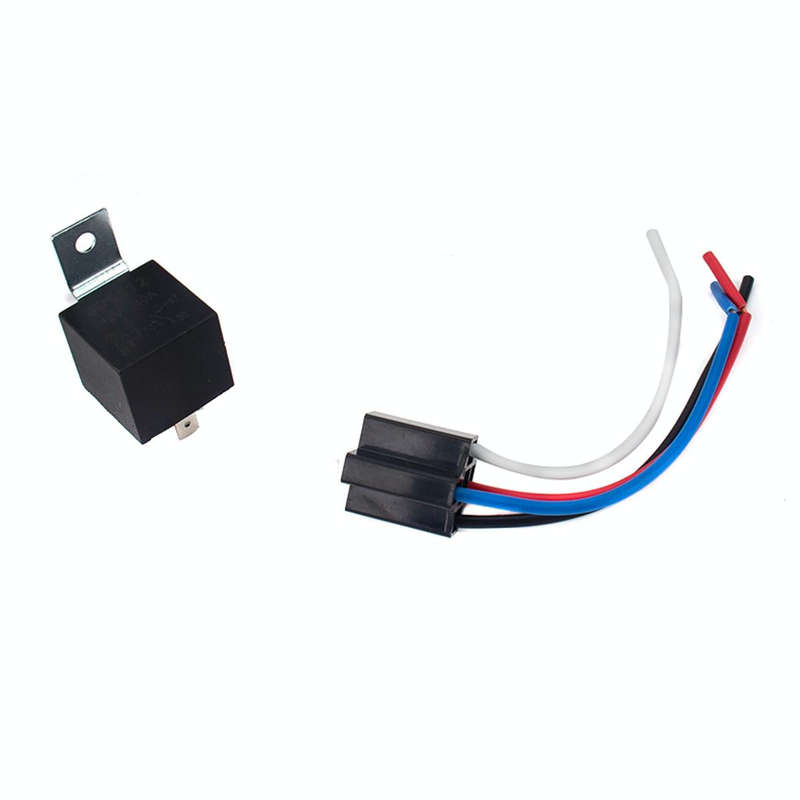

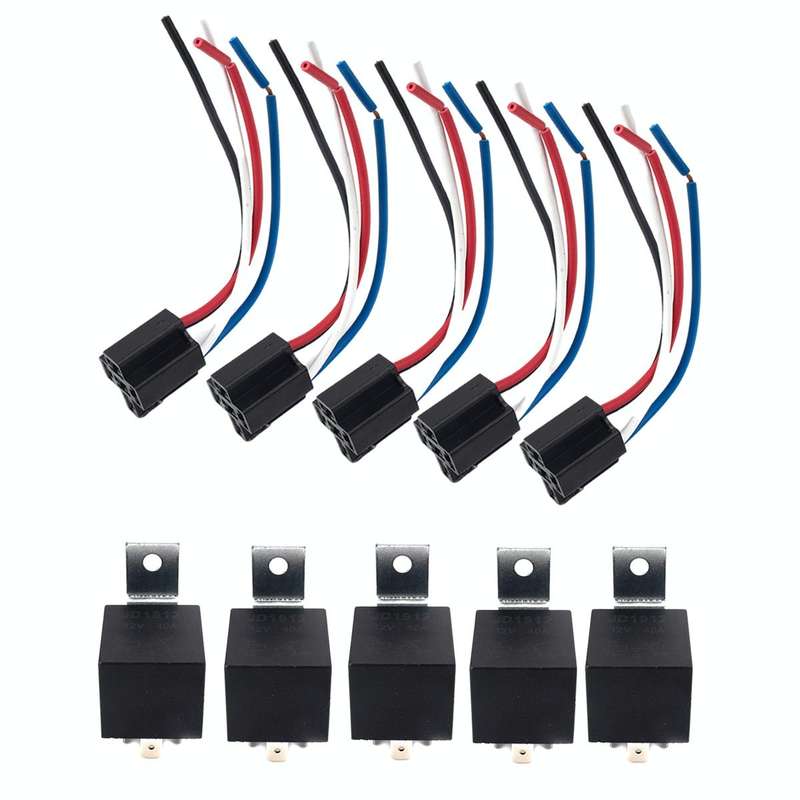

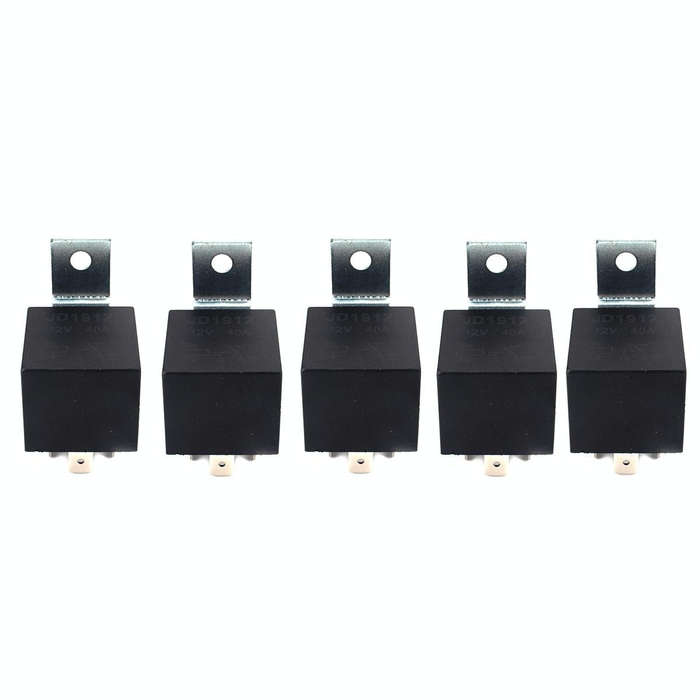

5 Pairs 12V Car Relay with Plum-shaped Waterproof Flame-retardant Socket

1. Large capacity, can switch 40 amps of current; silver alloy contacts have stronger conductivity and longer service life; all-copper coils and all-copper electromagnetic coils, which are more reliable and accurate.
2. Mainly plays the role of circuit conversion, automatic adjustment and safety protection
3. Scope of application: Applicable to most automotive, marine and off-road wiring projects and repairs.
4. Material: plastic + rubber + copper wire

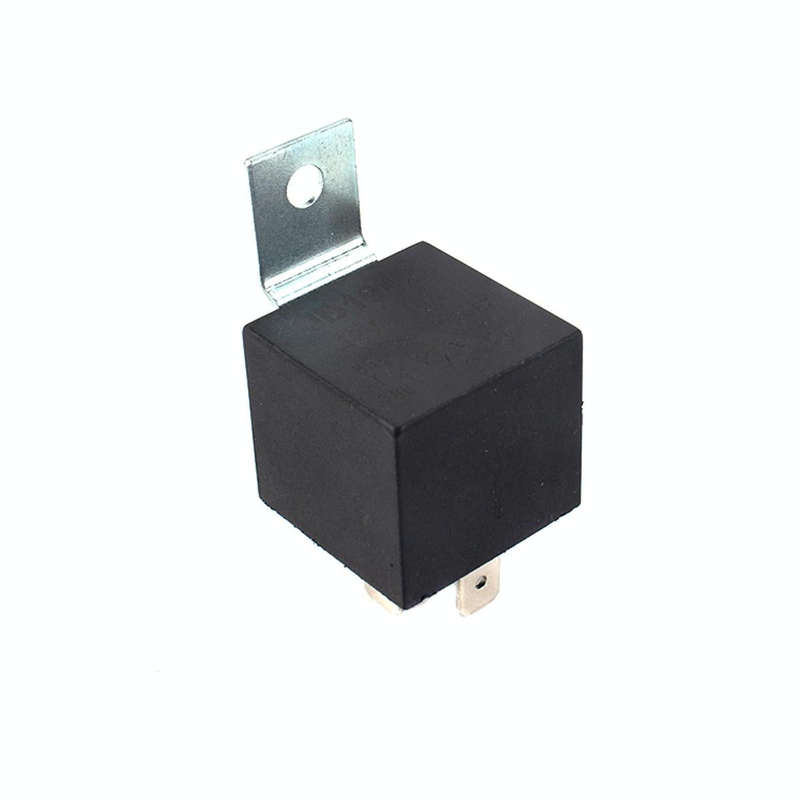

5. Relay Description:
Voltage: 12V
Operating temperature: -40 to+125
Contact capacity: 1a 40A 14VDC
Coil power: 1.7 (W)
Contact resistance: less than or equal to 50m ohms
Insulation resistance: greater than or equal to 1,00M ohms
Product life (times): electrical 1*100000/mechanical 1*10000000
Dielectric withstand voltage: 500VAC between open contacts/500VAC between coil contacts
Ambient temperature: -40~+125 degrees Celsius
Protection features: waterproof sealed type
6. Insert description:
85-ground
30 VDC
86-trigger
87-output N/O

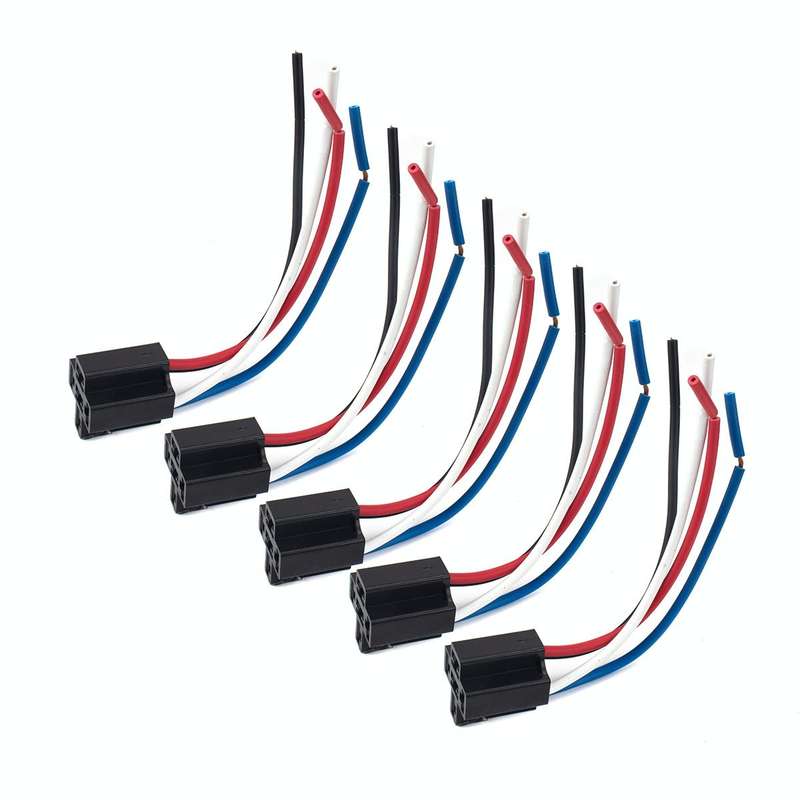

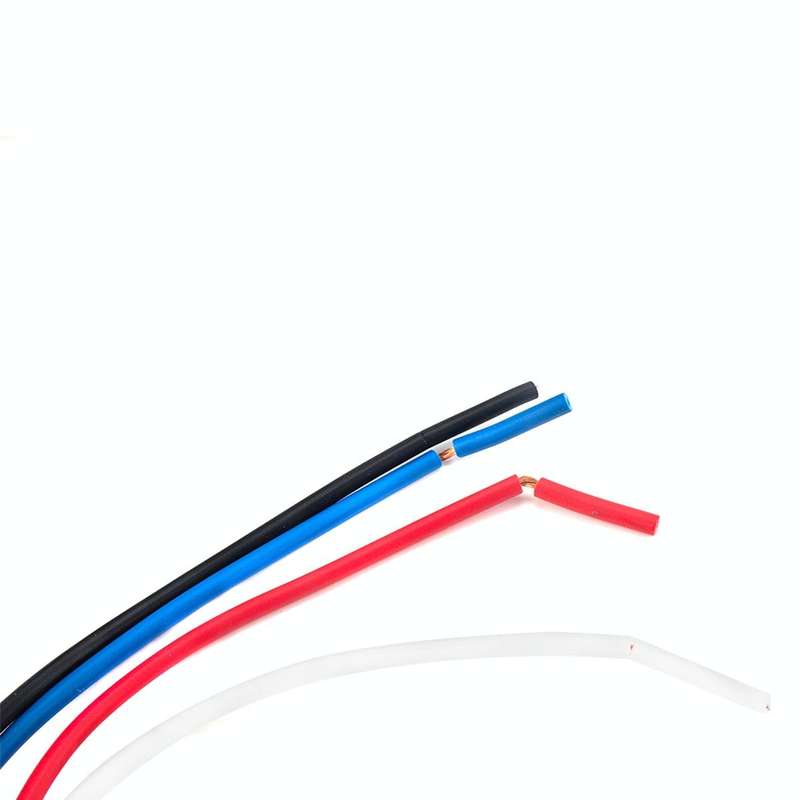

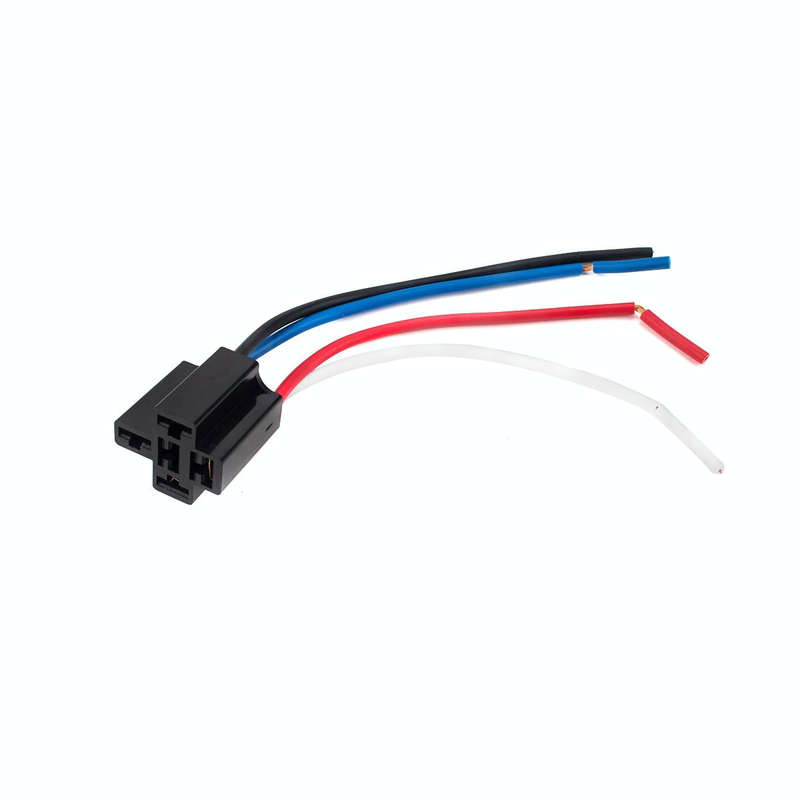

7. Flame retardant socket harness description:
12AWG tinned copper wire: Pin 87 blue
12AWG tinned copper wire: Pin 30 red
16AWG tinned copper wire: Pin 85 black
16AWG tinned copper wire: 86 pin white
