5 Port Gigabit Switch Networking

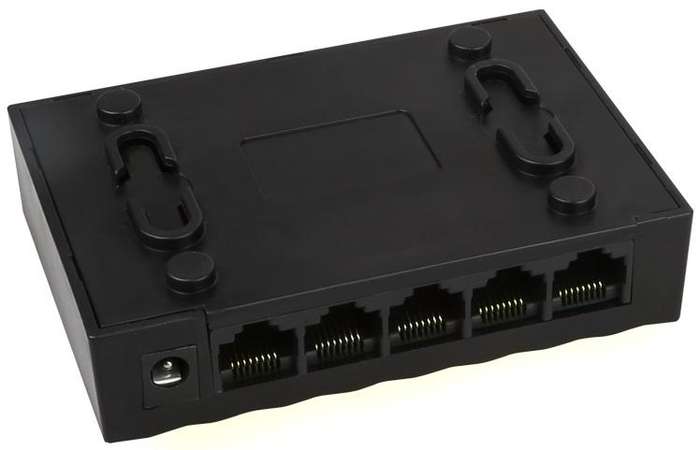

5 PORT GIGABIT SWITCH - TXE034

5-Ports 10/100/1000Mbps Unmanaged Ethernet Switch

Description

TXE217 Is a 5-Ports 10/100/1000Mbps Unmanaged Ethernet switch provides the Seamless Network Connection

Providing 5x 10/100/1000Mbps RJ45 Ports, and each Port has MDI/MDIX cross detection function

Using store and forward Technology, combined with dynamic Memory allocation

To ensure the effective allocation of Bandwidth to each Port

The Green Ethernet Technology (IEEE802.3az)

Can reduce the energy consumption at both ends of the Network Connection when the Switch is idle

TXE217 is easy to use without Configuration, Plug and Play

Hardware Specification

Model Name: TXE217

Chipset: EN8850DN

Standards and Protocols: IEEE802.3,IEEE802.3i, IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az

Interface : 5 x 10/100/1000Mbps Auto - Negotiation Ports

Network Media

10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)

100Base-Tx: UTP Category 5, 5e Cable (Maximum 100m

1000Base-T: UTP Category 5, 5e Cable (Maximum 100m)

Transfer Method: Store-And-Forward

MAC Address Table: 2K

Switching Capacity: 10Gbps

Packet Forwarding Rate: 7.44Mpps

Indicators

Per Device: Power (Green)

Per Port: Link/Activity(Green)

Power Supply DC:5V/0.55A

Dimensions ( W x D x H ): 100 x 67.5 x 25.6mm

Environment

Operating Temperature: 0 - 40

Storage Temperature: -40 - 70

Operating Humidity: 10% - 90% non-condensing

Storage Humidity: 5% - 90% non-condensing
