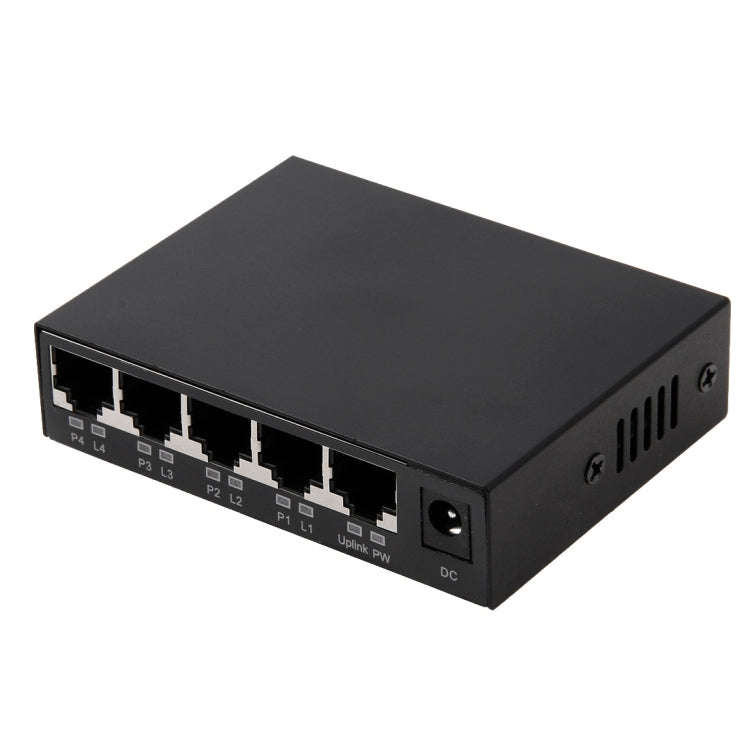

5 Ports 10/100Mbps POE Switch IEEE802.3af Power Over Ethernet Network Switch for IP Camera VoIP P...

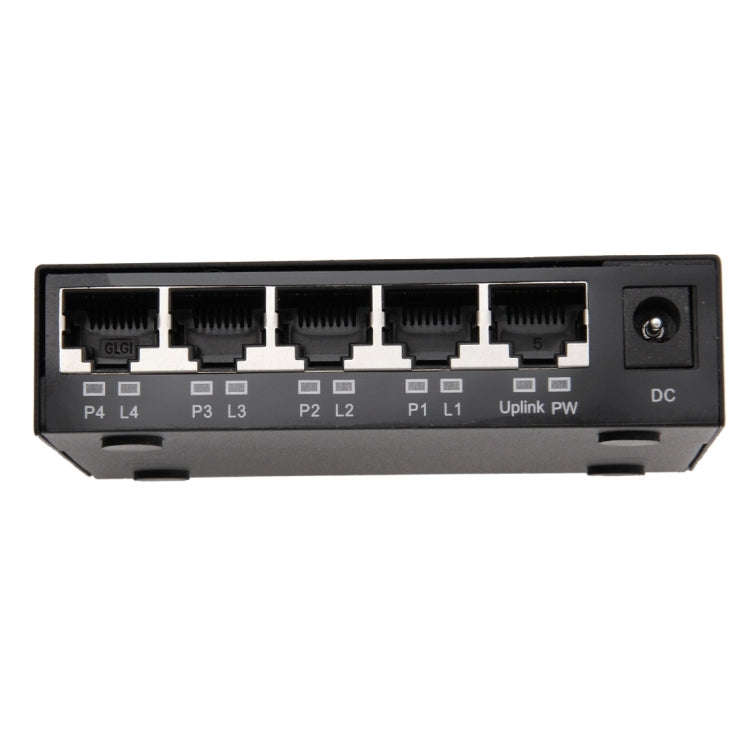

1. Port Description: 5-port 10M / 100M RJ45 ports (4 POE ports + 1 Uplink port)
2. Supported protocols:
- IEEE 802.3i, IEEE 802. 3u, IEEE802 3x
- IEEE 802.1af, IEEE 802.3af
3. Network Media:
- 10 BASE-T: Class 3, Class 4, Class 5 unshielded twisted pair (=100 meters)
- 100 BASE-TX: Class 5 and above unshielded twisted pair (=150 meters)

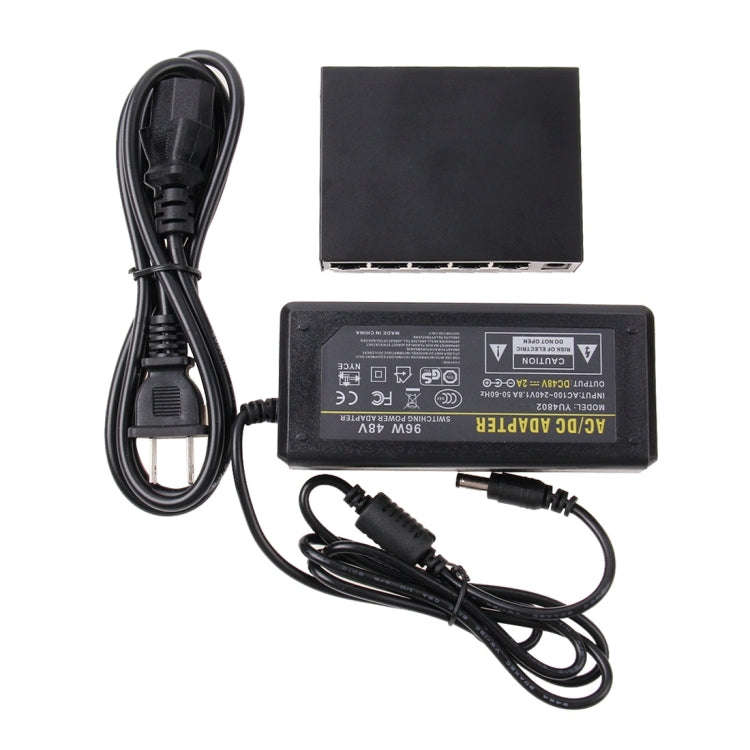

4. Power supply:
- POE Max power: 65W (port 1 to port 4)
- Output 48V, 1.25A
5. LED Indicator:
- 4 POE power lights (Blue)
- 4 data transmission lights (Green)
- 1 up-data display light (Green)
- 1 power indication light (Red)
6. Environment:
- Working Temperature: 0 ~ 40 degree
- Storage Temperature: -40 ~ 70 degree
- Working Humidity: 10% ~ 90% RH
- Storage Humidity: 5% ~ 90% RH
