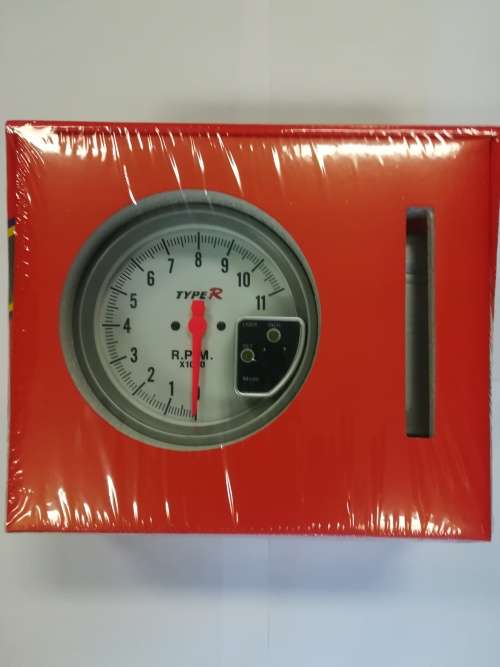

5" TYPE R HIGH PERFORMANCE TACHOMETER GAUGE WITH SHIFT LIGHT 11000 RPM

Universal 5" White Face Tachometer Tach Gauge with Shift Light 11000 RPM

Specification:

• 100% New !!!
• Material: Aluminium Alloy
• Diameter: about 5"
• Range: 0 - 11,000 RPM
• Voltage: 12V

Fitment:

• Universal ( NOT SUITABLE FOR diesel vehicles, ONLY FOR 12V petrol vehicles

Feature:

• Self Calibration Mode At Start-up
• Adjustable Setting For Shift Light
• Shift Light Included
• Works With 4, 6, 8 Cylinder Engines
• Stylish Design Giving Your vehicle An Aggressive Performance Racing Looks

Wiring Connection:

• Red - DC 12V
• Black - Ground
• Green - Signal Terminal

Mounting:

• The special design of the tachometer base allows for a variety of mounting possibilities. Attach the base using screws provided or use pop rivet tool.

Note: This tachometer operates on standard, factory electronic and high performance electronic racing ignitions.

Operation:

1. To set the RPM for the shift: push the button 'Mode' until the 'set' light is on then push either the up or down arrow button until the needle moves to the desired RPM. Next, push the mode button again the 'set' light is off to return to the standard tachometer function.
2. Push the 'Light' button to change the back light to 7 differene colors

Package Includes:

• 1 x 5" Tachometer Gauge with Shift Light
• 1 x Mount Clamp
• 2 x Screws
