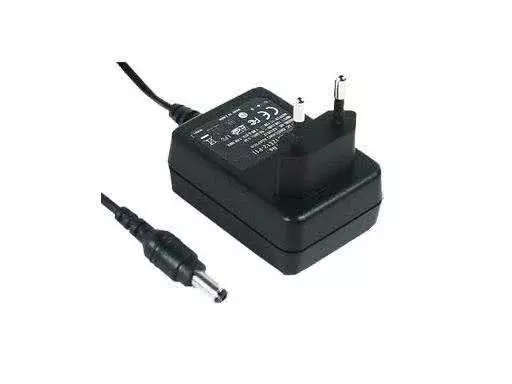

5 Volt, 3A AC/DC Power Adapter (Switched Mode Power Supply)

5 Volt, 3A AC/DC Power Adapter (Switched Mode Power Supply)

Power Adapter used to provide external power for HDMI Equipment, Switches, Extenders, Splitters or any type of 5 volt device up to the amount of amps listed below. Amp requirements can be more for any device e.g a 1A device can use a 2A or 3A power supply since device will only use the amount of amps needed but if < 5 volt power supply needed this power supply cannot be used. Voltages must match on equipment, but amps can be more on a power supply. Please check diameter on DC input on device and compare with adapter.

SPECIAL FEATURES

Universal AC input
Low output ripple
Short circuit protection
High efficiency
Built-in EMI filter
Over load protection

INPUT

Input range : 85 ~ 264 VAC
Input frequency : 47 ~ 63 Hz
Inrush current : 15A at 115VAC; 30A at 230VAC; cold start at 25
Input current : 1.5A Max
Leakage current : 0.5 mA at 50/60 Hz 264VAC input

OUTPUT

Rated output power : 15.0 Watts
DC Connector : 5.5mm OD & 2.1mm ID
Output voltage : 5V± 4% (4.80V V output 5.30V)
Output current : 3.0 A
Output load efficiency 80% at 100VAC full load; 80% at 264VAC full load
Max power : 15.0 Watts for convection
Adjustment range fixed
Hold-up time 30 ms at full load and 230 VAC nominal line
OL protection 96% to 104% above peak rating
Ripple & noise 200mV at rated load
Short current 100mA at 250 VAC rated load

ISOLATION

Input to output AC3.0 KV/1 min.

SAFETY APPROVAL

UL CCC CE

ENVIRONMENTAL

Operating temp : 0 to 50 ambient derate each output at 4.0% per degree from 50 to 60
Storage temp. - 40 to 85
Operating humidity 5% to 95% (non-condensing)
MTBF 100,000 hours at full load and 25 ambient conditions (demonstrated)
