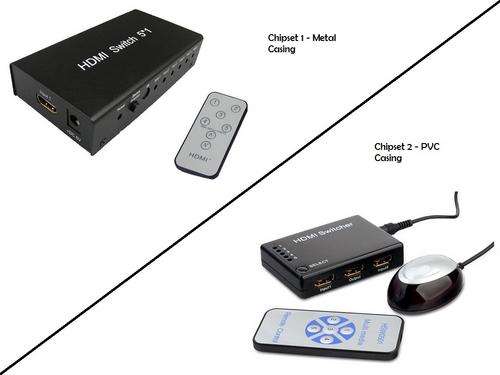

5 X 1 HDMI Switch with built-in Equalizer and Remote Control - HDCP 1.2, HDMI v1.3

Tested 100% with all common HDMI sources such as HDPVR, Apple TV Player, Mvix (HDMI Version), Sony Playstation 3, Microsoft Xbox 360, DVD players and Blu-ray Players on the SA market.

HDMI devices (any source / player, LCD, Plasma etc) have different results when inserting HDMI Repeater devices depending on the equipment you are using (a repeater device is any switch / splitter / extender etc). Please ensure to get confirmation from the manufacturer of your source / player / LCD that the specific player or LCD can communicate via a HDMI Repeater. Some source devices might not allow any HDMI device between itself and the LCD and will only function via a direct HDMI cable to the LCD. The opposite is also possible where the LCD needs a direct connection to the source / player and will not accept a regenerated signal from a HDMI Repeater device. Your display or source manufacturer can confirm if their product supports the functions required.

Features :

● Switches easily between up to five HDMI sources / players / gaming consoles.
● Supports Blu-Ray 24/50/60 fps / HD-DVD / xvYCC / Playstation 3 / Multichoice HDPVR / XBOX 360 and other HDMI source devices on the market.
● Extends the range of HDMI compliant device by equalizing and re-clocking the HDMI signal.
● Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved.
● HDMI Built-In Equalizer to allow longer HDMI cables lengths up to 15 Meter.
● HDCP Compliant to allow switching of HDCP devices.
● Discrete IR remote (included).
● Supports deep color 30bit, 36bit.
● Digital audio format, as DTS-HD/Dolby-TrueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD.
● Support signal retiming.
● Support input up to 15metres AWG24 HDMI 1.3 standard cable length.
● Output up to 20metres AWG24 cable length.
● Inputs can be switched with the IR remote control，also can be controlled by button.
● It can smartly jump over those input sources which are not connected.
● With the smart function of memory, it can come back to the last status / input when restarted or reconnected.
● No loss of quality.
● Installs in minutes.
● Need DC5V / 0.8A power supply. Included with purchase.

Specifications :

- Model HDSWM0501
- HDMI version : HDMI 1.3
- HDCP version : HDCP1.2
- Frames per Second : 24/50/60 fps.
- Resolutions: 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
- Support video color format : 24bit / 30-bit / 36-bit deep color
- Support audio format : DTS-HD / Dolby-TrueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD
- Max transmission bandwidth : 10.2Gbps
- Input/Output TMDS signal : 0.5~1.5Volts p-p
- Input/Output DDC signal : 5Volts p-p (TTL)
- Input cable distance : ≤15m HDMI AWG24
- Output cable distance : ≤20m AWG24 HDMI 1.3 standard cable
- Max working current : 800mA
- Power adapter format Input : AC (50HZ, 60HZ) 100V-240V; Output: DC5V / 0.8A
- Operating Temperature range : (-15 to +55℃)
- Operating Humidity range : 5 to 90%RH (No Condensation)
- Dimension (L x W x H) : 11.5 x 11.6 x 2.4 cm



Use high quality Surge Protection plugs on your equipment to ensure unstable power from electrical wall socket / electrical surges will have less chance of damaging your equipment. a UPS (Uninterruptible power supply) is highly recommended in all areas of your home or business where LCD's, players and HDMI Equipment is installed.
