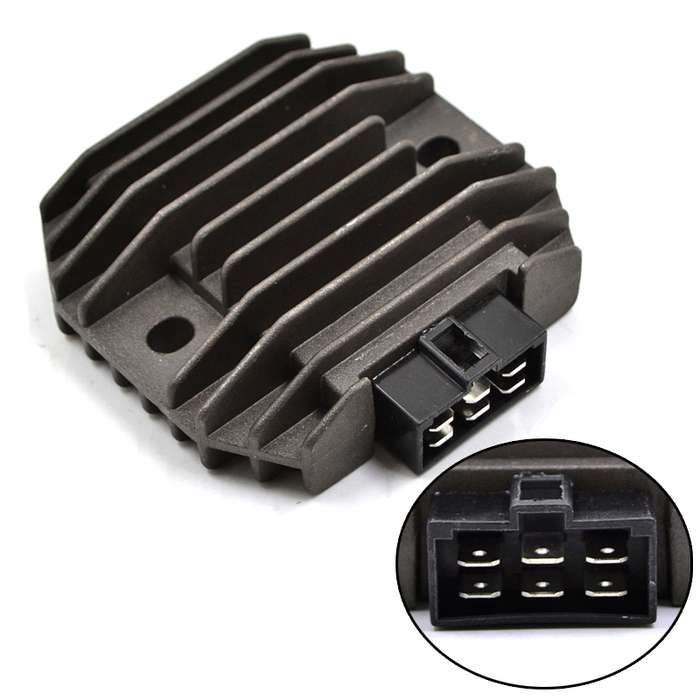

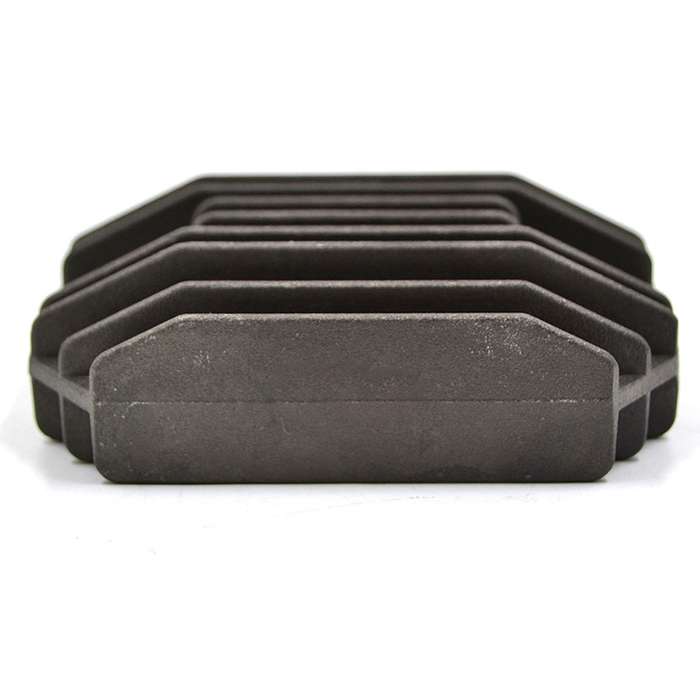

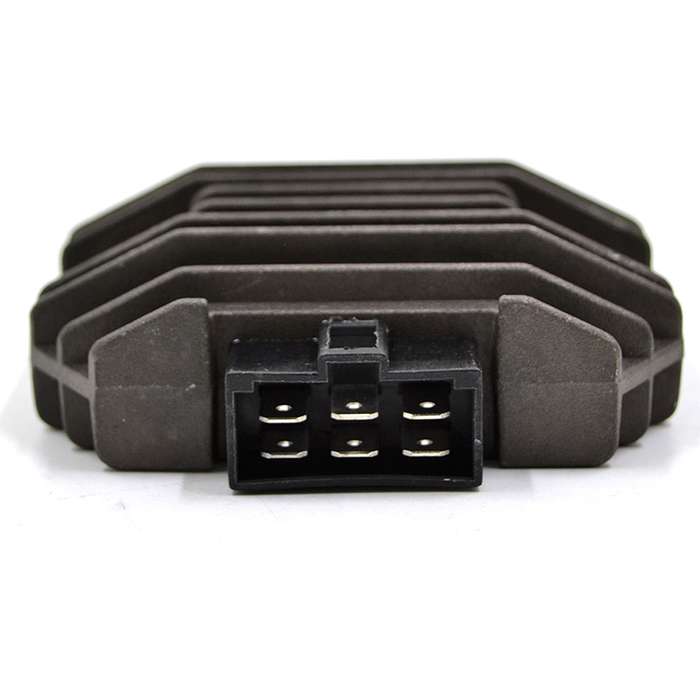

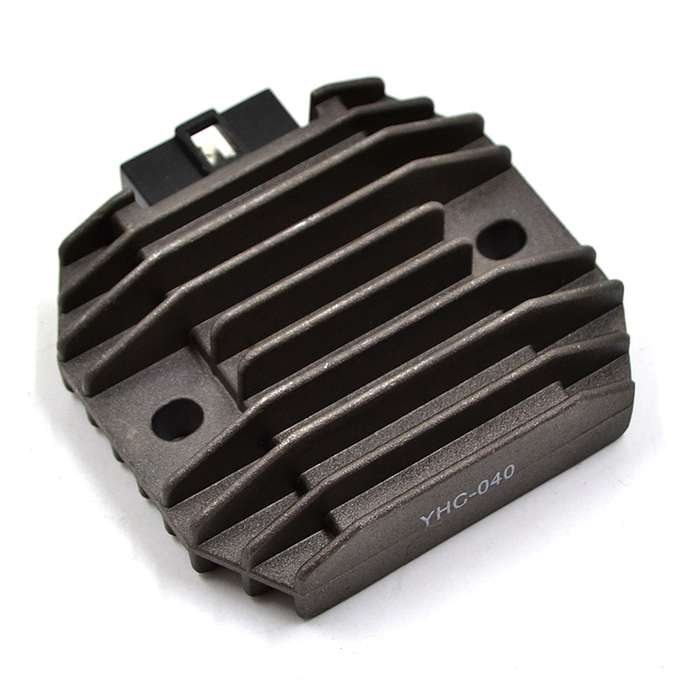

2013A.0 Motorcycle Rectifier M70121 M97348 21066-2056 21066-2070(Black Plug)

1. Output current: 20A
2. Output voltage: 14.5V
3. Weight: 250G

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. Do not press other wires between the rectifier and the frame
5. There should be a fuse protection device between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged and the voltage is too high and other electrical components are burned out

Applicable models:
For OEM: M97348 AM70121 AM126304 / 21066-2056 / 21066-2070
For JJohn ere 130 15A M70121
For John ere 160 15A M70121
For John ere 165 15A M70121
For John ere 170 15A M70121
For John ere 172 15A M70121
For John ere 175 15A M70121
For John ere 176 15A M70121
For John ere 180 15A M70121
For John ere 185 15A M70121
For John ere 186 15A M70121
For John ere 240 15A M70121
For John ere 242 15A M70121
For John ere 245 15A M70121
For Kawasaki FB 13A 18HP 460 21066-2056
For Kawasaki FB 15A 18HP 460 21066-2056
For Kawasaki FB 17A 18HP 460 21066-2056
For Kawasaki FC 17A 18HP 400 21066-2056
For Kawasaki FC 13A 18HP 450 21066-2056
For Kawasaki FC 13A 18HP 420 21066-2056
For Kawasaki FC 13A 18HP 400 21066-2056
For Kawasaki FC 13A 18HP 540 21066-2056
For Kawasaki FC 15A 18HP 400 21066-2056
For Kawasaki FC 15A 18HP 420 21066-2056
For Kawasaki FC 17A 18HP 420 21066-2056
For Kawasaki FC 15A 18HP 540 21066-2056
For Kawasaki FC 17A 18HP 540 21066-2056
For Kawasaki FC 15A 18HP 450 21066-2056
For Kawasaki FC 17A 18HP 450 21066-2056
For John ere 425 20A M97348
For John ere 445 20A M97348
For John ere F911 20A M97348
For John ere Gator 6x4 20A M97348
For Reemplazo Shin ngen SH626-12


TBD0544325101A
