500~6000MHz SMA RF Microstrip Power Splitter 500~6000MHz SMA RF Microstrip Power Splitter 500~6000MHz SMA RF Microstrip Power Splitter 500~6000MHz SMA RF Microstrip Power Splitter 500~6000MHz SMA RF Microstrip Power Splitter
500~6000MHz SMA RF Microstrip Power Splitter 500~6000MHz SMA RF Microstrip Power Splitter 500~6000MHz SMA RF Microstrip Power Splitter 500~6000MHz SMA RF Microstrip Power Splitter 500~6000MHz SMA RF Microstrip Power Splitter

500~6000MHz SMA RF Microstrip Power Splitter

10 available / new
R1,266.65
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD06027113
Bob Shop ID
639990688

1. Impedance: 50 Ohms
2. Phase balance: ±3 degrees
3. Surface treatment: sandblasting guide
4. Gold-plated joints, sandblasting process
5. Port connector: SMA-Female
6. Low insertion loss, low standing wave, high isolation
7. Working temperature: -40~+75 degrees celsius
8. Frequency range: 500~6000MHz
9. Amplitude balance: less than or equal to 0.3dB
10. Isolation: Typ.23dB / Min.20dB
11. Input standing wave: Typ. 1.25/Max.1.3
12. Output standing wave: Typ. 1.12 / Max.1.2
13. Withstand power: 30W for splitter; 2W for combiner
14. Insertion loss: less than or equal to 1.0dB (excluding theoretical loss of 3.0dB)

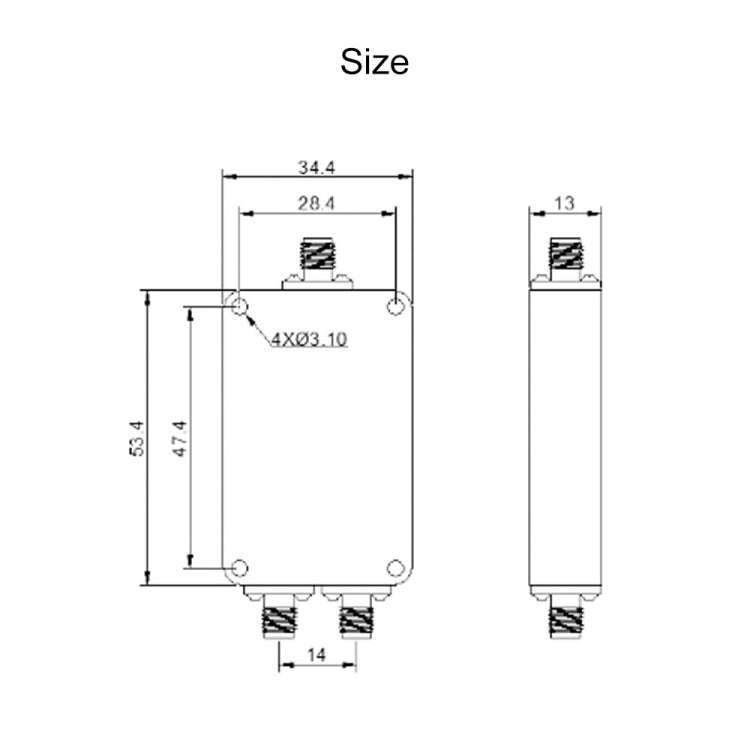

15. Dimensions: 53.4x34.4x13mm
16. Weight: 50g
Add to cart
