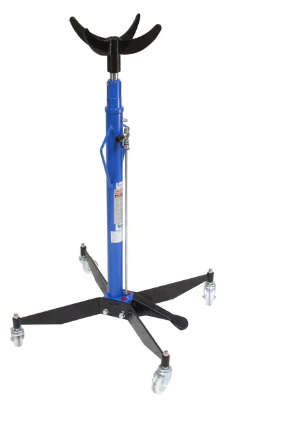

500 kg Transmission Jack - GJACKT103

Vehicle Transmission Jack Features:

• Purpose:
  • Designed for use in vehicle pits or underneath lifted vehicles
  • Simplifies the removal and transportation of heavy transmissions
  • Quick to get underweight when pumped up without a load (approx. 26-30 strokes)

Key Specifications:

• Capacity:

  • Maximum load capacity: 500 KG

• Height Range:

  • Minimum Height: 1,075 MM
  • Maximum Height: 1,890 MM

• Lift Stroke/Travel:

  • Stroke/Travel: 815 MM

• Lift Plate Dimensions:

  • Dimensions of lift plate: 365 MM

• Clearance:

  • Clearance height: 1,075 MM

• Handle Length:

  • Handle Length: 0 MM (Note: Handle length is unspecified, likely depends on the model)

Package Information:

• Package Dimensions:

  • Length: 110.00 CM
  • Width: 31.50 CM
  • Height: 21.50 CM

• Package Weight:

  • Total weight: 39.00 KG
