The perfect solution for load shedding!

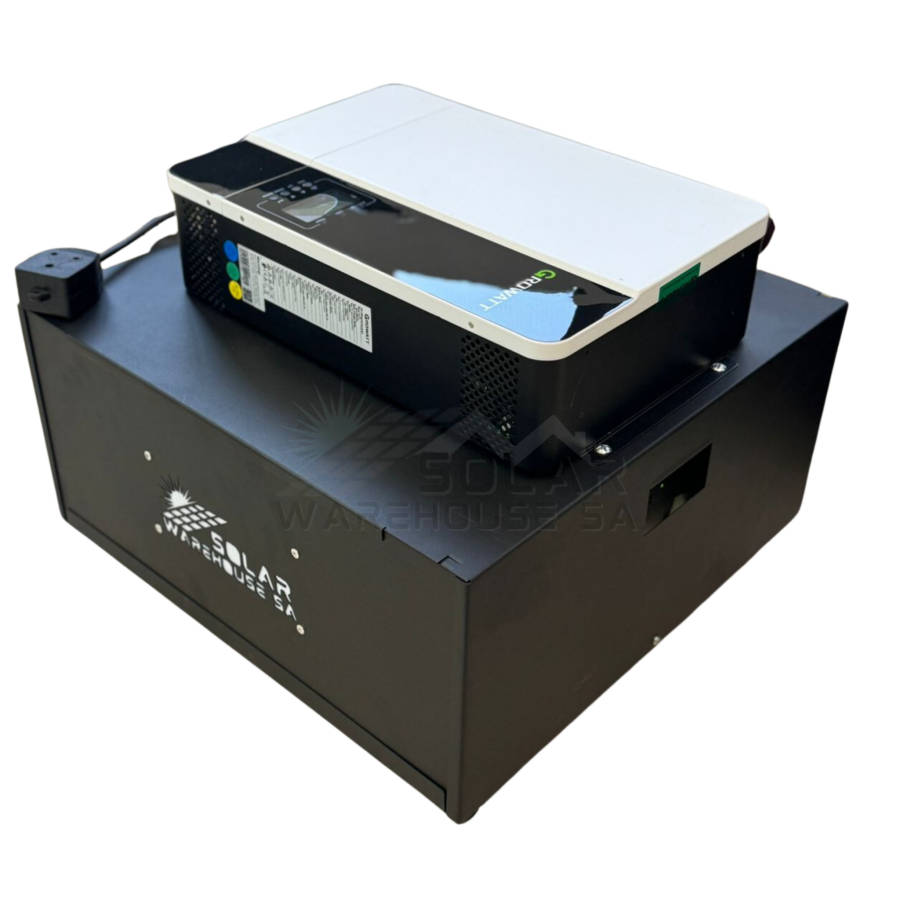

The all-in-one portable plug & play inverter battery trolley system (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.
PLEASE NOTE TROLLEYS TAKE 2-3 HOURS TO ASSEMBLE
What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready : Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 150w which is usually a TV, Wifi, Lights, etc. This portable system will last 45-50 Hours With a 100% DOD.
Inverter Specifications:
GROWATT SPF-5000 ES IS A 230(VAC) OUTPUT VOLTAGE OFF- GRID INVERTER FOR BACKUP POWER AND SELF CONSUMPTION APPLICATION, MAX PV INPUT VOLTAGE UP TO 450(VDC) . IT CAN ALSO WORK WITHOUT A BATTERY TO SAVE SYSTEM INVESTMENT COSTS.
Functions
- Integrated MPPT charger controller.
- Equalization charging function.
- Use with Batteries or without.
- Max PV input up to 450vDC.
- Choose grid or solar input priority.
- WIFI/GPRS remote monitoring.
- Parallel up to 6 inverters.
- PV & Grid Power combine if PV energy is insufficient for load.
- Flexible schedule for charging and discharging the batteries.
General Specifications
- Module: SPF 5000 ES.
- Battery voltage: 48vDC.
- Battery type: Lithium/Lead-acid.
Inverter Output [AC]
- Rated Power: 5000W.
- AC Voltage Regulation (Battery): 230VAC ± 5%.
- Surge Power: 10000VA for 5 sec.
- Efficiency (Peak): 93%.
- Waveform: Pure sine wave.
- Transfer Time: 10ms 20ms.
Solar Charger
- Maximum PV Array Power: 6000W.
- MPPT Range @ Operating Voltage: 120VDC 430VDC.
- Maximum PV Array Open Circuit Voltage: 450vDC.
- Maximum Solar Charge Current: 100 A.
AC Charger
- AC Charge Current: 80A.
- AC Input Voltage: 230 VAC.
- Selectable Voltage Range: 230 VAC.
- Frequency Range : 50 Hz/60 Hz (Auto sensing).
Physical
- Protection degree: IP20.
- Height: 330 x 485 x 135mm.
- Weight: 12 kg
Battery Specifications:
The BX51100 is more than just a robust energy storage solution; it's a testament to reliability. Its advanced BMS ensures the safety and longevity of the battery, and with 5.12kWh of capacity, it provides you with the perfect power backup. Whether it's for residential or commercial use, the Dyness solar battery BX51100 is the key to uninterrupted, sustainable energy.
Key Specifications:
- Capacity: 5.12kWh
- Battery Type: Lithium-ion
- Continuous Output Power
- Battery Management System (BMS): Yes
- Protection Features: Overcharging, Over-discharging, Short Circuit Protection
- Cycle Life: Ensuring a long-lasting energy solution
The Power of Independence
With the BX51100, you're in control of your energy needs. You can use it for residential or commercial purposes, and it can be easily integrated into your existing solar panel system. The Dyness BX51100 is designed for simplicity and efficiency, ensuring you have the energy you need, when you need it.
Battery Specifications:
The BX51100 is more than just a robust energy storage solution; it's a testament to reliability. Its advanced BMS ensures the safety and longevity of the battery, and with 5.12kWh of capacity, it provides you with the perfect power backup. Whether it's for residential or commercial use, the Dyness solar battery BX51100 is the key to uninterrupted, sustainable energy.
Key Specifications:
- Capacity: 5.12kWh
- Battery Type: Lithium-ion
- Continuous Output Power
- Battery Management System (BMS): Yes
- Protection Features: Overcharging, Over-discharging, Short Circuit Protection
- Cycle Life: Ensuring a long-lasting energy solution
The Power of Independence
With the BX51100, you're in control of your energy needs. You can use it for residential or commercial purposes, and it can be easily integrated into your existing solar panel system. The Dyness BX51100 is designed for simplicity and efficiency, ensuring you have the energy you need, when you need it.
50cm (H) x 61 (L) x 61 (W)
67KG
This all-in-one system Includes:
1x GROWATT HYBRID INVERTER 48V 5KW INVERTER PURE SINE WAVE (INCLUDING WIFI) SPF 5000 ES + Wifi Dongle (2 Years Warranty)
1x DYNESS Lithium Battery BX51100(51.2V100AH 5.12KWH) (10 Years Warranty)
1x Battery Fuse
1x 1m Power Cable With Wall Plug
1x 1m Cable With Power Socket
1x Heavy Duty Steel Portable Box With Lock Wheels & Handles
